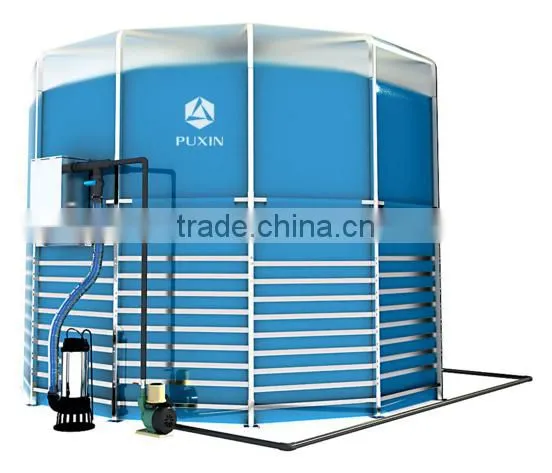

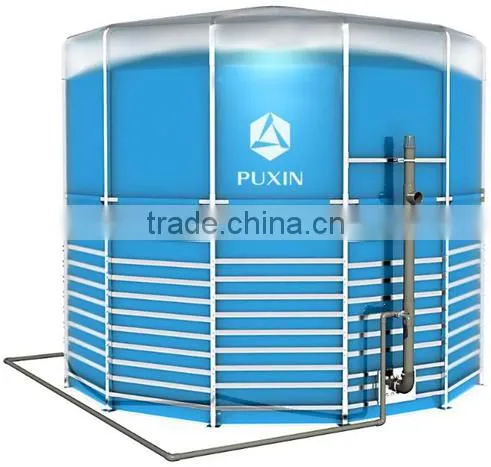

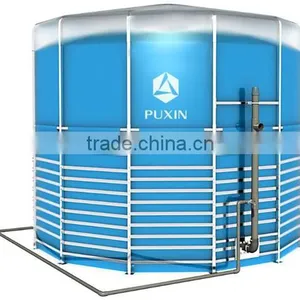

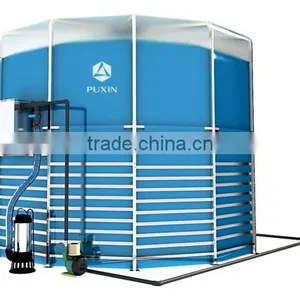

Chinese Portable Biogas Plant for Livestock Farms
The food waste biogas system makes you treat your organic waste locally, use the biogas for cooking and electricity, feed your garden with nutritious liquid fertilizer, save your energy bill and garbage disposal fee! It is the ultimate solution for families, restaurants , hotels and resorts to treat their organic wastes (food waste, sewage sludge and animal manure etc.)
PUXIN 15m3 Biogas Plant Inlet
PUXIN 15m3 Biogas Plant Outlet
The Dismension
Light 15m3 Biogas Plant (for hotel use)
Light 15m3 Biogas Plant (for hotel use)
Packing:
Delivery:
Depends on the order
Technical Data:
Waste Treatment Capacity:
1. Biogas Pump
Charging method: Only 220 AC
Frequency: 50Hz, Power: 15 W,
Flow≥36 L/min,
Max pressure( kgf/cm2)>0.22,
Max Vacuum (-kpa) -22,
Load flow≥12 (100 meter) L/min
2. Biogas Fittings
30 m Φ9 mm PVC soft pipe,
1 pc pressure gauge 16 KPa,
1 pc desulpharize 1 KG,
5 pcs valves, etc.
3. Stove double burner
Heat load: 2.8KW,
Biogas consumption rate: 0.9m3/h,
Heat efficiency : >57%,
Fire maker efficiency : >98%,
Gas entrance pressure: 1600Pa,
Gross weight: 5kgs,
Outside dimension: 730×410×130mm
4. Biogas rice cooker
Rating Power: 1.0KW,
Biogas consumption: 129g/h(about0.14m3/h),
Rating pressure: 1600Pa,
Largest rice quantity: 1.6kgs,
Net weight: 3.0kgs,
Gross weight: 3.5kgs,
Outside dimension: 305×305×335mm,
5. Water heater JSD14
Heat flux: 14 KW,
Hot water production rate(at 25 ℃):7 L/min,
Rated gas pressure: 1600 pa,
Water pressure: 0.025-0.8 Mpa,
Biogas consumption: 2 - 3 m³/hour
6. Biogas lamp with electronic switch
Gas consumption: 0.07 m³/h,
Dimension: 310×300×260 mm /8 sets,
Weight: 0.5 kg/set.
7. Room heater
Biogas consumption rate: 0.3m3/h,
Gross weight: 21kgs/20sets,
Outside dimension: 590×590×410mm,
It could keep warmth for a room about 6 - 9 m2,
Diameter of the room heater: 28cm
8. Flow meter
Normal flow rate: 2.5 m3/h,
Maximum flow rate: 4 m3/h,
Minimum flow rate: 0.025 m3/h,
Maximum working pressure: 10 Kpa,
310×300×260mm /4 sets, 1.5kg/set
1. Can the biogas plant be easily dismantled ?
The answer is yes. The biogas bag is connected the biogas plant with the screw, so it can be dismantled very easy.
2. Can the biogas be compressed?
No, the small biogas plant can not compress the biogas, but the larger one is ok.
Shenzhen Puxin Technology Co. Ltd
Shenzhen Puxin Technology Co. Ltd.was founded in November 2001, the company’s business scope is new energy and environmental protection. The company's main business:
1. Designing and constructing large and medium-sized biogas projects.
2. Developing, manufacturing and selling related products needed to build family size biogas system.
3. Developing, manufacturing and selling new style small size biogas digesters.
