Low cost and big size PUXIN biogas plant for electricity generation

Specifications

1. Waste treatment company
2. 10 year over this field
3. No smell leak out and safe
4. High gas production rate

PUXIN Medium Size Bio Gas Plant

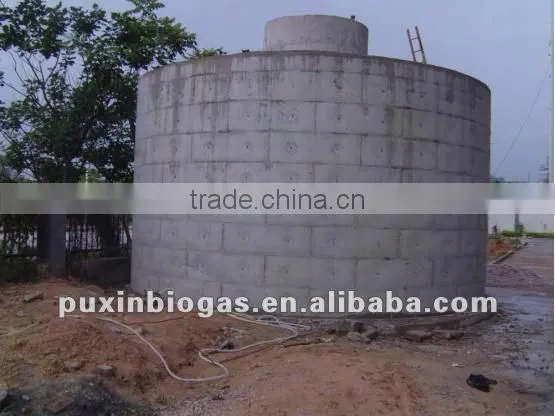

Puxin 100m3 biogas plants is composed of a concrete digester and several glass fibre reinforced plastic gas-holders.

The digester is 100 m3 of capacity. The gasholder is 1.6 m of diameter, 0.75 m of height and 1.2 m3 of capacity.

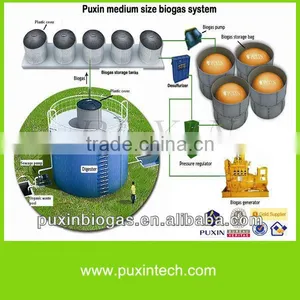

Puxin medium size biogas system is composed of one or a group of Puxin 100m3 size biogas plants, the feeding system, the biogas purify system (the desulphurization tower and the dehydration tower), the biogas storage and delivery system, biogas appliances or generators.





Features:

(1) High reliable: no mechanic movement, no mechanic failures.

(2) Wide range of application. The plant can be built both under and above ground. The plant is suitable to handle both liquids (sewage, human and animal manure) and solids (grass, straw, and food waste).

(3) Low maintenance cost: very few workers are needed, almost no maintenance for rust prevention and mechanic repair are needed.

(4) Durable: The concrete digester which can stand strong acid and alkali can last over 40 years, the glass fibre gas holder can last over 10 years and it is replaceable when it is worn out or broken.







Range of Apply:

(1) Disposal of sewage sludge for waste water disposal stations.

(2) Disposal of wastes for medium size livestock farms.

(3) Disposal of sewage and food waste for departments, factories and schools etc.

(4) Disposal of waste water and solid waste for food processing plants and brewing plants.



Below lists the main equipment and products needed to build the biogas plant system



Product	Description&specification	Remark
100-400M3 STEEL MOULD WITH OUTER AND NECK	This equipment is mainly composed of hundreds of steel moulding boards and the support shelf. The product is applied to construct the concrete digester of the Puxin 50, 75 , 100, 200 and 400 cubic meter biogas digester.	Reusable
STEEL MOULD NECK	This equipment is mainly composed of around 30 steel moulding boards It is applied to construct the concrete digester neck of the PUXIN medium and large size biogas digester, and the concrete tank for hydraulic pressure gas holder.	Reusable
GLASS FIBRE PLASTIC GAS-COLLECTER1.2M3	This product is one of the main components of the PUXIN medium size and large size biogas digester. It is used to collect the biogas produced in the digester.
Glass fibre reinforced plastic cover	This product is used to cover the digester.
GAS STORAGE BAG 50M3	Materials:Red Mud reinforced plastics Thickness 1.0mm.Size: dia.3.3*6M
GAS PUMP(1.5KW, 30-50M3/H)	380V, 1.5KW, 30M3/H 10KPA
Desulfurization Tower (PX-250L,1000L)	Suitable flow rate 400-1600M3/Day
Dehydration Tower (PX-250L)	Suitable flow rate: Less than 4000M3/Day
WATER PUMP 3KW	Flow: 40M3/h, head: 13meters, Power:3KW
SEWAGE PUMP 5.5KW	Flow: 110M3/h, head: 10meters, Power:5.5KW
