Specifications
Steel mould for 100m3 biogas digester1. reused for many times
2. easy to assemble and dissemble
3.10years experience
Detailed Product Description
1. Can be built by customer 2. High quality and low cost 3. Low maintenance cost 4. Durable
PUXIN 100m3 biogas digester for electricity
PUXIN medium and large size biogas plant system is composed of one or a group of 100-400 m3 biogas digesters formed into a unit, the pipe system, the gas purify system and the appliances or electricity generator.

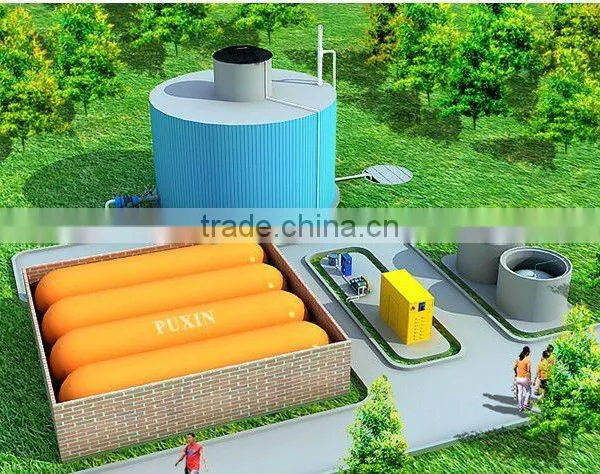

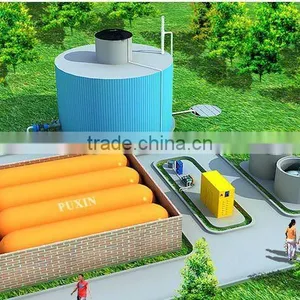

A 100m3 PUXIN biogas system
(1). Pretreatment tank (2). Feeding pump (3). Digester (4). Storage pool (5). Biogas storage bags (6). Biogas generator (7). Desulfurizer and dehydrator (8). Biogas storage tank (9). Biogas pump

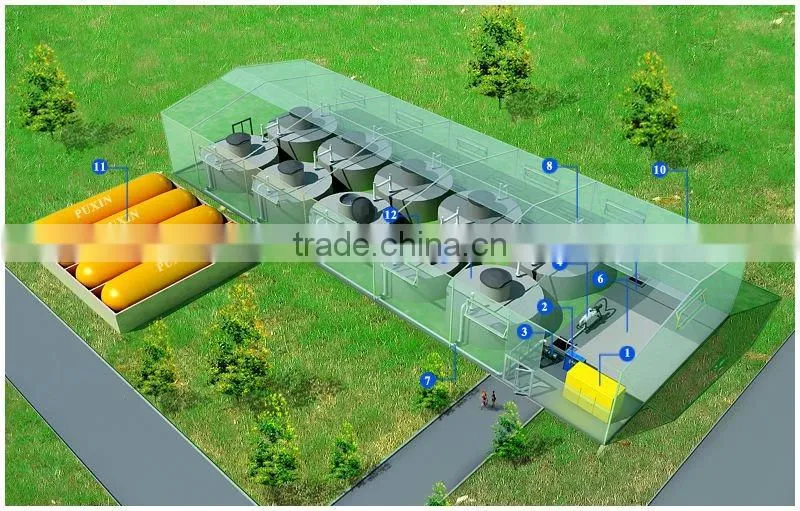

A 1000m3 PUXIN biogas system designed for cold region
(1). Biogas generator (2). Desulfurizer and dehydrator (3). Feeding pump (4). Dehydrator (5). Pretreatment tank (6). slurry storage pool (7). outlet pipe (8). inlet pipe (9). Digester (10). green house (11). Biogas storage bag
The medium and large size biogas plant system is mainly applied to the livestock (pig, cow, etc.) farms to treat the wastes, or applied to treat organic wastes (food waste, grass, etc.) in large quantity.
Below are photos that show the construction processes of 100m3 PUXIN biogas digester:
For medium and large size biogas plant system we design the biogas system, sell all the equipment and products needed to build the biogas system to our customers, train the technicians for them, and our customers build the biogas system themselves.
Below lists the main equipment and products needed to build the biogas plant system
Product |
Description&specification |
Remark |
|
100-400M3 STEEL MOULD WITH OUTER AND NECK |
This equipment is mainly composed of hundreds of steel moulding boards and the support shelf. The product is applied to construct the concrete digester of the Puxin 50, 75 , 100, 200 and 400 cubic meter biogas digester. |
Reusable |
|
STEEL MOULD NECK |
This equipment is mainly composed of around 30 steel moulding boards It is applied to construct the concrete digester neck of the PUXIN medium and large size biogas digester, and the concrete tank for hydraulic pressure gas holder. |
Reusable |
|
GLASS FIBRE PLASTIC GAS-COLLECTER1.2M3 |
This product is one of the main components of the PUXIN medium size and large size biogas digester. It is used to collect the biogas produced in the digester. |
|
|
Glass fibre reinforced plastic cover |
This product is used to cover the digester. |
|
|
GAS STORAGE BAG 50M3 |
Materials:Red Mud reinforced plastics Thickness 1.0mm.Size: dia.3.3*6M |
|
|
GAS PUMP(1.5KW, 30-50M3/H) |
380V, 1.5KW, 30M3/H 10KPA |
|
|
Desulfurization Tower (PX-250L,1000L) |
Suitable flow rate 400-1600M3/Day
|
|
|
Dehydration Tower (PX-250L) |
Suitable flow rate: Less than 4000M3/Day
|
|
|
WATER PUMP 3KW |
Flow: 40M3/h, head: 13meters, Power:3KW |
|
|
SEWAGE PUMP 5.5KW |
Flow: 110M3/h, head: 10meters, Power:5.5KW |
