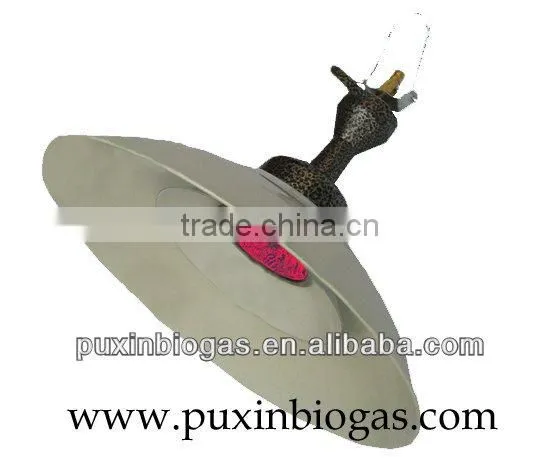

High Quality Biogas Room Heater

High Quality Biogas Room Heater thumbnail-1
High Quality Biogas Room Heater photo-1
US$ 70 - 90 MOQ: 1 Set
Key Specifications
Get Latest Price
Gas Heater Type:
Convector Heater
Installation:
Wall Mounted
Gas Type:
Other, biogas
Contact Supplier Request Quote Chat Now
Shenzhen Puxin Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Gas Heater Type Convector Heater
Installation Wall Mounted
Gas Type Other, biogas
Use Bathroom, Bedroom, Living Room
Function Adjustable Thermostat, Deodorization, Tip-Over Protection, Ventilation
Model Number px
Brand Name PUXIN
Place of Origin Guangdong, China

Specifications

1. cheap
2, enegy-saving
3. environment-friendly
4.easy to install
5. easy to maintain

   Biogas romm heater



Suitable gas: Biogas



Gas consumption rate: 0.3m3/h



Gross weight: 21kgs/20SETS



Outside dimension: 590×590×410mm



a heater could keep warmth for a room about six to nine square meters,







1, In winter, when switched to “winter”, all burners of WSCT will open to enhance fire.

2, In summer, when switched to “summer”, half burners of WSCT will open to weaken fire for saving energy.

flue jointer

Shell

Winter and summer conversion switch

 Gas Knob

 Water Knob



Battery Box



Gas Inlet Jointer



Heat exchanger



Ignition needle



Pulse igniter

sluice valve electromagnetic valve

gas valve

water inlet

Drainage valve

coupled valve

micro switch

hot water outlet

Dimension



Model

a

b

c

d

e

f











6L

290

80

165

430

120

470

7L

305

80

170

500

150

540

8L

320

110

175

520

175

550

9L

340

110

250

600

180

650

10L

335

120

250

600

170

630

12L

365

110

240

600

185

700

(Notice: the picture of user’s manual might be little bit different from product. We keep improving the appearance of products. If updated, you will not be noticed. Thanks.)





 Technique Parameter





 Product Name



 Domestic biogas water heaters





Model



JSD12-

JSD13-

JSD14-

JSD16-

JSD18-

JSD20-

JSD24-

Heat flux



12KW

13KW

14KW

16KW

18KW

20KW

24KW



Hot water production rate

( at 25°C)



6L/min

6.5/min

7L/min

8L/min

9L/min

10L/min

12L/min



Rated gas pressure



PLG

Natural Gas

Artifical coal gas

Biogas

2800pa

2000pa

1000pa

1600pa



Ignition



 Automatic ignition by electric pulse





Exhaust



Natural exhaust flue

flue diameter

JSD12·JSD13·JSD14

JSD16·JSD18

JSD20

JSD24

90

100

110

120

Water pressure



0.025—0.8 MPS



Connection pipe





Gas pipe



Diameter 9.5mm

(Inner diameter) Diameter9.5 mm







Cold water pipe

 fitted short pipe or G1/2″steel pipe



Hot water pipe

fitted long pip orG1/2 steel pipe
