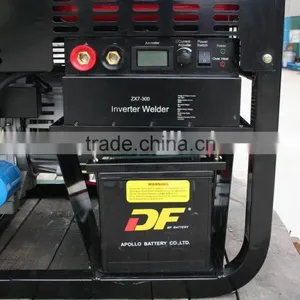

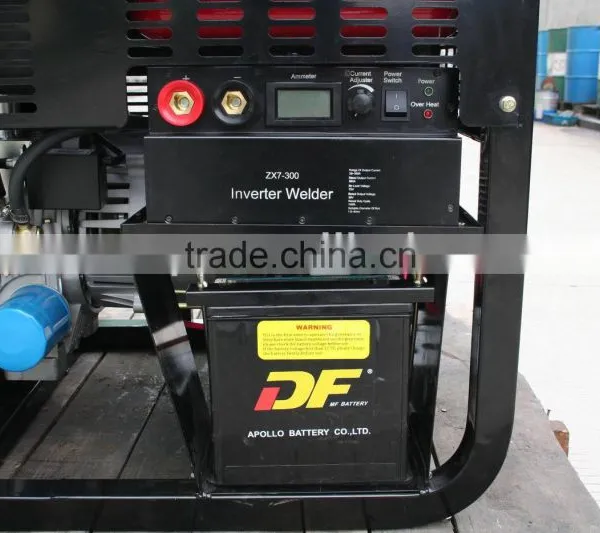

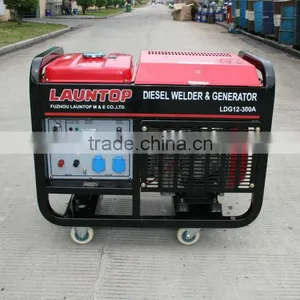

300A Welding Generator
Negotiable
MOQ: 5 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
LAUNTOP
Model Number:
LDG12-300A
Payment & Shipping
Payment Methods:
Port of Shipment:
FUZHOU
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Welding Gasoline GeneratorNegotiableMOQ: 30 Sets -
Diesel Welding GeneratorNegotiableMOQ: 30 Sets
-
5kw Welding Gasoline GeneratorUS$ 70 - 300MOQ: 30 Units
-
Diesel Welding Generator AlternatorUS$ 400 - 600MOQ: 30 Sets
-
LDW180ARE Air-cooled 4-stroke Welding Diesel Generator 4085340US$ 500 - 500MOQ: 30 Pieces
Place of Origin
Fujian, China
Brand Name
LAUNTOP
Model Number
LDG12-300A
Voltage
110-240V
Weight
180
Usage
welding
Specifications
300A welding generator is powered by twin cylinder engine.300A welding generator 300A welding generator 300A welding generator 300A welding generator
Product Description
| Model | LDG12-300A | LT11000ME-300A | |
| Genset Specificaton | |||
| Voltage(V) | 220/230/240 | ||
| Frequency(Hz) | 50/60 | 50 | 60 |
| Rated AC output(kW) | 10/10 | 8.5 | 9.5 |
| Current rateing(A) | 45.5/43.5/41.7 | 38.6/37/35.4 | 43.2/41.3/39.6 |
| Phase | Single | ||
| Power factor(cosφ) | 1.0 | ||
| Excitation manner | selfexcited constant voltage with AVR | ||
| Connect way | spindle rigid joint | ||
| Insulation class | F | ||
| Number of poles | 2 | ||
| Fuel consumption(g/kW.h) | ≤399 | ≤493 | |
| Fuel tank capacity(L) | 25 | ||
| Continious working hour(h) | >5 | ||
| Noise level(dB(A)/7m) | 80 | 76 | |
| Type | Open frame | ||
| Dimension(mm) | 900×568×798 | 930×555×710 | |
| N.W.(kg) | 175 | 145 | |
| Welder specification | |||
| Non-load welding voltage(V) | 70-75 | ||
| Striking current(A) | 300 | ||
| Welding operational voltage(V) | 28-35 | ||
| Duty cycle | 60% | ||
| Adjustable welding current(A) | 50-300 | ||
| Applicable electrode(mm) | φ2.0-φ6.0 | ||
| Output mode | DC inverter | ||
| Engine Specification | |||
| Engine model | LA290F | LT620F | |
| Type | Twin-cylinder,air cooled,direct injection,4-stroke diesel engine | Twin-cylinder,air cooled,4-stroke OHV gasoline engine | |
| Displacement(L) | 0.954 | 0.614 | |
| Bore×Stroke(mm) | 90×75 | 77×66 | |
| Compression rate | 19:1 | 8.3:1 | |
| Rated AC output of engine(kW) | 12.5 | 10.8/12.5 | |
| Engine speed(r/min) | 3000/3600 | ||
| Lubricating system | feed and splash lubrication | ||
| Oil model | 10W-30 or 15W-40 | ||
| Oil capacity(L) | 3.0 | 1.5 | |
| Starting systerm | Electric start | ||
| Accumulator capacity(V-Ah) | 12V-36Ah | 12V/18Ah | |
| Fuel type | diesel: 0#(summer), -10#(winter) | gasoline: 90# | |
Our Services
We provide one year warranty count from the date of B/L.
