Hot!! Double Cylinder Diesel Engines 20hp
1.90% of the work in process are done by our own facility to guarantee the goods in reliable quality at a feasible cost.
2.Modernized plant with advance assembling & inspection systems.
3.A rich experience and strong technique management team to support our products in high quality.
4.Our company passed ISO9001:2008 and attained the approval of CE, EPA, GS, ETL, EMC and SONCAP certificates.
5.In time delivery and sound after-sales service.
This double cylinder diesel engines 20hp air cooled model is designed in L type twin cylinder, oil cooler installed to low down the temperature. It passed the 500 hours durable test with excellent performance, and is certified by CE. The below technical specification and quotation just for your information, if you have any special request, please contact with our sales to check the possibility and price.
Specification
| Type | 2-cylinder,4-stroke,air cooled,vertical,inline,direct injection diesel engine | |
| Bore,mm | 90 | |
| Stroke,mm | 75 | |
| Displacemen,L | 0.954 | |
| Compression ratio | 19:1 | |
| Declared speed,r/min | 3000 | 3600 |
| Declared power,kW | 12.5 | 12.5 |
| Maximum torque/Speed,N•m / (r/min) | 45.8/2250 | 38.5/2700 |
| Maximum no-load speed,r/min | 3240 | 3888 |
| Idling speed,r/min | 1300 | |
| Specific fuel consumption ,g/kW.h | ≤280 | |
| Specific oil consumption,g/kW.h | ≤4.08 | |
| Suggested Value Fuel | 0#(normal temperature) | |
| Suggested Value Oil | CF 15W-40(normal temperature) | |
| Oil capacity,L | 3 | |
| Fuel tank capacity,L | 7 | |
| Lubricating type | Pressure | |
| Starting type | Electric | |
| Rotary direction of crankshaft | Clock wise(View from fly sheel end) | |
| Dimensions(L×W×H),mm | 580×475×535 | |
| Dry weight,kg | 81 | |

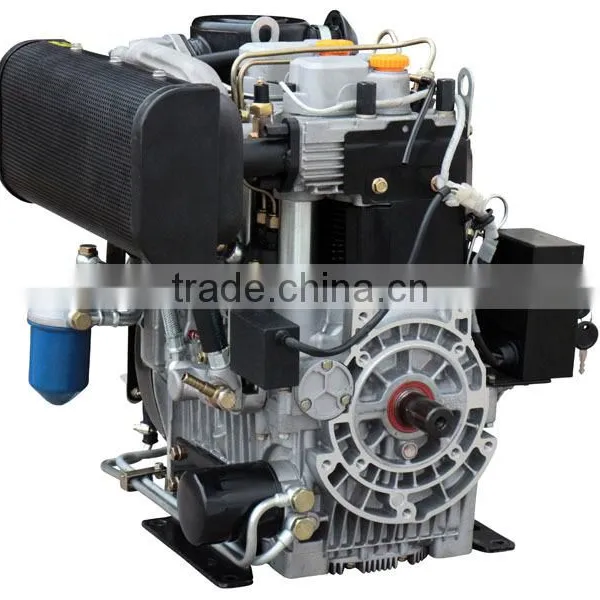

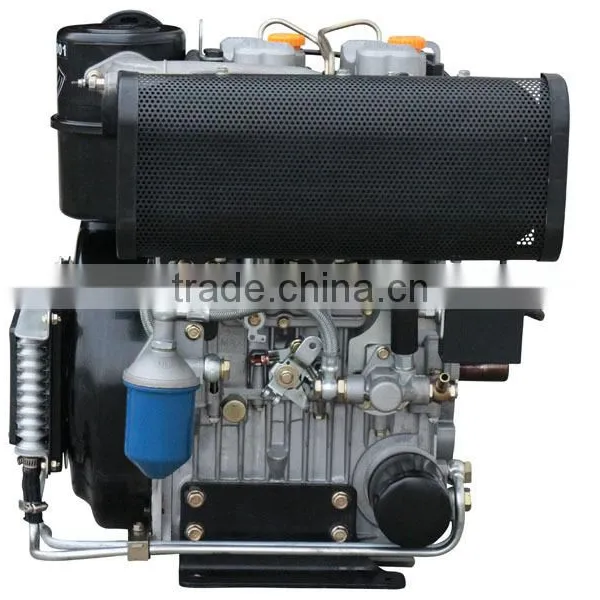

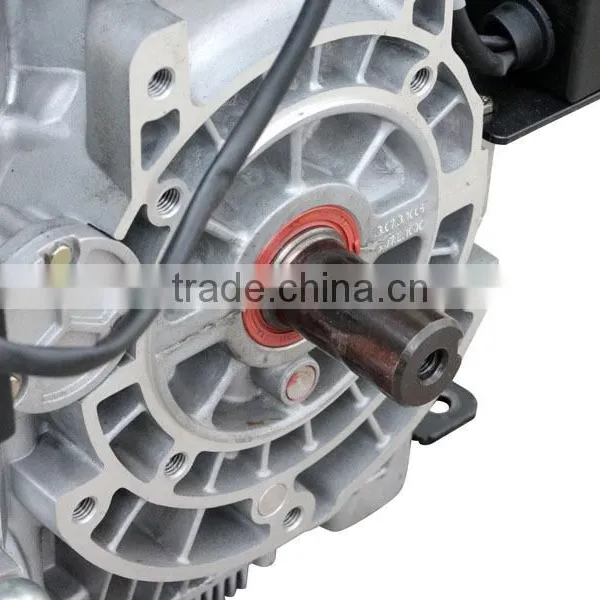

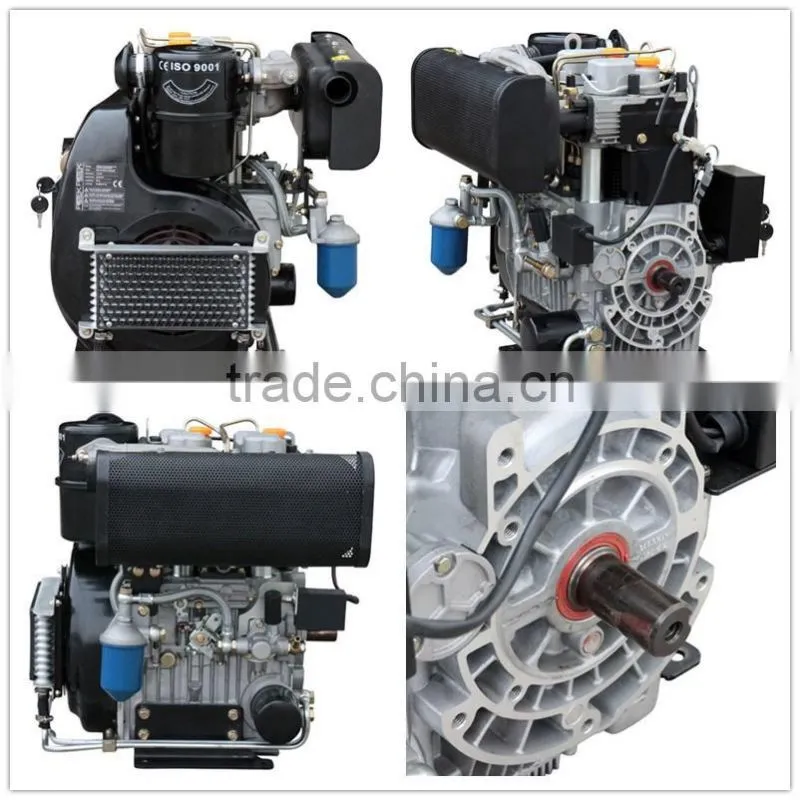

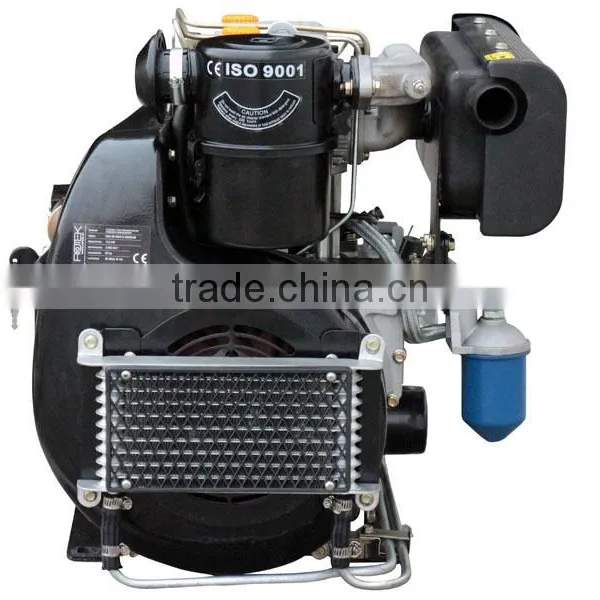

Product showcase
Performance curve
| |||||||||||||||||
| Perfomance measured after 30h running,with air cleaner and exhaust silencer. | |||||||||||||||||
| Atmospheric conditions:ISO3046-1 | |||||||||||||||||
| Intake air temperature:25°C | |||||||||||||||||
| Barometric pressure:100kPa | |||||||||||||||||
| Relative humidity:30% |
Principle Diagram of Electricity
Certificates
CE
ISO9001:2008
ISO 14001:2004
Quality Control
We beliveve good quality rises in the whole manufacturing process. Continuous improvement in quality is our target. Our quality control system mainly consist of 4 parts, they are material inspection, key control point inspection, products test, spot inspection by QC. Some times, if neccessary, our products will be inspect by CIQ or SGS by some other party request by our customer.
This model is packed in carton, with iron sheet support in every edge, with polywood lock at the bottom and another polywood cover at the top.
1. We provide one year warranty for all of our products count from the datd of B/L. If the machine break during he warranty period due to quality or assembling problem, we provide free spare parts to our customer for reparing. After expiration, we provide cost spare parts service.
2. We provide free technical consultant if you have any question about the usage of our products.
3. We can make OEM as per request of our customer, such as customer brand, label, package, special model design, color, etc.
Year establish: Sep., 2000
Factory location: Hongkuan Industrial Park, Fuqing city, Fujian province, China
Factory area: 200,000 m2
Employee number: 800+
Engineers number: 50+
Main products: Air cooled single and twin cylinder gasoline & diesel engine, air cooled gasoline generators from 0.65-10kW, air cooled diesel generators from 2-10kW, water cooled multi-cylinder diesel generator from 8-2500kva, light towers, gasoline & diesel water pump from 1-4 inch, lawn mower from 16-22 inch, gasoline & diesel high pressure washers, welding generators.
Turnover at 2015 : 1.1 billion USD
