2-cylinder 4 stroke 20hp diesel engine for sale
Why choose us ?
1.90% of the work in process are done by our own facility to guarantee the goods in reliable quality at a feasible cost.
2.Modernized plant with advance assembling & inspection systems.
3.A rich experience and strong technique management team to support our products in high quality.
4.Our company passed ISO9001:2008 and attained the approval of CE, EPA, GS, ETL, EMC and SONCAP certificates.
5.In time delivery and sound after-sales service.

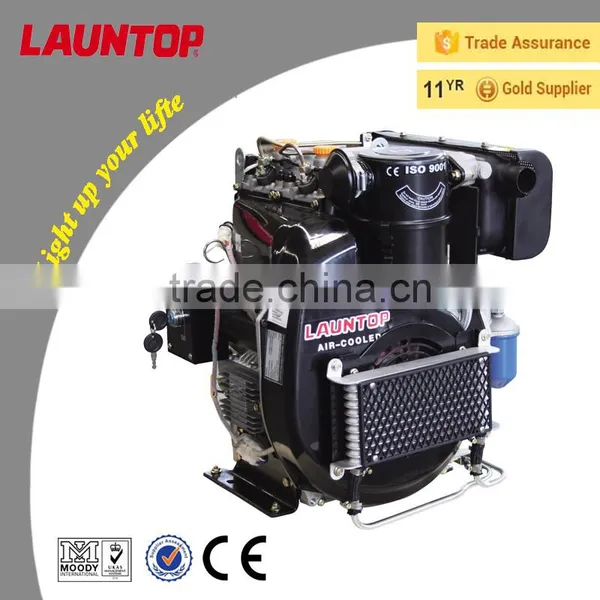

The 2-cylinder 4 stroke 20hp diesel engine for sale is designed in L type twin cylinder, oil cooler installed to low down the temperature. It passed the 500 hours durable test with excellent performance, and is certified by CE. The below technical specification and quotation just for your information, if you have any special request, please contact with our sales to check the possibility and price.
Product showcase

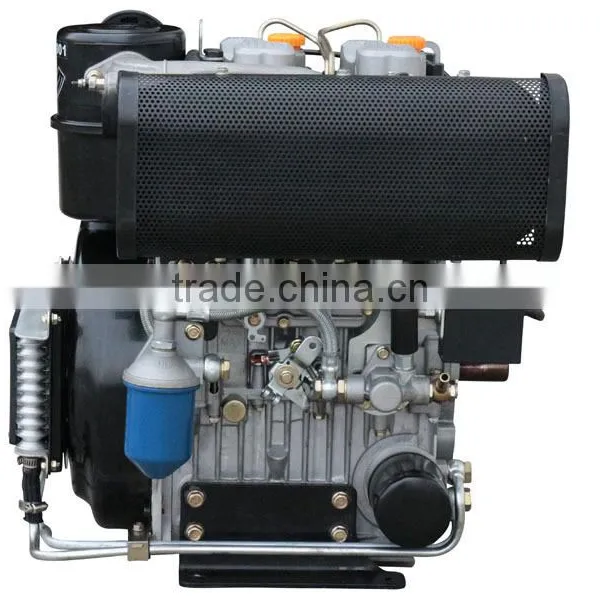

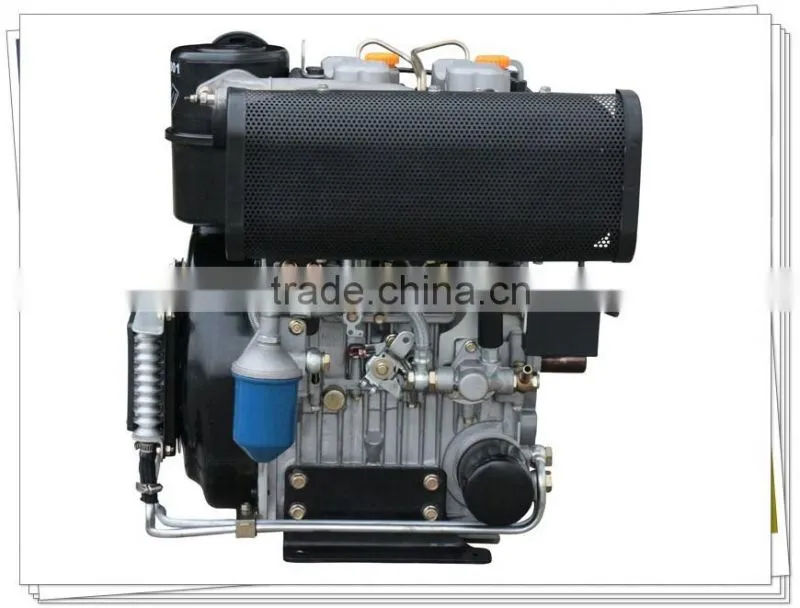

The front view of 2-cylinder 4 stroke 20hp diesel engine for sale

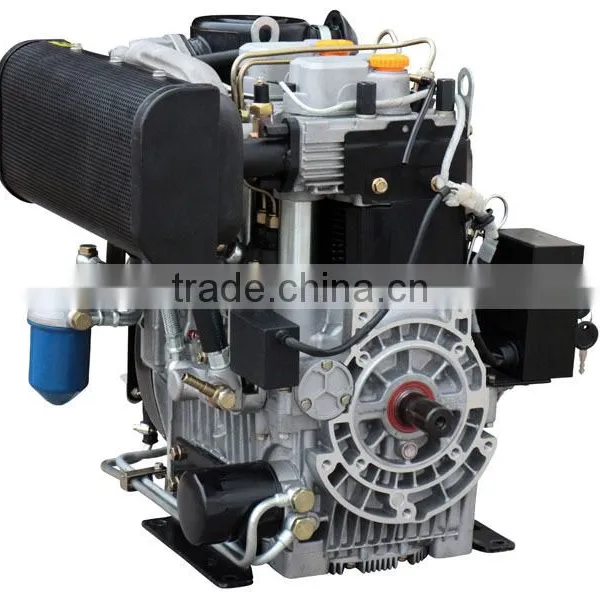

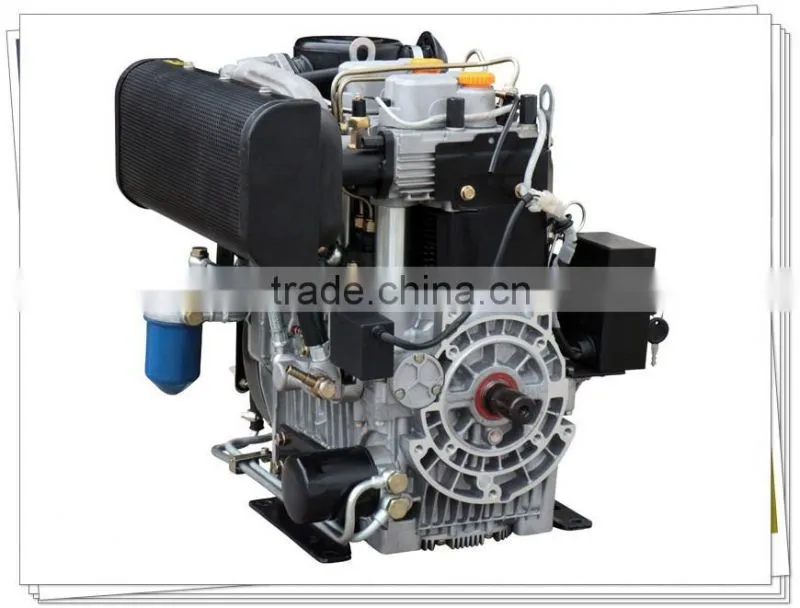

The right side view of 2-cylinder 4 stroke 20hp diesel engine for sale

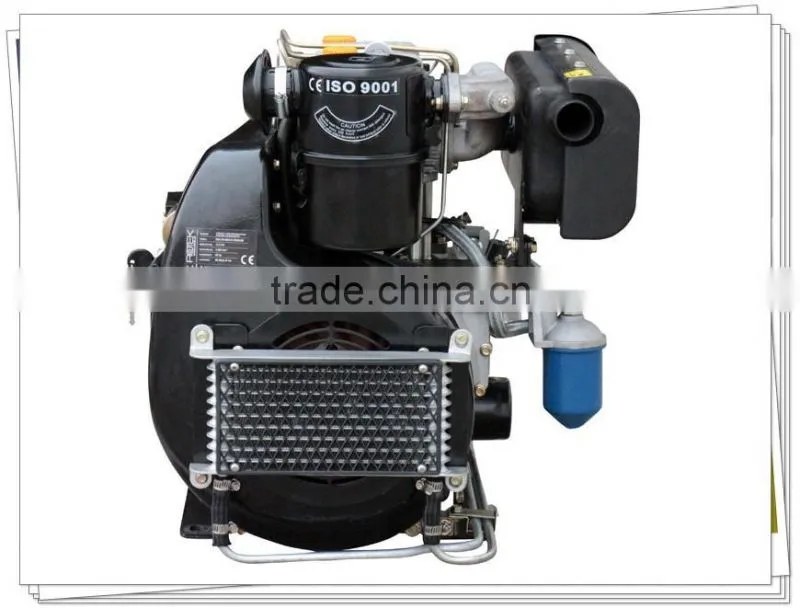

The rear view of 2-cylinder 4 stroke 20hp diesel engine for sale
Specification
| Model | 2-cylinder 4 stroke 20hp diesel engine for sale LA290 | |
| Type | 2-cylinder,4-stroke,air cooled,vertical,inline,direct injection diesel engine | |
| Bore,mm | 90 | |
| Stroke,mm | 75 | |
| Displacemen,L | 0.954 | |
| Compression ratio | 19:1 | |
| Declared speed,r/min | 3000 | 3600 |
| Declared power,kW | 12.5 | 12.5 |
| Maximum torque/Speed,N•m / (r/min) | 45.8/2250 | 38.5/2700 |
| Maximum no-load speed,r/min | 3240 | 3888 |
| Idling speed,r/min | 1300 | |
| Specific fuel consumption ,g/kW.h | ≤280 | |
| Specific oil consumption,g/kW.h | ≤4.08 | |
| Suggested Value Fuel | 0#(normal temperature) | |
| Suggested Value Oil | CF 15W-40(normal temperature) | |
| Oil capacity,L | 3 | |
| Fuel tank capacity,L | 7 | |
| Lubricating type | Pressure | |
| Starting type | Electric | |
| Rotary direction of crankshaft | Clock wise(View from fly sheel end) | |
| Dimensions(L×W×H),mm | 580×475×535 | |
| Dry weight,kg | 81 | |
Performance curve
| |||||||||||||||||
| Perfomance measured after 30h running,with air cleaner and exhaust silencer. | |||||||||||||||||
| Atmospheric conditions:ISO3046-1 | |||||||||||||||||
| Intake air temperature:25°C | |||||||||||||||||
| Barometric pressure:100kPa | |||||||||||||||||
| Relative humidity:30% |

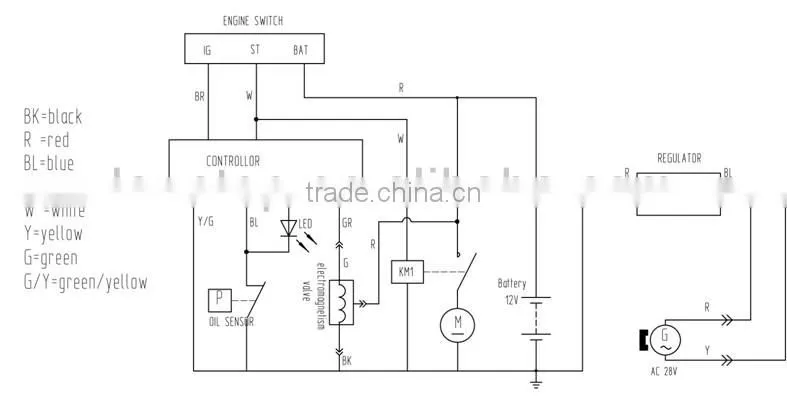

Principle Diagram of Electricity
We beliveve good quality rises in the whole manufacturing process. Continuous improvement in quality
is our target. Our quality control system mainly consist of 4 parts, they are material inspection, key
control point inspection, products test, spot inspection by QC. Some times, if neccessary, our products
will be inspect by CIQ or SGS by some other party request by our customer.
Quality standard

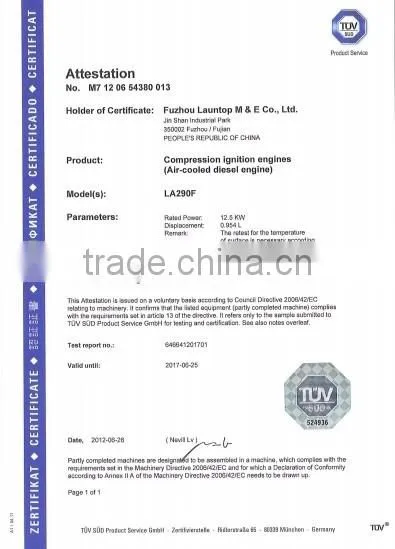

CE

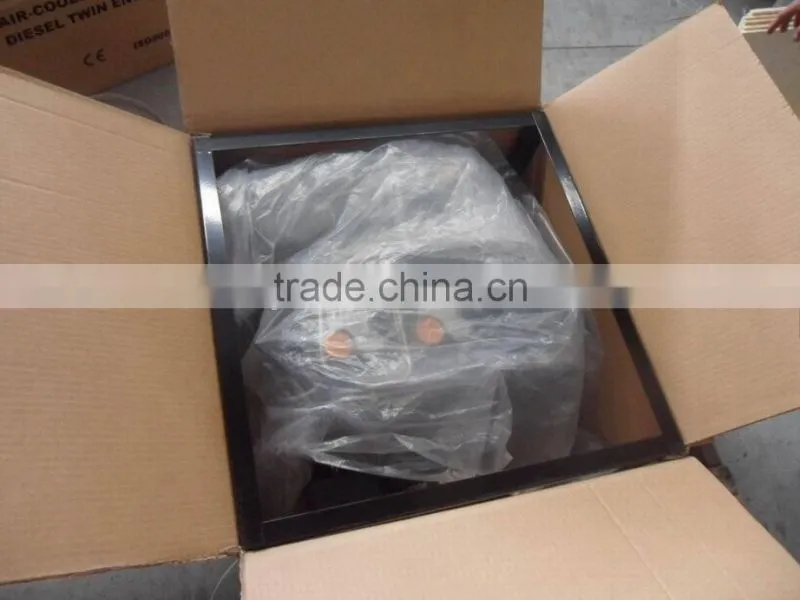

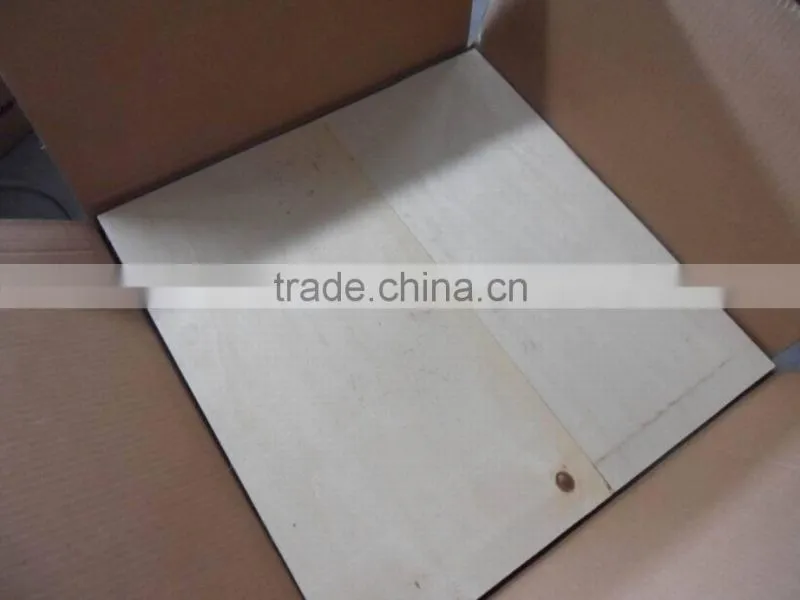

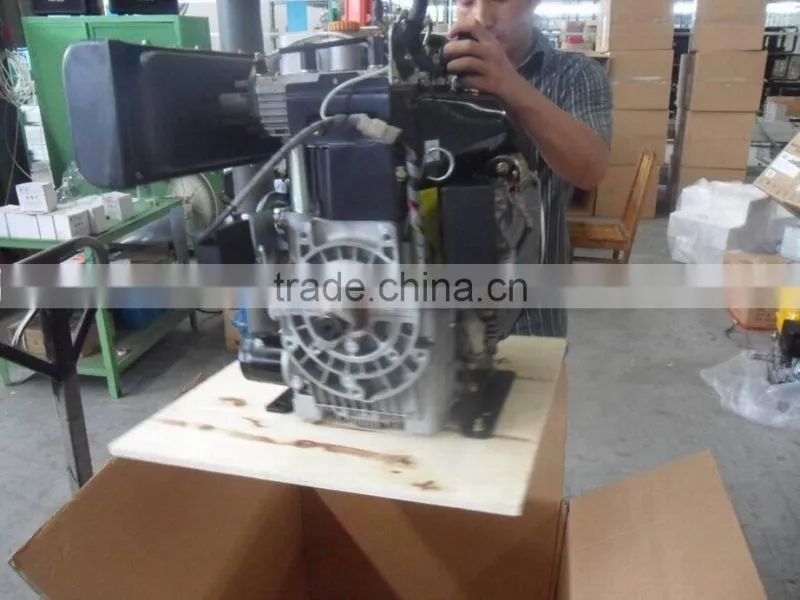

The 2-cylinder 4 stroke 20hp diesel engine for sale is packed in carton, with iron sheet support in every edge, with polywood lock at the bottom and another polywood cover at the top.
1. Delivery time for engines & generators usually take 30 days after receive buyer's deposit.
2. Delivery time for water pumps & high pressure washers usually take 40 days after receive buyer's deposit.
3. For special period, for example, Chinese spring festival, the delivery time will be a little bit longer. So, in case of any impact on your sales, please arrange your purchase plan timely. If you place order during festival, please check with our sales the exact delivery time.
4. Also, in case of any delay in shipment, please arrange payment in time according to the payment terms agreed by both parties. Thank you for your cooperation !
1. We provide one year warranty for all of our products since the datd of B/L. If the machine break during he warranty period due to quality or assembling problem, we provide free spare parts to our customer for reparing. After expiration, we provide cost spare parts service. For any claim, please cooperate to provide necessary information to us for evaluation such as the serial number, pictures of the broken parts and working condition before the model broken. We will make record and improvement in case of same problem in the future.
2. We provide free technical consultant if you have any question about the usage of our products.
3. We can make OEM package & design as per request of our customer, such as customer brand, label, special model design, color, etc.
Year establish: Sep., 2000
Factory location: Hongkuan Industrial Park, Fuqing city, Fujian province, China
Factory area: 200,000 m2
Employee number: 800+
Engineers number: 50+
Main products: Air cooled single and twin cylinder gasoline & diesel engine, air cooled gasoline generators from 0.65-10kW, air cooled diesel generators from 2-10kW, water cooled multi-cylinder diesel generator from 8-2500kva, light towers, gasoline & diesel water pump from 1-4 inch, lawn mower from 16-22 inch, gasoline & diesel high pressure washers, welding generators.
Turnover at 2015 : 1.1 billion USD
