Help Center10hp Hot Sale Air Cooled Diesel Engine LA188F
Related Products
-
9HP Air-cooled Single Cylinder Four Stroke Small Size Diesel Engine LA186F for SaleUS$ 100 - 200MOQ: 30 Units -
Top Quality 5hp Air Cooled Small Diesel Engine LA178F for SaleUS$ 158 - 190MOQ: 30 Units
-
9HP Air-cooled Small Size Diesel Engine LA186F for SaleUS$ 100 - 200MOQ: 30 Units
-
4HP Air-cooled Diesel Engine LA170F for Sale ,US$ 100 - 200MOQ: 30 Units
-
20hp Twin Cylinder Air Cooled Diesel Engine LA290 for SaleUS$ 780 - 900MOQ: 30 Units
Recoil start & air cooled 10hp diesel engine for sale
Specificaton
| DIESEL ENGINE SPECIFICATION | ||||||
| Model | LA170 | LA178 | LA178FA | LA186F | LA186FA | LA188F |
| Bore×Stroke (mm) | 70×55 | 78×62 | 78×64 | 86×70 | 86×72 | 88×78 |
| Displacement (cc) | 211 | 296 | 306 | 406 | 418 | 474 |
| Engine speed (rpm) | 3000 / 3600 | |||||
| Max. output (hp) | 3.8 / 4.2 | 5.5 / 6 | 5.5 / 6 | 8.6 / 10 | 8.6 / 10 | 10 / 10.9 |
| Continuous output (hp) | 3.4 / 3.8 | 5 / 5.4 | 5 / 5.4 | 7.7 / 8.6 | 7.7 / 8.6 | 9 / 9.8 |
| Rated Power (Kw) | 2.5kW@3000rpm | 3.68kW@3000rpm | 3.68kW@3000rpm | 5.7kW@3000rpm | 6.6kW@3000rpm | 6.6kW@3000rpm |
| 2.8kW@3600rpm | 4kW@3600rpm | 4kW@3600rpm | 6.3kW@3600rpm | 7.2kW@3600rpm | 7.2kW@3600rpm | |
| Max. torque [Nm/(rpm/min)] | 9Nm/(2400rpm/m) | 13.2Nm(2400rpm/min) | 20.4Nm(2400rpm/min) | 23Nm/(2200rpm/m) | ||
| 8.4Nm/(2880rpm/m) | 11.9Nm(2880rpm/min) | 18.8Nm(2880rpm/min) | ||||
| Compression ratio | 20 | 19 | 19.5 | |||
| Fuel tank capacity (L) | 2.5 | 3.5 | 5.5 | |||
| Fuel consumption (g/kWh) | 280 | 275 | 265 | ≤343 | ||
| Oil capacity (L) | 0.75 | 1.11 | 1.11 | 1.65 | 1.65 | 1.65 |
| Dimension (L×W×H) | 332×392×416 | 383×421×450 | 412×470×494 | 417×441×500 | ||
| Net weight (kg) | 27 | 33 | 48 | |||
Product showcase

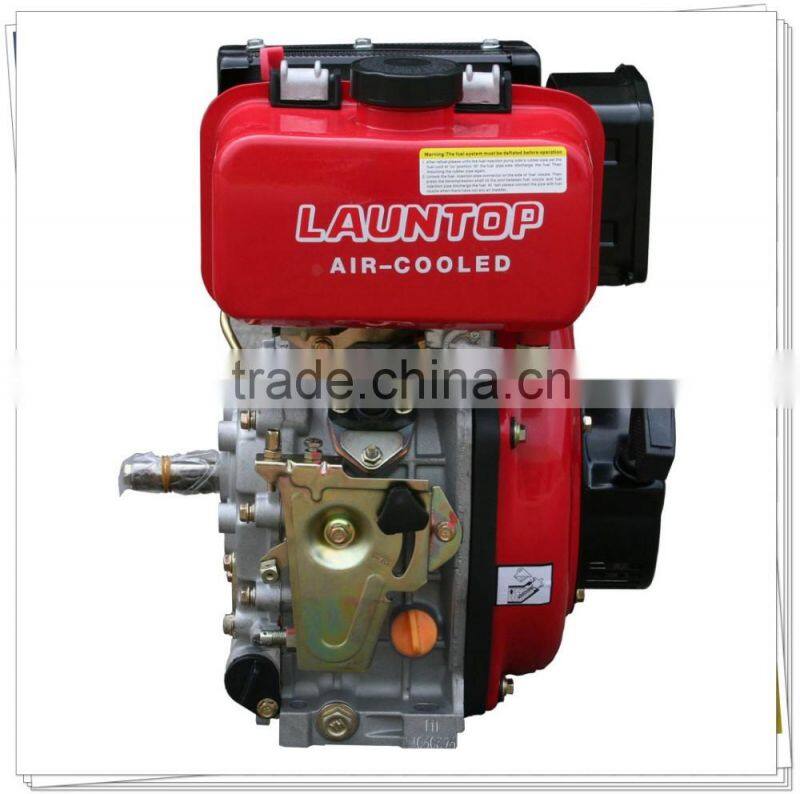

The speed control system of recoil start air cooled launtop diesel 10hp diesel engine
The rear of recoil start air cooled launtop diesel 10hp diesel engine

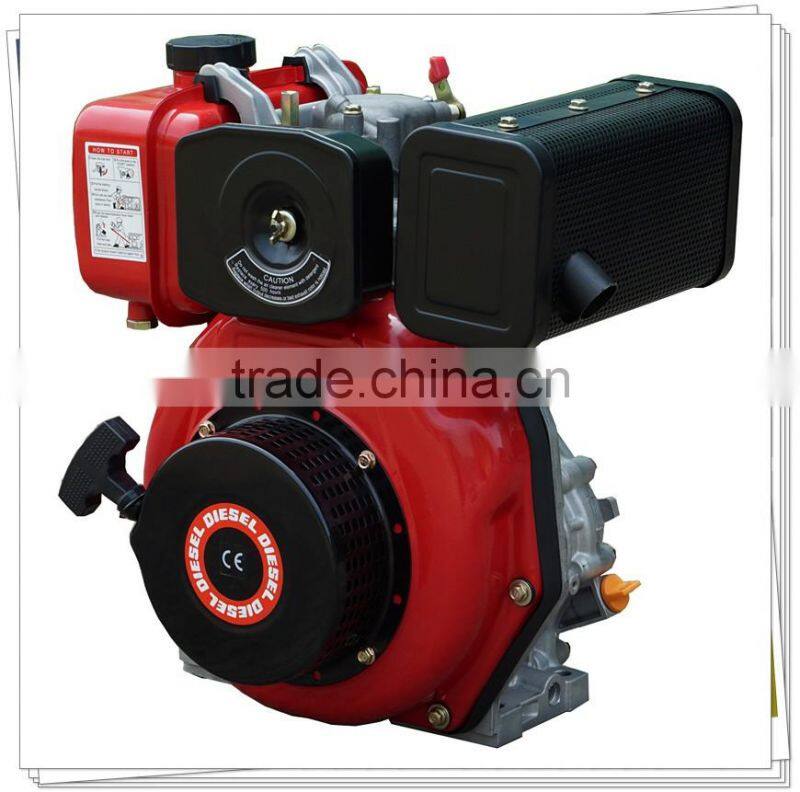

The front of recoil start air cooled launtop diesel 10hp diesel engine
Manufacturing process
We beliveve good quality rises in the whole manufacturing process. Continuous improvement in quality
is our target. Our quality control system mainly consist of 4 parts, they are material inspection, key
control point inspection, products test, spot inspection by QC. Some times, if neccessary, our products
will be inspect by CIQ or SGS by some other party request by our customer.
Colors
We offer 10 kinds of standard colors for free, if you need other color, we need to collect extra cost.
1. We provide one year warranty for all of our products since the datd of B/L. If the machine break during he warranty period due to quality or assembling problem, we provide free spare parts to our customer for reparing. After expiration, we provide cost spare parts service. For any claim, please cooperate to provide necessary information to us for evaluation such as the serial number, pictures of the broken parts and working condition before the model broken. We will make record and improvement in case of same problem in the future.
2. We provide free technical consultant if you have any question about the usage of our products.
3. We can make OEM as per request of our customer, such as customer brand, label, package, special model design, color, etc.
1. Q: What's the MOQ for this model ?
A: The MOQ for this products is 10 units. But for sample order, we also accept 1-2 units.
2. Q: Do you have this model in stock ?
A: Usually, customers from different district have different request to the specification, such as color, speed, so it's hard to prepare stock in advance. But sometimes we will have several units left in stock, please ask our sales people to check for you.
3. Q: How about the production capacity ?
A: FYI, the current production capacity for our twin cylinder products is 50units/day. For gasoline products is 250 untis/day, for diesel products is 150 units/day.
4. Q: Can I mix several models in a container ?
A: Yes, this is acceptable. Please ask our sales to calculate the quantity for you.
Year establish: Sep., 2000
Factory location: Hongkuan Industrial Park, Fuqing city, Fujian province, China
Factory area: 2000,000 m2
Employee number: 800+
Engineers number: 50+
Main products: Air cooled single and twin cylinder gasoline & diesel engine, air cooled gasoline generators from 0.65-10kW, air cooled diesel generators from 2-10kW, water cooled multi-cylinder diesel generator from 8-2500kva, light towers, gasoline & diesel water pump from 1-4 inch, lawn mower from 16-22 inch, gasoline & diesel high pressure washers, welding generators.
Turnover at 2015 : 1.1 billion USD
