Help Center9HP Air-cooled Single Cylinder Four Stroke Small Size Diesel Engine LA186F for Sale
Related Products
-
Top Quality 5hp Air Cooled Small Diesel Engine LA178F for SaleUS$ 158 - 190MOQ: 30 Units -
9HP Air-cooled Small Size Diesel Engine LA186F for SaleUS$ 100 - 200MOQ: 30 Units
-
4HP Air-cooled Diesel Engine LA170F for Sale ,US$ 100 - 200MOQ: 30 Units
-
20hp Twin Cylinder Air Cooled Diesel Engine LA290 for SaleUS$ 780 - 900MOQ: 30 Units
-
Recoil Start & Air Cooled 10hp Diesel Engine for SaleUS$ 210 - 250MOQ: 30 Units
MODEL |
LA186F |
|
Bore*stroke (mm) / (inch) |
86*70 |
|
3.39*2.76 | ||
Displacement (cc) / (cu.in.) |
406 / 24.77 |
|
Engine speed (rpm) |
3000 |
3600 |
Maximum output (hp) |
8.6 |
10.0 |
Continuous output (hp) |
7.7 |
9.0 |
Power take off |
Crankshaft or Camshaft
(Camshaft PTO rpm is 1 / 2)
|
|
Starting system |
Recoil or Recoil / Electric |
|
Fuel tank capacity (L) / (us.gal) |
5.5 / 1.45 |
|
Lube oil capacity (L) / (us.gal) |
1.65 / 0.44 |
|
|
Dimensions L*W*H
(mm) / (inch)
|
417*470*494 |
|
16.4*18.5*19.4 | ||
Net weight (Recoil) (kg) / (lbs) |
48 / 105.8 |
|
1. We provide one year warranty for all of our products since the datd of B/L. If the machine break during he warranty period due to quality or assembling problem, we provide free spare parts to our customer for reparing. After expiration, we provide cost spare parts service. For any claim, please cooperate to provide necessary information to us for evaluation such as the serial number, pictures of the broken parts and working condition before the model broken. We will make record and improvement in case of same problem in the future.
2. We provide free technical consultant if you have any question about the usage of our products.
3. We can make OEM package & design as per request of our customer, such as customer brand, label, special model design, color, etc.
Fuzhou Launtop M & E Co.,Ltd. is a privately owned company that aims to bring high-quality power products to the international market. As an extension of a diesel engine business established in 2000, with are registered capital of 15 million US dollars, Launtop has gained and accumulated considerable industry experience in standby generators. We started manufacturing only a handful of products then. As of today the product line have now been expanded into one of the most comprehensive in the industry.

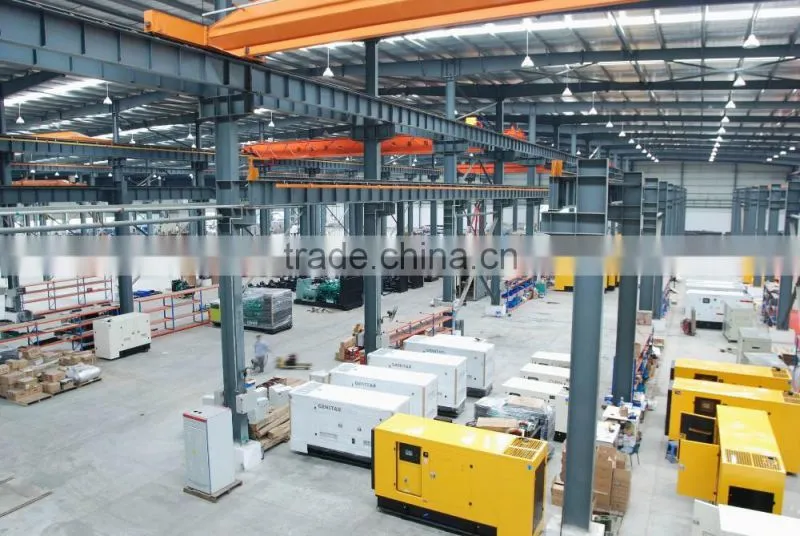

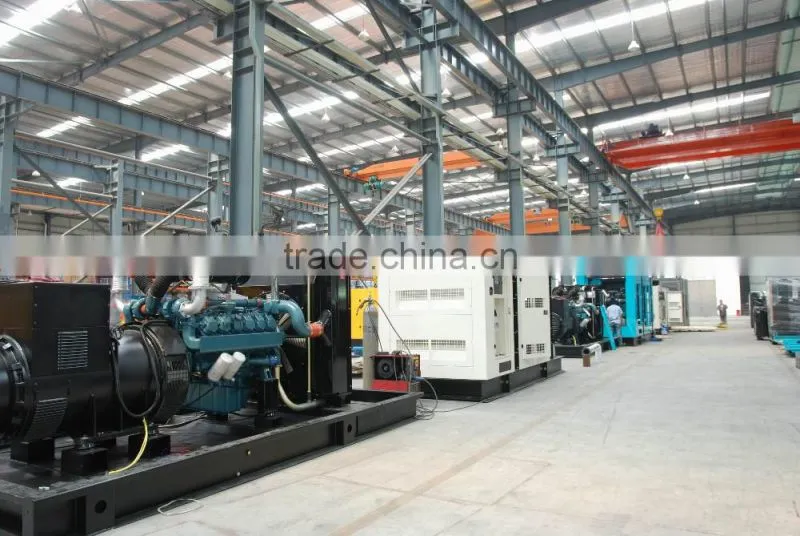

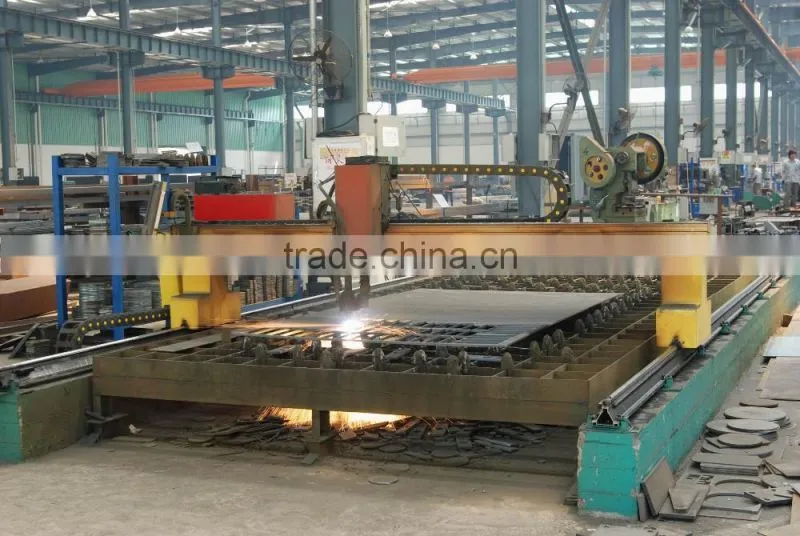

We are currently operating in an expanded 200,000 square meters floor space with modernized facility in Fuqing, China,we delivered our products to more than 100 countries worldwide. Now the company employs 850 employees, amongst whom 100 are technical personnel. Our relentless commitment to engaging in products innovation, recruiting knowledgeable and self motivated staff, and aims to serving the needs of the clients are important key elements all contributed to our success today. This is only one part of the winning equation. Launtop has set up a completely state of art working system for CNC, R&D, and Q.C to ensure each and every of our product meets with the highest quality standard before shipping it to the clients.
The commitment at Launtop is to constantly strive to offer the markets with new and innovated high performance products in all aspects at very affordable prices. We are highly sensitive to the changing needs of the market and gear ourselves to respond promptly, thus Launtop has been able to set itself apart from the competition.
Our mission
Vision-- To be the country’s No.1 Chinese General Purpose Machine.
Social Mission--Strong social conscience and responsibilities is Launtop’s focus. Greening the environment. Creating more job opportunities.
Staff Mission--Launtop regards all staff as family members whom we grow together.Working fervently to reach goals would be our biggest achievement.
Customer Mission-- Guided by the market, think for the customer, serves with expertise.
1. Q: What's the MOQ for this model ?
A: The MOQ for this products is 20 units. But for sample order, we also accept 1-2 units.
2. Q: Do you have this model in stock ?
A: Usually, customers from different district have different request to the specification, such as color, speed, so it's hard to prepare stock in advance. But sometimes we will have several units left in stock, please ask our sales people to check for you.
3. Q: How about the production capacity ?
A: FYI, the current production capacity for our twin cylinder products is 50units/day. For gasoline products is 250 untis/day, for diesel products is 150 units/day.
4. Q: Can I mix several models in a container ?
A: Yes, this is acceptable. Please ask our sales to calculate the quantity for you.
