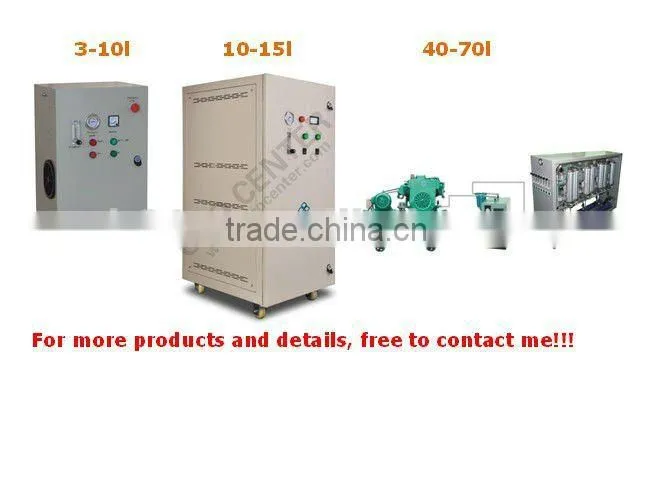

Fish Farming 10l Oxygen Generator

Name: Fish Farming 10l Oxygen Generator
Brand: ozocenter
SKU: 138218463
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

ozocenter

Model Number:

oxygen generator CH-OX

Guangzhou Chuanghuan Ozone Electric Appliance Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name ozocenter

Model Number oxygen generator CH-OX

Usage Oxygen

Production Rate 3LPM 5LPM 7LPM 10LPM

Specifications

Fish farming 10l Oxygen Generator
1. PSA tech
2. for industrial use, aquculture, ozone generator

Fish farming 10l Oxygen Generator Configuration of Oxygen concentrator

1. Built-in oil free air compressor

2. Condensator

3. PSA oxygen generate unit

4. Control: Door lock, Ampmeter, Working indicator, Power indicator, On/Off, Oxygen flow meter, Voltmeter, Oxygen outlet, Fuse, Power input

5. Oxygen concentration: 90%±3%

6. Pressure of oxygen outlet: 0.06-0.08Mpa

Specifications

What a important part –Refrigerated dryer with QPS filter for oxygen generator!

1. Under humidity is above 85%-90%, Refrigerated dryer is necessary to dry the hot compressed air which pumps into oxygen bed, to protect oxygen bed.

2. QPS filter is to filter dust, oil, impurities to protect oxygen bed and with automatic water draining ability.

Specifications

Oxygen Concentrator		Refrigerant dryer Air flow rate (Nm3/min)	Dimension (mm)	Net weight (KG)
Model	Oxygen flow rate (LPM)	Refrigerant dryer Air flow rate (Nm3/min)	Dimension (mm)	Net weight (KG)
CH-03L	3.00	0.50	990×385×840	55.00
CH-05L	5.00	0.50	990×385×840	57.50
CH-07L	7.50	0.50	990×385×840	60.00
CH-010L	10.00	0.50	990×385×840	63.00
