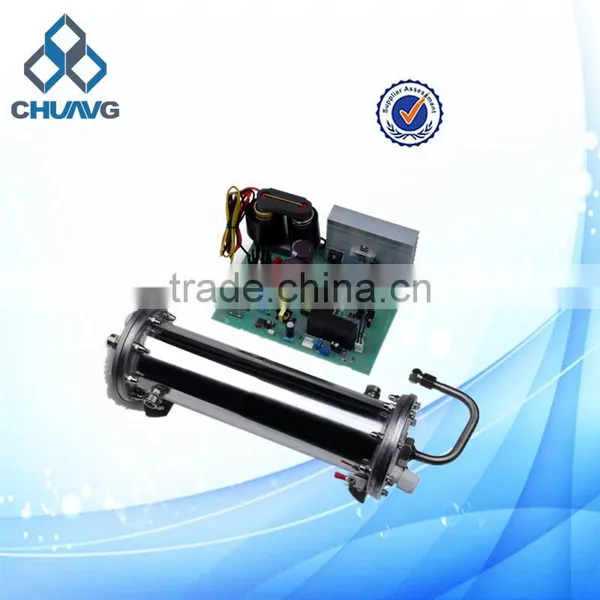

60g 80g water cooling Corona discharge enamel ozone generator parts
CH-PC
1.Electrodes:
Use enamel coating as internal electrode, stainless steel as external electrode, capacity of corona resistance and machinery anti-force capacity are stronger than glass, ceramic material. Uniformity air gap between enamel coating internal electrode and stainless stee l external electrode, it produces high concentration ozone output. It uses insulation materials for connections, for preventing creepage.
2.Cooling way:
Water cooled for internal & external electrodes, effective prevent high temperature rising when the tube is discharging, for ensuring high ozone concentration output.
3.Adjustable ozone output: 20-100%.
Use high-frequency & Intelligent power supply inverse system, ozone output can be changed on demand to achieve accuracy control.
4.High ozone concentration & output
60g 80g water cooling Corona discharge enamel ozone generator parts
60g 80g water cooling Corona discharge enamel ozone generator parts
CH-PC 18-80G/Hr
Item |
Unit |
CH-PC18G |
CH-PC30G |
CH-PC40G |
CH-PC60G |
CH-PC80G |
Ambient temperature |
℃ |
23 |
23 |
23.9 |
23.9 |
24 |
Ambient humidity |
% |
38 |
38 |
37 |
||
Oxygen flow rate |
LPM |
1~4 |
2~8 |
3~10 |
5~17 |
8~20 |
Ozone concentration |
Mg/L |
112~78 |
123~72 |
123~70 |
120-72 |
118-74 |
Ozone output |
G/Hr |
6.7-18.7 |
14.8~34.6 |
22.1-42 |
36-73 |
56-88 |
Power |
Kw |
≤0.22 |
≤0.3 |
≤0.4 |
≤0.6 |
≤0.8 |
Cooling method |
Water cooling for internal & external electrodes |
|||||
Cooling water flow rate |
LPM |
≥2 |
||||
Cooling water temperature |
℃ |
ambient temperature ± 8℃ |
||||
Diameter of gas inlet/outlet |
mm |
1.Air inlet & ozone outlet: EDφ8mm |
||||
Diameter of water inlet/outlet |
EDφ10mm |
|||||
Adjustable range |
% |
20-100 |
||||
Power supply |
V/Hz |
110/220V 60/50HZ |
||||
Fuse |
A |
3 |
5 |
10 |
||
Ozone tube dimension |
mm |
285*160*125 |
340*160*125 |
460*160*125 |
600*160*125 |
705*160*125 |
Power supply dimension |
mm |
212*90*95 |
189*146*95 |
210*146*62 |
||
Ozone tube weight |
Kg |
2.5 |
3 |
3.6 |
4.9 |
5.45 |
Power supply weight |
Kg |
1 |
2.4 |
|||
Working conditions:
Ambient temperature: 20°C,
Oxygen concentration: >99%,
Dew point: >-45,
Cooling water output temperature:20°C.
60g 80g water cooling Corona discharge enamel ozone generator parts
60g 80g water cooling Corona discharge enamel ozone generator parts
♦Is ozone harmful to human body ?
♦Once the ozone concentration fails to meet the hygiene and safety standard,
we can notice with our sense of smell and dodge away or take actions to avoid
further leakage.
So far there is no one dealth reported caused by ozone poisoning.
♦Does the ozone generator work efficently ?
Undeniably,ozone can sterilize and remove odor and formaldehyde.
It is reported that ozone is a widely used bactericide.It can kill escherichia coli,
bacimethrin efficently and resolve the harmful material in a short time.
60g 80g water cooling Corona discharge enamel ozone generator parts
60g 80g water cooling Corona discharge enamel ozone generator parts
Why choosing us?
1.Having 10 years production experienced .We are trusty business partner.
2.Quality Controlled:Quality Control personnel check the quality at every stage of
production, from the incoming raw materials to the finished product.
3.CH-PC Production Capacity: 5000 pcs per month.

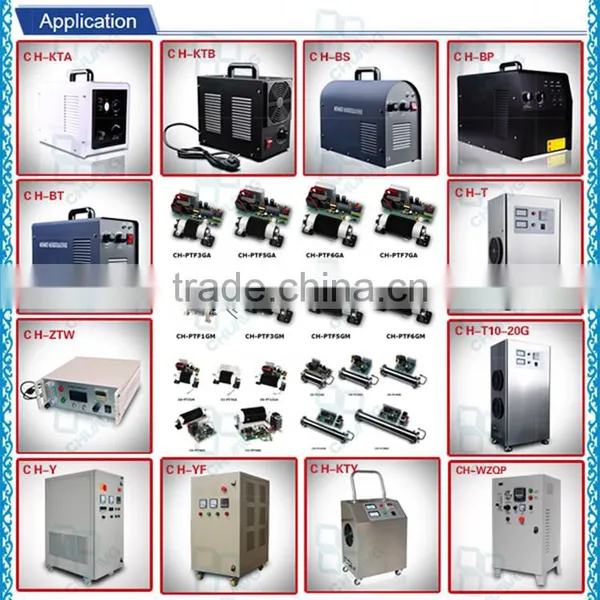

4.We have serial products: ozone tube ,UV water sterilizers, ozone generators, oxygen concentrators, protein skimmers, and filters, mixing pumps and other water or air
treatment spare parts.
5.We supply OEM service according to customers' requests and give out professional suggestions. Distributors Offer : Welcome to be our distributor .
