Manual Automatic Backwash Irrigation Water Treatment Sand Media Filter

Proper filtration are essential to the effective irrigation systems. Sand media filters are usually more effective for filtration where the water source contains organic, heavy inorganic or certain chemical contaminants, Water purifying machines / activated carbon filter sand filter.

Sand Media Filter Parameter:

Remark:

The first two numbers  mean the tank's diameter(inch), the last number means the numbers of the tanks.

Sand Media Filter Application:

• Water treating, Raw water treating , Recycle water , Chilling water treat, Soft water treat

• Treatment water with high turbidity
• Pre-treatment for reverse osmosis water treatment system (RO)
•  Advanced Treatment of industrial and human wastewater
• Take chemical treatment flukes
• Fish pond water treatment

Sand filters are simple, effective and require very little attention. Water is routed through the sand-filled tank where the sand traps particles large and small. Eventually the dirt accumulates in the space between the sand particles, making it harder for the water to pass through. This causes the pressure in the tank to rise, which signals that the tank needs to be backwashed by reversing the water flow. Cleaning is done by backwashing so the back-wash water must be filtered.

Sand media filter working:

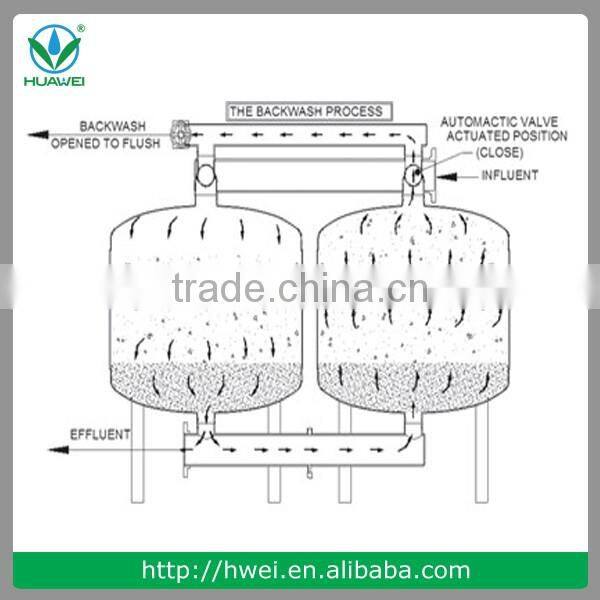

Backwash Working(manual backwash & automatic backwash)

When backwashing does occur, all filtering units do not simultaneously backwash. One unit will backwash for the specified time; then, the next unit in succession will backwash until all units have been cleaned. Also, there must always be at least two sand media filters in a system. During backwashing, a portion of the clean, filtered water from the other units is used to accomplish the backwashing process.

Sand media filter details and applications:

• Porfessional irrigtion solution provider
• Survery------Designing irrigation system-----Implement-----After-sale service
• Customized Service
• With our own mould workshop, customzied service is avaiable
• OEM Service
• We can offer OEM service according to customers' Logo, package, etc.
• Free Samples
• Customers just need to afford the shipping freight to get free samples
• Online Service
• 24 hours online service available
• Easy Payments
• T/T, L/C, Western Union, Paypal, etc. acceptable
• One Stop Shopping
• Full range of irrigation system goods are available

• Supplier of Shanghai EXPO 2010 and Disney project in shanghai
• Enterprise of State Supported Agriculture Machinery Promotion
• State Class A Irrigation Enterprise
• Associator of China Irrigation and Drainage Association
• Supplier of China Foreign Aid Projects
• Professional Solution Provider for High Efficient Intergration of Water and Fertilizer
• Certification of European Standards ISO9001 Quality Management System

Shanghai huawei is professional leading irrigation solution provider in China and ever were Shanghai Expo 2010 irrigation supplier. We offer ONE STOP IRRIGATION SERVICE, from DESIGNING irrigation system with our own qualified designing team, MANUFACTURING irrigation goods, EXPORTING goods to overseas customers. Our wild products line contains drip irrigation system, micro irrigation system and impulse irrigation system, such as drip tape, drip pipe, dripper, dripper arrow, micro sprayer, micro sprayer tape, impulse sprinkler, PP pipe & compression fittings, fertilizer injector, sand media filter, etc.
