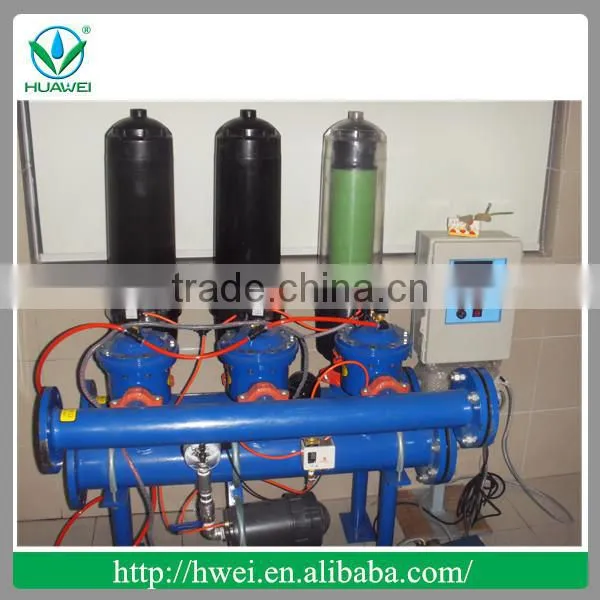

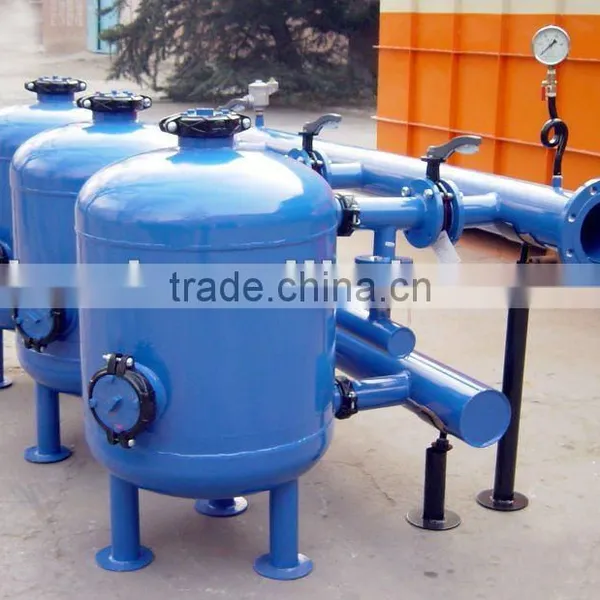

Industrial stainless steel sea water media filter/SS sand filter/active carbon filter

Manual Automatic Backwash Irrigation Water Treatment Sand Media Filter

Proper filtration are essential to the effective irrigation systems. Sand media filters are usually more effective for filtration where the water source contains organic, heavy inorganic or certain chemical contaminants, Industrial stainless steel sea water media filter/SS sand filter/active carbon .

Sand Media Filter Parameter:

Remark:

The first two numbers  mean the tank's diameter(inch), the last number means the numbers of the tanks.

Sand Media Filter Application:

• Water treating, Raw water treating , Recycle water , Chilling water treat, Soft water treat

• Treatment water with high turbidity
• Pre-treatment for reverse osmosis water treatment system (RO)
•  Advanced Treatment of industrial and human wastewater
• Take chemical treatment flukes
• Fish pond water treatment

Sand filters are simple, effective and require very little attention. Water is routed through the sand-filled tank where the sand traps particles large and small. Eventually the dirt accumulates in the space between the sand particles, making it harder for the water to pass through. This causes the pressure in the tank to rise, which signals that the tank needs to be backwashed by reversing the water flow. Cleaning is done by backwashing so the back-wash water must be filtered.

Sand media filter working:

Backwash Working(manual backwash & automatic backwash)

When backwashing does occur, all filtering units do not simultaneously backwash. One unit will backwash for the specified time; then, the next unit in succession will backwash until all units have been cleaned. Also, there must always be at least two sand media filters in a system. During backwashing, a portion of the clean, filtered water from the other units is used to accomplish the backwashing process.

Sand media filter details and applications:
