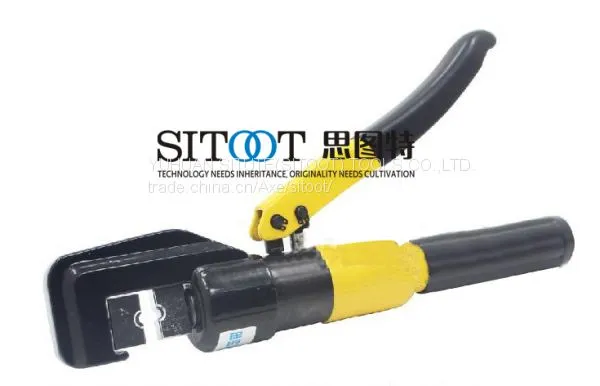

YQK-70 Hydraulic Crimping Tools
US$ 12 - 15
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
Sitoot
Place of Origin:
China
Model Number:
YQK-70
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
5 days
Related Products
-
YQK-120 Hydraulic Crimping ToolsUS$ 17 - 20MOQ: 5 Pieces -
EP-430Hydraulic Crimping ToolsUS$ 180 - 190MOQ: 5 Pieces
-
Hydraulic Crimping ToolsUS$ 200 - 210MOQ: 5 Pieces
-
Manual Hydraulic Hose Crimping Tool Hydraulic Crimping ToolUS$ 25.31 - 25.31MOQ: 100 Pieces
-
Lowest Price Hydraulic Crimping Tool With Good QualityUS$ 1,500 - 3,500MOQ: 1 Set
Brand Name
Sitoot
Place of Origin
China
Model Number
YQK-70
YQK-70 Hydraulic Crimping Tools
Technical parameters：
| Crimping Range |
4-70mm² |
| Crimping Force |
8T |
| Crimping Type |
Hexagon |
| Stroke |
14mm |
| Length |
420mm |
| Weight |
2.8kg |
| Standard Mould |
4、6、10、16、25、35、50、70mm² |
Operation method:
1, the work will be back to the oil valve clockwise to tighten
When the oil pressure relief valve counterclockwise anti loose
2, removable forceps head, we can provide any parts of the crimping pliers
3, hydraulic clamp C head design, the maximum working stroke 10mm using six angle die is not easy to fall off good conductivity
4, internal hydraulic clamp on the core, under the pressure of hydraulic oil from the cylinder when the spindle drive output, so as to achieve the crimping effect.
5, chrome plated special steel crimping module, durable
