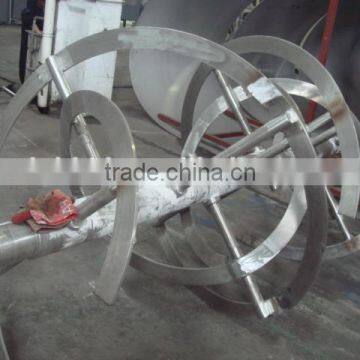

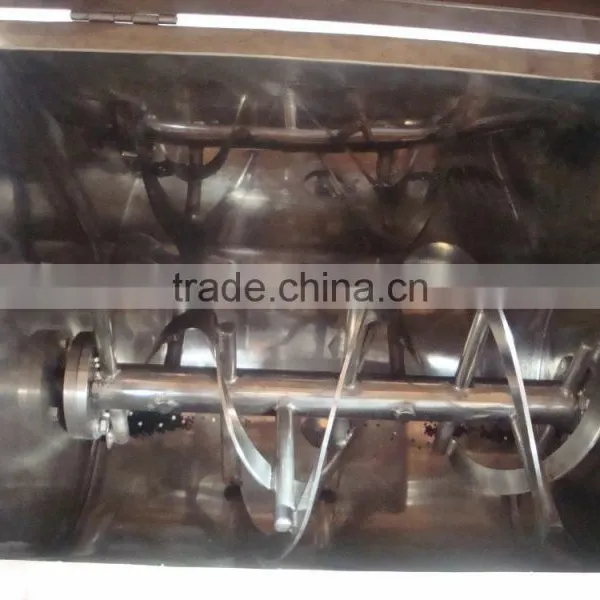

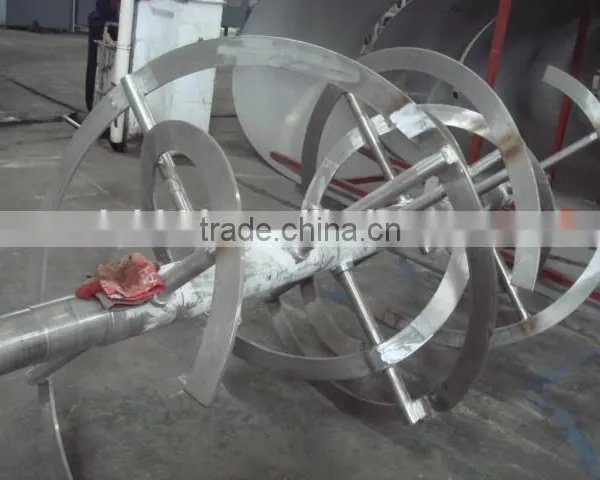

pre mixer,plastic static mixer,horizontal ribbon mixer.
Specifications

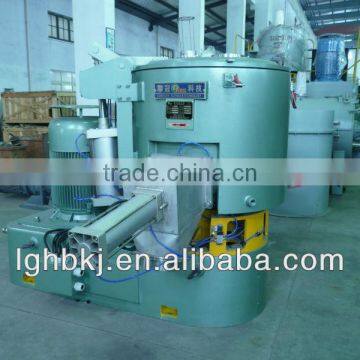

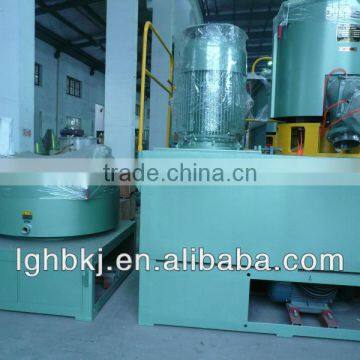

Plastic hot Mixer/plastic cold mixer/PVC mixer/heating mixer/cooling mixer
1. High capacity
2. Easy to operation
3. has state patent NO.ZLP62430641
4. SS304 material
5. Certification: ISO9001:2000 CE
FEATURE AND FUNCTION:
- SRL-W series mixer unit is widely used in mixing, drying, coloring and other processing. It is the most ideal equipment for producing shaped plastic material and plastics pipes.
- The technology of the main shaft sealed apparatus has got the state patent with NO.ZLP62430641 and it has two functions of electric and steam heating.
- Two layers of sealing technology is adopted in the pot cover. The opening of the heating mixed cover adopted the air opening device and the opening of the cooling mixed cover adopted hydraulic pressure control system.
- The electric control section with the programmable logic control adopted well-know imported meters and components.
- It is equipped with the pulse dust-cleaning recovery device.
- The blades have been passed the test of the dynamic and static balance testing machines.
- You may choose the simple and easy feeding system.
Main Technical Parameters
Model |
Total volume(L) |
Effective volume (L) |
Motor power (KW) |
Main shaft speed(rpm) |
Heating time (min/pot) |
Cooling time (min/pot) |
SRL-W500/2000 |
500/2000 |
375/1200 |
55/75-18.5 |
430/860-80 |
8-10 |
6-8 |
SRL-W800/2500 |
800/2500 |
560/1024 |
83/110-22 |
357/714-80 |
8-12 |
6-10 |
SRL-W1000/3500 |
1000/3500 |
700/2000 |
110/160-37 |
325/650-80 |
8-12 |
6-10 |
SRL-W1300/4500 |
1300/4500 |
910/2450 |
132/200-37 |
300/600-60 |
8-12 |
6-10 |
HERE IS OUR CERTIFICATION FOR YOUR REFERENCE:
OUR COMPANY HISTORY:
OUR CONTAINER SHIPPING:
COMPANY EXHIBITION:
