Wuxi Xishan Electric Furnace Plant is located in Bashi, Xibei Township, Wuxi City, Jiangsu Province, China. It was founded in 1982 . Engaged in the research and innovation of electric furnaces ever since its foundation, it has procured a profound knowledge for the design and manufacture of electric furnaces. With 30 years of practical experience amassed and the assimilation of advance technologies of foreign countries in the furnace making, it has never stopped its efforts in its innovative work for perfection. Therefore it is widely acknowledged by the profession and praised for its good reputation.

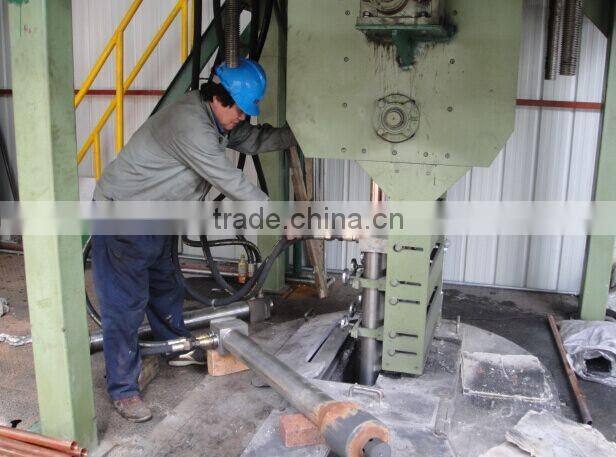

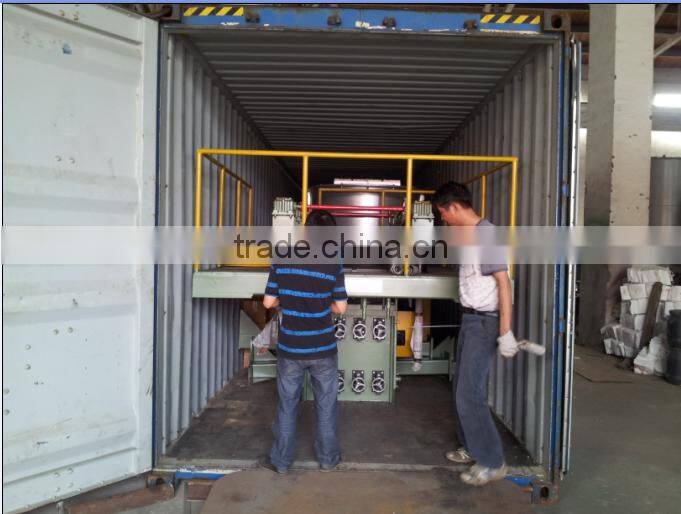

Upward Continuous Casting Unit oxygen-free for rod, Tube and Strip
Rod: |
φ8-φ40mm in diameter |
|

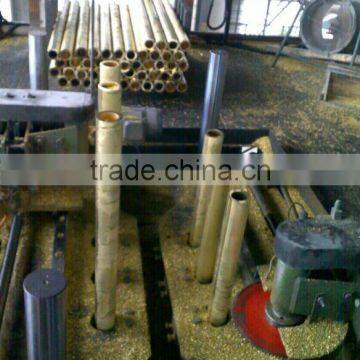

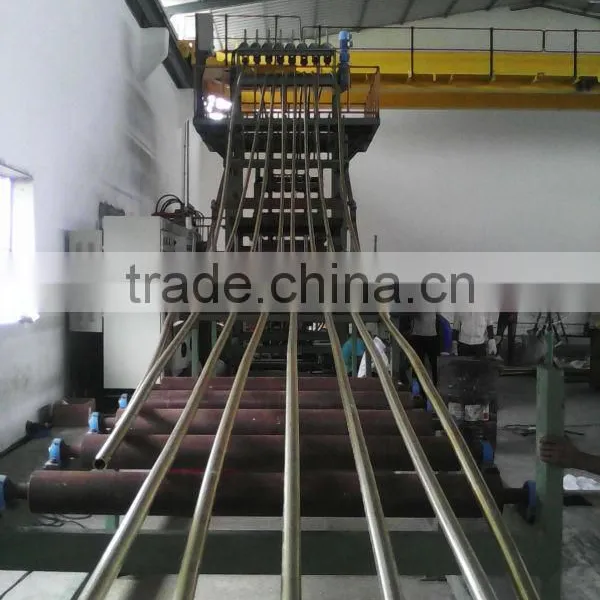

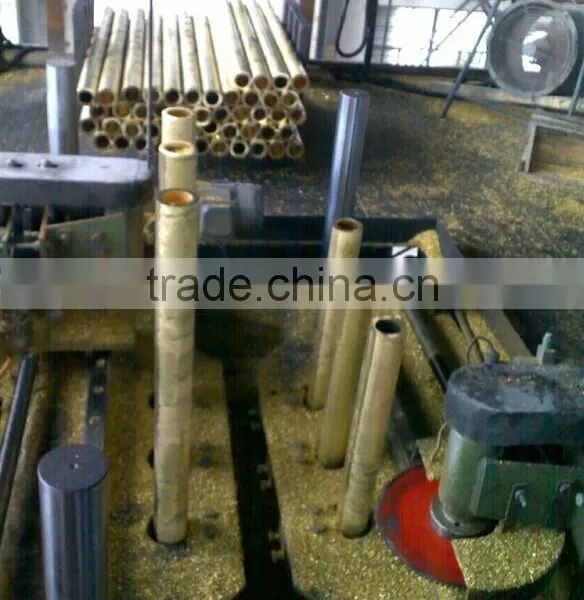

Tube: Outside diameter: Wall thickness: |
φ40-φ160mm 4-32mm |
|
Strip: Slabs: Strip thickness: Number of strands: Materials: Production capacity:
Operators needed: |
Up to 750mm in width 8-30mm 2-24 Copper and brass Up to 10,000t/a (Depending on number of strands) 1-2 per shift |

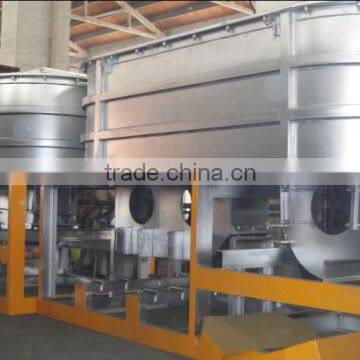

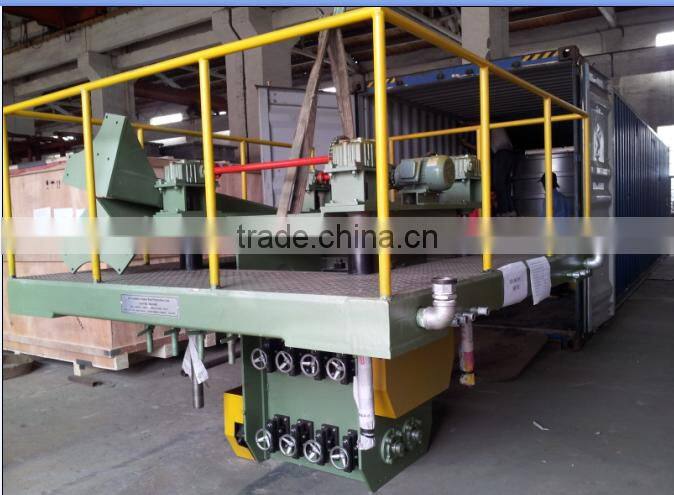

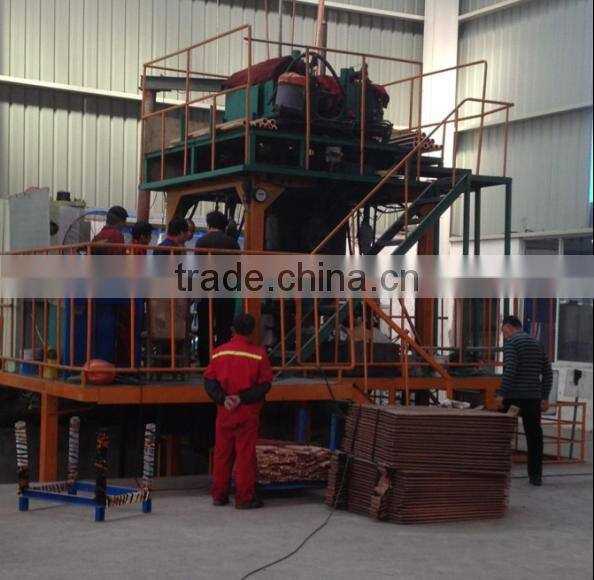

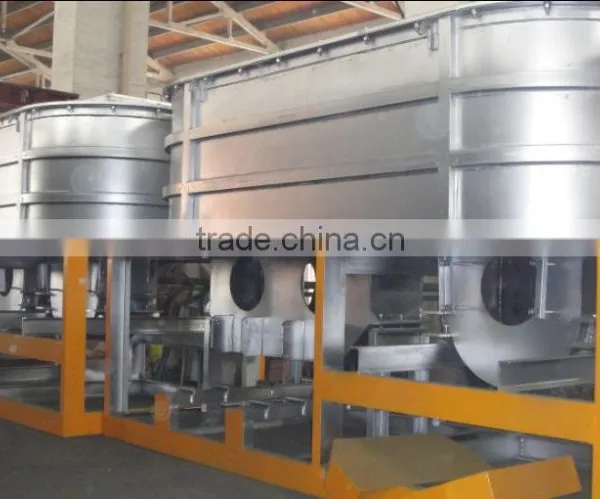

The production line consists of one set of furnace combination melting furnace and holding furnace, one set of casing machine with 4~8 dies, one set of guiding bridge, and electrical controls, etc.

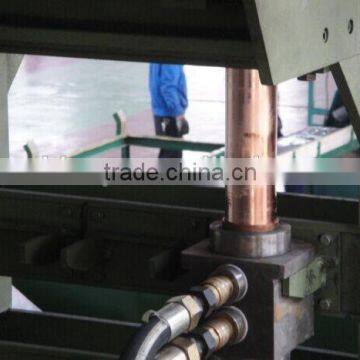

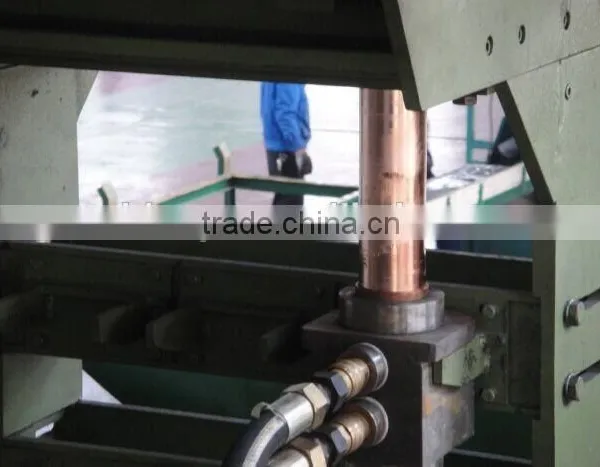

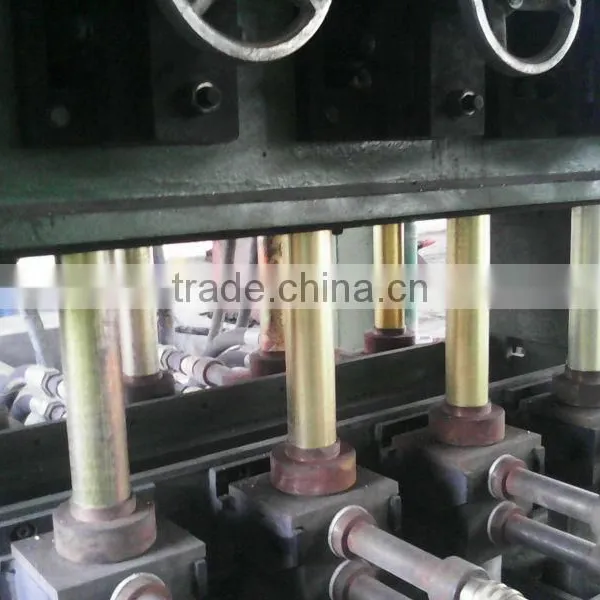

The casting operation is achieved by servo motor. Its speed is adjustable by presetting the parameter of dwell-pull movement via touch-screen and PLC. The pinch roller groups are equipped on the panel, driven by a main drive shaft. Each pinch roller group can be working individually. The copper rod is pulled out intermittently by V-type rollers. The power generated by servo motor, via reducer, is transferred to the main drive shaft. There is a tracing system driven by an individual AC motor, to control the level of molten metal.
