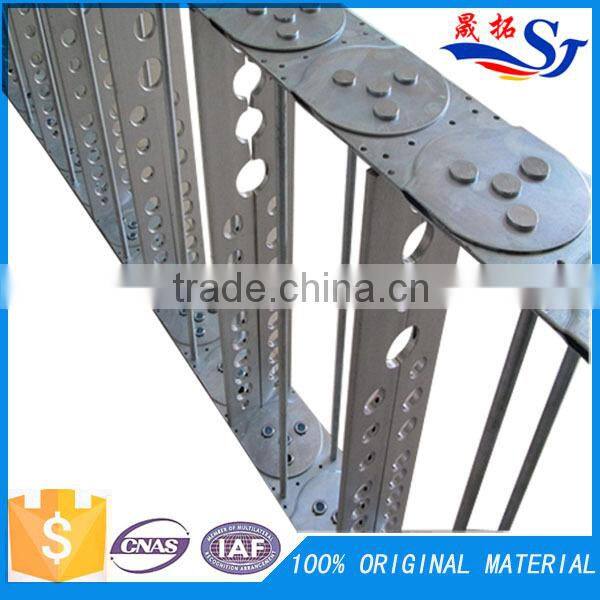

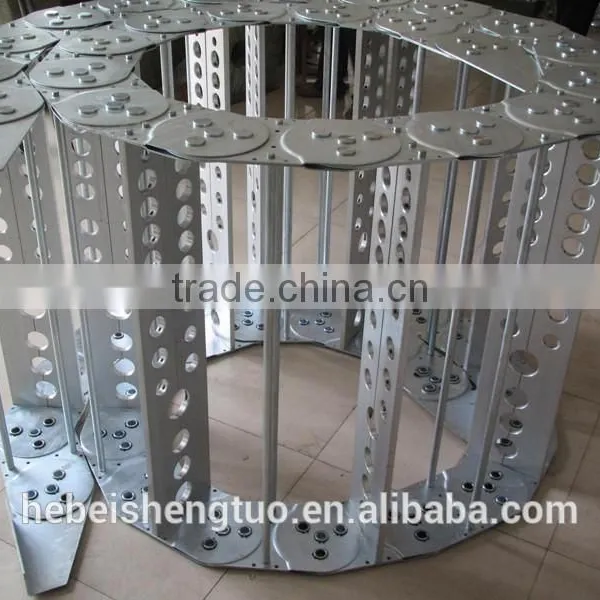

steel moving chain feature:
1.suitable for installing a large quantity and heavy cables ,oil pipes,or gas pipes
2.allow suspending installation,not need supporting
3.big length is allowed
4.different supporting board : SLS(form supporting board)SLP(plastic spacer) SLA(aluminium alloy supporting board)
5. supporting plate type:intergrated type,combinated type,frame type
6.TLG cable drag chain's size
type |
Bending radius |
pitch |
Max aperture |
Chain’s H |
Chain thickness |
Divider plate thickness |
The distance between hoses on the connector |
The hose diameter on the connector |
TLG20 |
75.100.150.200.250.300 |
75 |
32 |
50 |
8 |
3.5 |
30 |
90 |
TLG30 |
115.150.200.250.300.400 |
100 |
50 |
75 |
10 |
3.5 |
50 |
11 |
TLG40 |
185.200.250.300.400.500 |
125 |
70 |
100 |
14 |
3.5 |
70 |
13 |
TLG50 |
250.300.400.500.600 |
175 |
118 |
150 |
14 |
4.5 |
115 |
13 |
TLG50’ |
250.300.400.500.600 |
180 |
118 |
150 |
14 |
4.5 |
115 |
13 |
Proudct Show

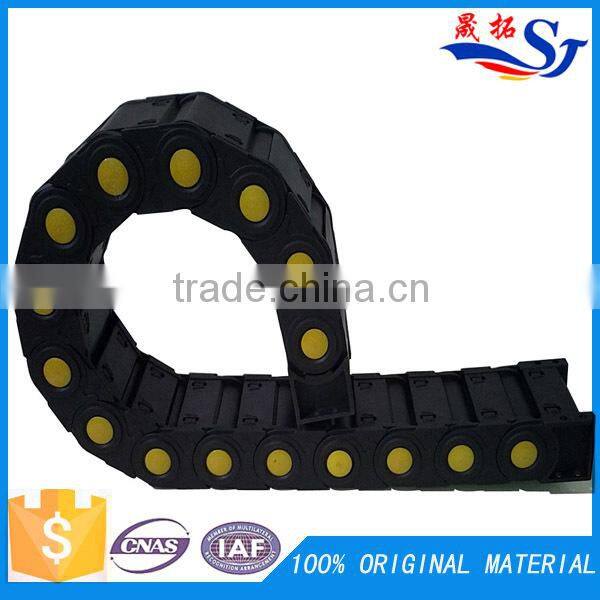

(openable type ,yellow dots square ending brackets ) (close type,yellow dots slope ending brackets)

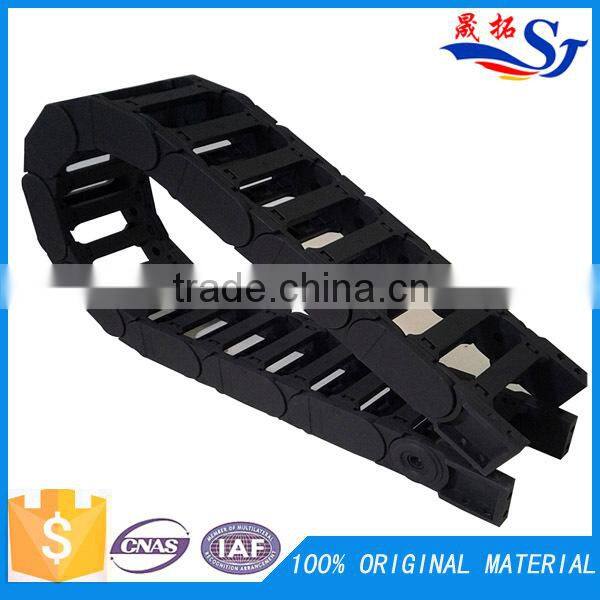

(openable type ,black ,square ending brackets) (close type,yellowdots ,square ending brackets)

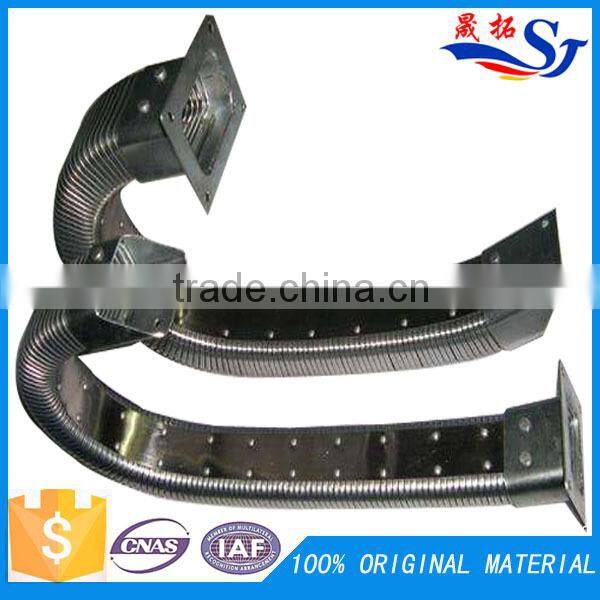

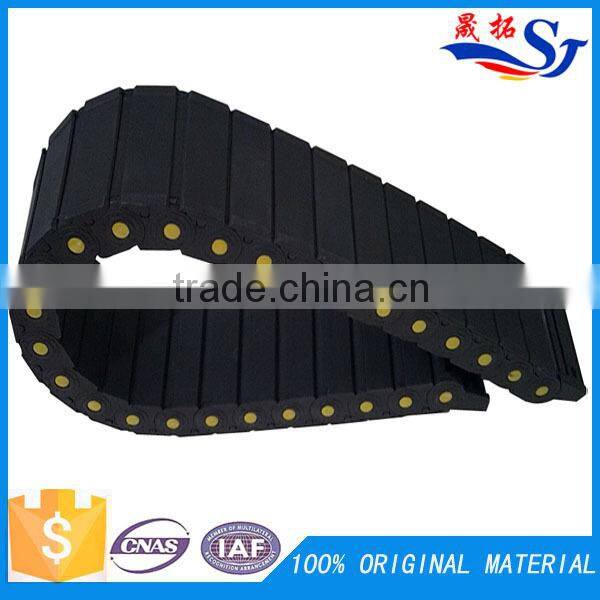

(small chain 8x8--10x20 ,slope ending brackets) (rectangle metal hose )
(DGT Conduit Shield) (Metal Cable Chain )
Our engineering plastic cable track have two standard .One is made from pure raw material (the perfect quality) . The other is made from 50% first-class material and 50% secondary raw material (the generaly quality) .And the prices are different .You can choose as per your demand .
Products description of size
Type 7.7 |
TP 15 |
TP18 |
TZ25 |
TZ30 |
TZ35 |
TZ45 |
TZ56 |
TZ62 |
TZ80 |
7X7 |
15X15 |
18X18 |
25X25 |
30X25 |
35X50 |
45X50 |
56X100 |
62X100 |
80X100 |
10X10 |
15X20 |
18X25 |
25X38 |
30X38 |
35X60 |
45X60 |
56X125 |
62X125 |
80X125 |
10X15 |
15X30 |
18X35 |
25X50 |
30X50 |
35X75 |
45X75 |
56X150 |
62X150 |
80X150 |
10X20 |
15X40 |
18X40 |
25X57 |
30X57 |
35X100 |
45X100 |
56X175 |
62X175 |
80X175 |
|
15X50 |
18X50 |
25X75 |
30X75 |
35X125 |
45X125 |
56X200 |
62X200 |
80X200 |
|
|
|
25X103 |
30X103 |
35X150 |
45X150 |
56X200 |
62X250 |
80X250 |
|
|
|
|
|
35X175 |
45X175 |
56X300 |
62X300 |
80X300 |
|
|
|
|
|
35X200 |
45X200 |
56X350 |
62X350 |
80X350 |
|
|
|
|
|
35X250 |
45X250 |
|
|
80X400 |
|
|
|
|
|
|
45X300 |
|
|
|
More Details
>> Working Life : 5 million reciprocating ,under normal conditions
>> Max operating speed :5m/second
>> No Bending Range : Generally 2.5m ,depend on the size
>> Bending R : when order ,show me the bending R
>> Ending Brackets : size 7x7 ----- size 18x50 ,slope ending brackets ,others square endings
>> Color :size 7x7--size 18x50 black color ,size 25x25----size 80x400 black ,and black with yellow dots available
Our Service
prfessonal & Passion Sales team 24 hours at your service
Participating in the various exhibitions help you to know us more completely
sample could be sent in 1-2 days
OEM of customized products / logo / brand / packing is accepted
small qty accepted & quick delivery

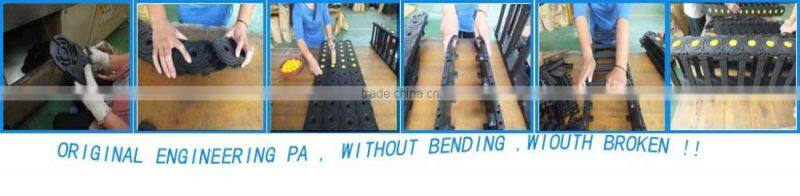

Process of Making
Why Us
- our own Product Development Team will regularly update new products.
- Product diversification for your choice
- Factory sale directly with professional sale team
- For Best price High quality and favorable service
- Express service for some urgent delivery orders to meet customer request
Company Show
Our company has rich force in technique and manufacturer,and many experts with a few ten years' experence ,engineering technical personnel and management presonnel .It also has advanced and superior CNC machine and professional equipment over 30 sets.The manufacture capacity leads the first in domestic and abroad market.The strict quality management system and perfect service system are the strong guarantee for the quality of products and after-sale service.The products are widely used in the fields of CNC machine,plant equipment ,automatic equipment ,ship and hoisting machinery etc.The products got acclaim form customers in domestic and were sold to the developed aountries and regions in Eurpe and Amercia .

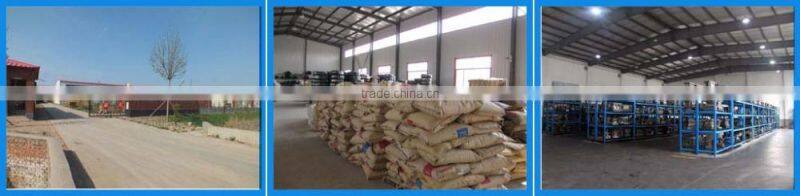

Our factory inside Show

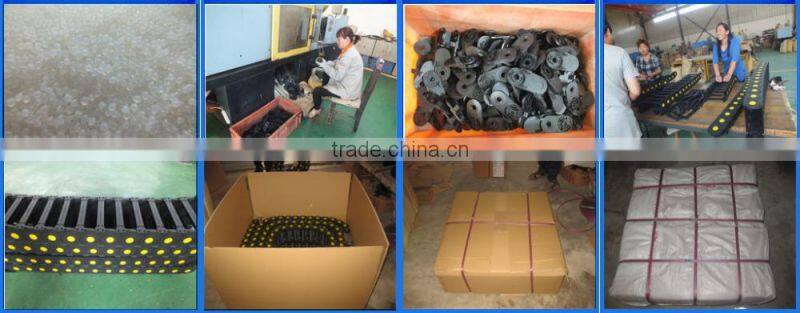

Pure material -plastic injection -combine- package.
You can check each processing .From producing to dispaching ,we operating and control strictly .
The management principle of our cmpany is "honest ,credibility,cooperation and mutual benefits."The quality oplicy is "seek for win and perfect by quality and create famous brand"We think about customers' demands all the time ,so provide high-quality service and over-value servcie for customers is the aim of our company.To make "Shengtuo"products become the trusted brand of customer is our goal .When you choose and purchase:Shengtuo"products ,you could get the products ,and that the quality guarantee for before -sale and after-service
Packing & shipping
Selling Units : by meters
Package Size : 80x80x40
Package weight :70kg/carton
Package Quality : three corrugated paper carton ,bubble sheet inside
Market
Many clients come our factory ,some for cable chain ,some for cooling hose and some for machine shield .By now ,we have been cooperation six years or more .So new friends ,you are welcome to join us ,We ensure we will bring you more competitive favourable factors .
Contacting
Principle for selecting drag chains
Inner height:Take the most thick piece of the internally installed cable ,oil pipe,gas pipe or water pipe as the reference height plus10% of the space height at least as the inner height.If overlapping ,take the overlapped height as the actual height .
Inner width:Take the sum of the outside diameter of the thicker cables ,oil pipes ,gas pipes or water pipes as the reference of the inner width and leave at least 10% of the space as a margin .
Radius of a bend:
Take the biggest radius of a bend of a cable ,oil pipe ,gas pipe or water pipe as a reference value and leave 10% of the space as a margin .
Installation principls for internally laid cable ,oil pipe,water pipe or gas pipe:
15%of the space should be reserved as a margin so that the inernally laid cales and oil pipes can move freely and there will not be any atress on the drag chains in the direction of radius.For those cables that are quite different in diameter ,they should be laid separately and the weight should be balanced evenly.They can also be seprated from one another by using spacers if necessary .
When operating in high speed of high frequency,the horizontally laid cables should be in a parted-way and should not be overlapped .If too many cables ,gas pipes and oil pipes laid together,it is recommended that spacers be used .
Installation for Cable Drag Chains:
Put a screw driver vertically into the opening hole at both ends of the cover and then open the cover.Put the drag chain for cables and oil pipes acording to the instructions provided. Put the cover back .Note that the fixed end and the moving end of a cable should be fixed by using a tension device .When used in a long sliding service ,it is recommedned to use a guiding grove,please ask our technical personnel about the usage of the guiding grove .
