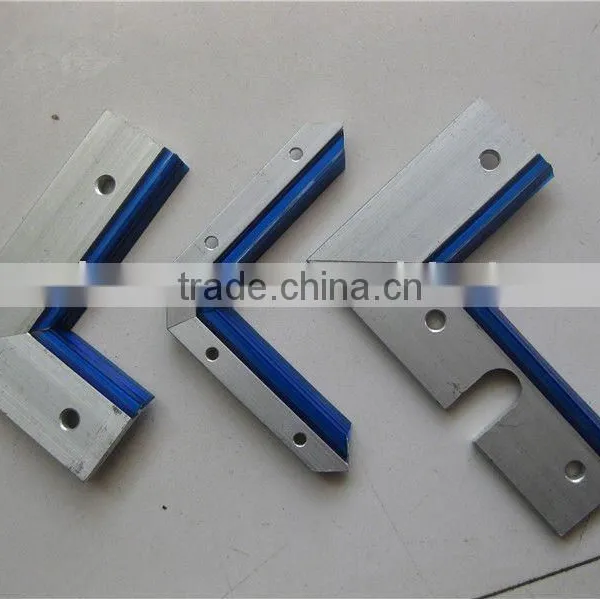

anti-aging machine guide way wiper

Specifications

1.Factory supply machine guide way wiper
2.Length:500mm-1000mm
3.Made from aluminum alloy ,stainles steel plate
4.Have store

Hebei Shengtuo Machine Accessories Producing Co.,Ltd

                    Sales Tenet:quality is for developing ,credit is for existing !



The machine guide way wipper with standard length ranging from 500mm to 1000mm are built with alumium aloy or stainless steel plate .It's features:anti-oil,anti-wearing,anti-aging ,auto-compensation scraping piece.The right angle-and swallowtail-shaped scrapper assemblies can be formed according to the shapes of the guide





machine guide way wiper size for reference





	G*B-18	G*B-25	G*B-30	G*B-35	G*B

	G*B-18	G*B-20	G*B-25	G*B-30	G*B-35	G*B-40
H	18	20	25	30	35	40
A	6	6-10	6-15	6-15	6-15	6-15
D	5-6	5-7	5-7	5-7	5-7	5-7







 Drawing for Reference



Type Drawing
