paraffin pellet making machine /Wax granulator /Melt granulator making machine /resin granulator machine
Features
Melting material, through material distributor, drips down to the steel belt which is moving evenly. Under the belt, there are continuous sprayer and cooling device which can cool, solidify and pelletize material on belt as soon as possible. According to material feature and process requirements, outward turning, rotating, reciprocating, gate types are available for your choice. Based on material feature and use requirements, material distributing forms like incontinuous dripping, continuous strip, full-width overflowing are available, and with hemispheric, bar, flake products.
Data information
Model |
JXSP-60 |
Machine width |
600mm |
Machine length |
12000mm |
Size of mould |
2.2mm |
Size of products |
4-8mm |
Product’s shape |
hemispherical |
Capacity |
100-150kg/hour for paraffin |
|
200-300kg/hour for resin |
|
200-300kg for RD |
Motor |
0.7 m3/h 5kw+1.5kw |
Voltage |
380V,50HZ,3 phaze |
Water pump |
pressuer: 0.3mpa water flow: 15-20 m3/h (equipped by user) |
Pictures
Finally products

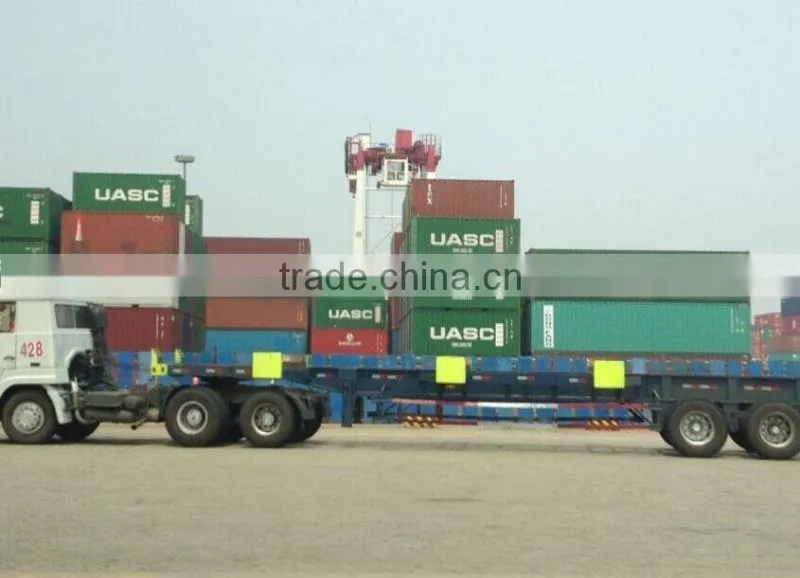

Transporting (usually by sea and railway, if you have any special requirements about tranporting,
feel free to contact us)
About our factory
If you are interested in our machine,contact me anytime.
