High Capacity Floating Fish Feed Pellet Machine/animal Feed Pellet Machine

High Capacity Floating Fish Feed Pellet Machine/animal Feed Pellet Machine photo-1
US$ 1 - 8,500 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
HX
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Henan, China
Brand Name HX
Model Number HX120
Application Fish
Voltage 380v
Power(W) 37kw
Weight 1500kg
Dimension(L*W*H) 21*2.8*3.0m
Certification ISO
Warranty 1 YEAR
After-sales Service Provided Engineers available to service machinery overseas

floating fish feed pellet machine

High capacity floating fish feed pellet machine/animal feed pellet machine



Introduction:

Floating fish feed machine is widely used for producing grains into high-grade aquatic feed pellets for fish, catfish, shrimps,

crab etc. The puffing fish feed pellets can float on the water surface without dissolution for over 12 hours. According to your

 requirement and production scale, floating fish feed machine can be classified into dry type machine and wet type machine.


 Features:

1.According to different requirements, variety shapes of high-grade feed pellets for fish, shrimps .etc can be produced.

2.The finished pellets can keep floating for 3-15 hours without pollution to water.

3.The floating time can be controlled by the puffing degree adjustment.

4.Floating fish feed machine can make pellet from diameter.1.0mm-20mm just by changing the mold.

5.Electric heating device is adopted which can improve the feed expansion rate and pellets floating time.

6.High temperature and high pressure cooking process can kill the salmonellosis and bacterial infections and also makes

 the pellets easily to digest.

7.The cutting device can be adjusted to make pellets of different length.

8.The wet type machine needs a boiler to make steam which can conduct steam to the conditioner and ripen the raw

 material in advance



Technical parameters:

Model
JX- FF52
JX-FF65
JX-FF75
JX-FF95
JX—FF105

Capacity --- kg/h

50—60

80-100

140--160

200--250

350-400

Pelleting Diameter--- mm

1.2—6

1.2—10

1.2—10
1.2—10

1.2--12

Motor Power--- kw

5 5—7 5

7 5--11

11--15
15--22

22--37

Cutting Power--- w

750

750

750
750

750

Screw Rod Diameter-- mm

52

65

75
95

105



























 Mold:

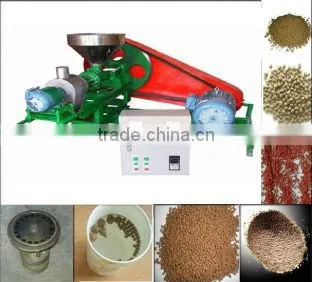

High capacity floating fish feed pellet machine/animal feed pellet machine



Floating fish feed pellets:

High capacity floating fish feed pellet machine/animal feed pellet machine



Company certification and customers cooperation:

High capacity floating fish feed pellet machine/animal feed pellet machineHigh capacity floating fish feed pellet machine/animal feed pellet machine
