Calcium Carbonate Dustless Chalk Stick Making Machine

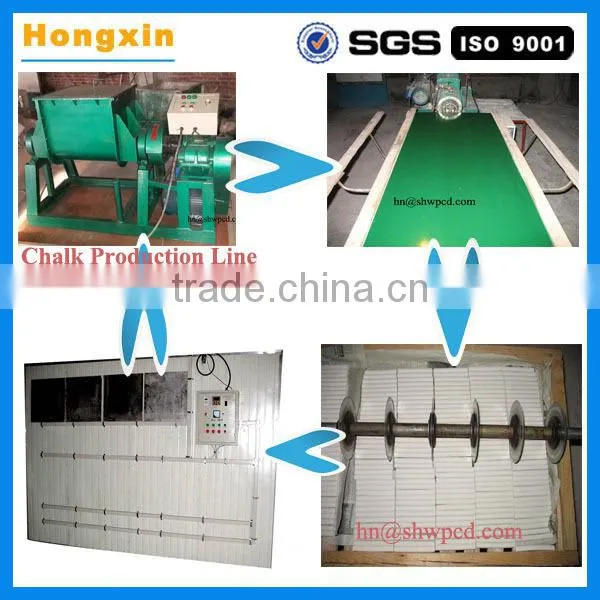

Work process of machines:

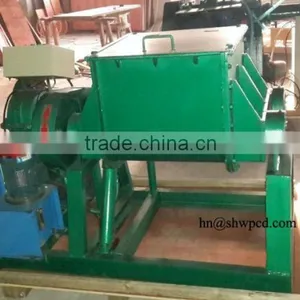

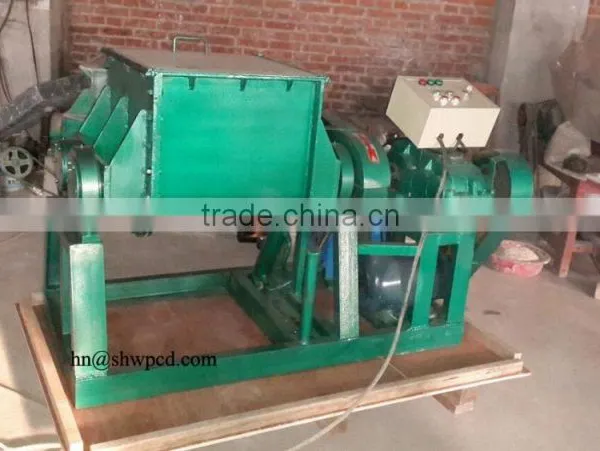

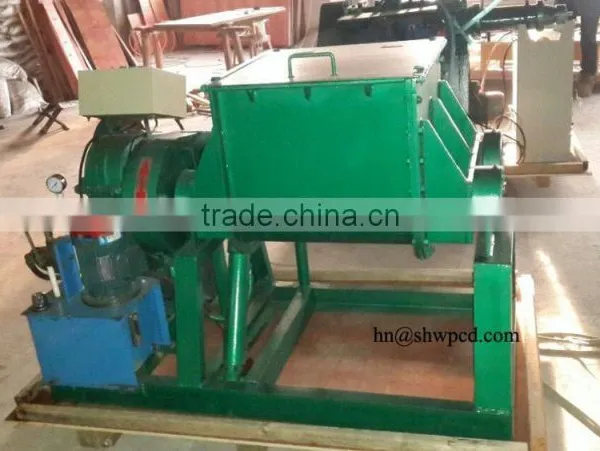

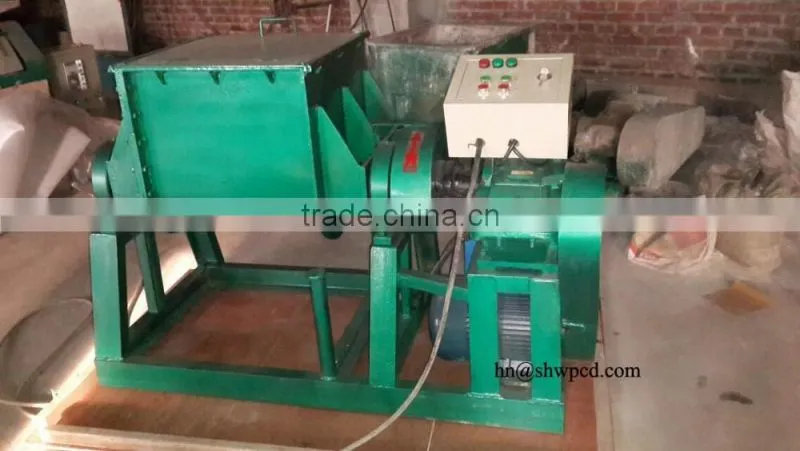

First: kneading machine

The parts which will explore to raw material are made of stainless steel to insure the purity and quality of final product.

Parameters:

Model

JXNH-100

Capacity

100 L

Mixed speed

35/22 round/min

Motor

5.5 kw 380V

Dimension

2300*1000*1000 mm

Weight

1000 kg





















Second: Extruder

Model

JXYA-100

Diameter of extruder

100 mm

Running speed

28-200 r/min

Motor

4.5kw 380V

Capacity

80000-9000 pieces/8 hours

Dimension

2000*900*1450 mm

Weight

1400 kg

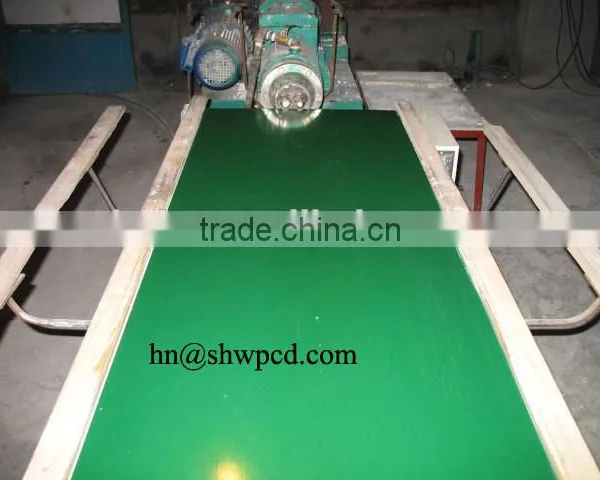

Third: Belt conveyor

Model

JXTYL-200

Motor

220 V 50/60HZ

L/W

2000/580mm

Running speed

0-5m/min

Made of

PVC

Dimension

2300*1000*1000mm

Weight

300kg



























Fourth: Stainless Cutter

Made of

Stainless steel

Thickness of knife

0.5mm

Dimension

1300*900*1000mm

Weight

80 kg























Fifth: Drying stove

Model

JXYA-10

Temperature Range

30-120 °C

Motor

15 kw

Weight

1000 kg

Dimension

3800*1700*2560mm

























Sixth: Chalk cooling

Made of wood

Dimension: 900*450*60mm

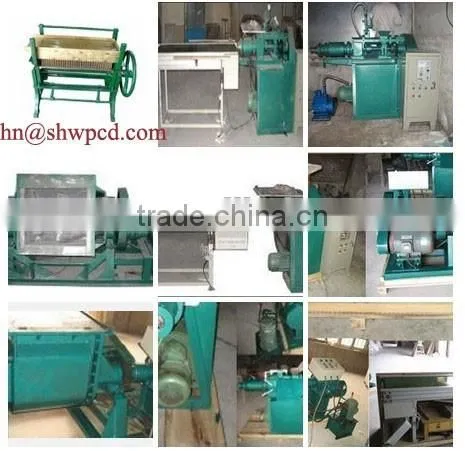

Package of machine:

Dustless Caco3 Chalk Making Machine

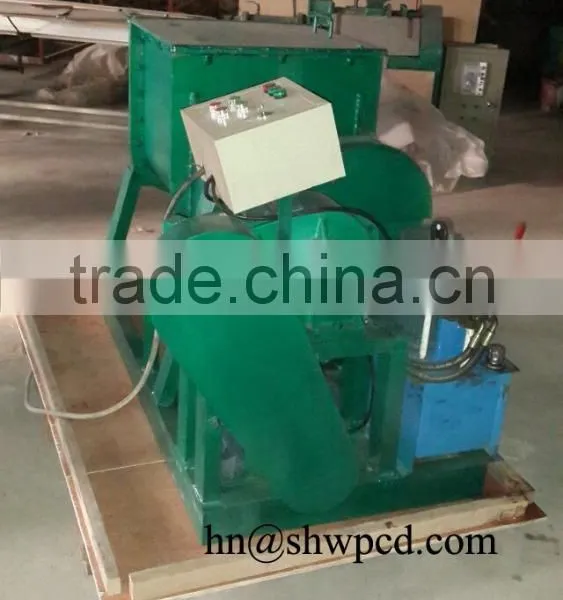

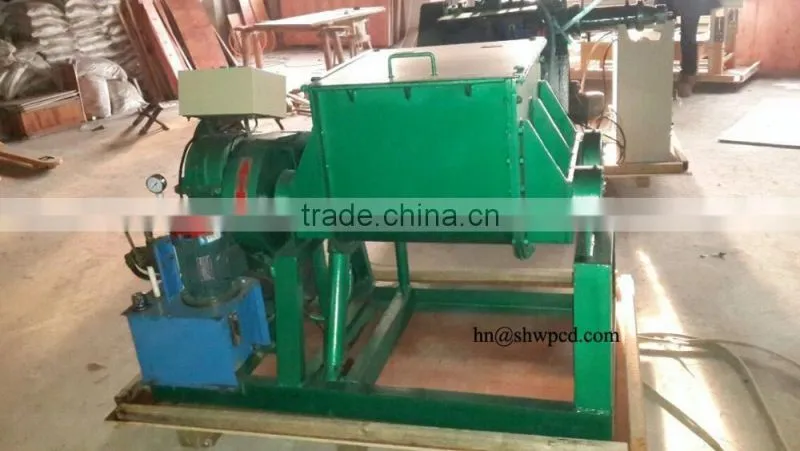

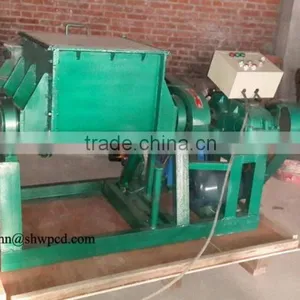

1.Kneading Machine

Dustless Caco3 Chalk Making MachineDustless Caco3 Chalk Making Machine

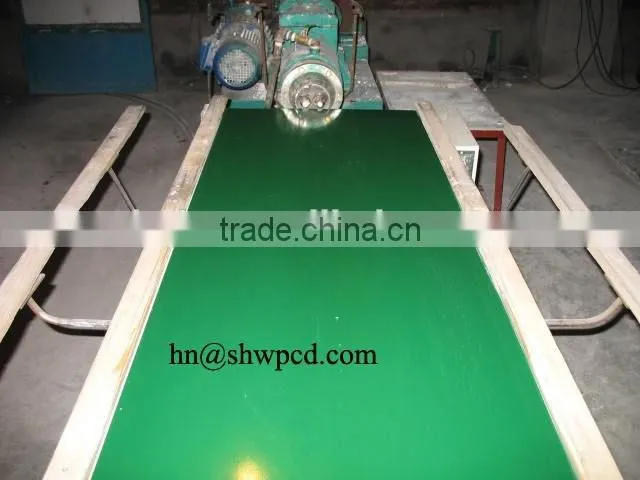

2.Injecting Machine and Conveyer Belt

Dustless Caco3 Chalk Making Machine

3.Cutter

Dustless Caco3 Chalk Making Machine

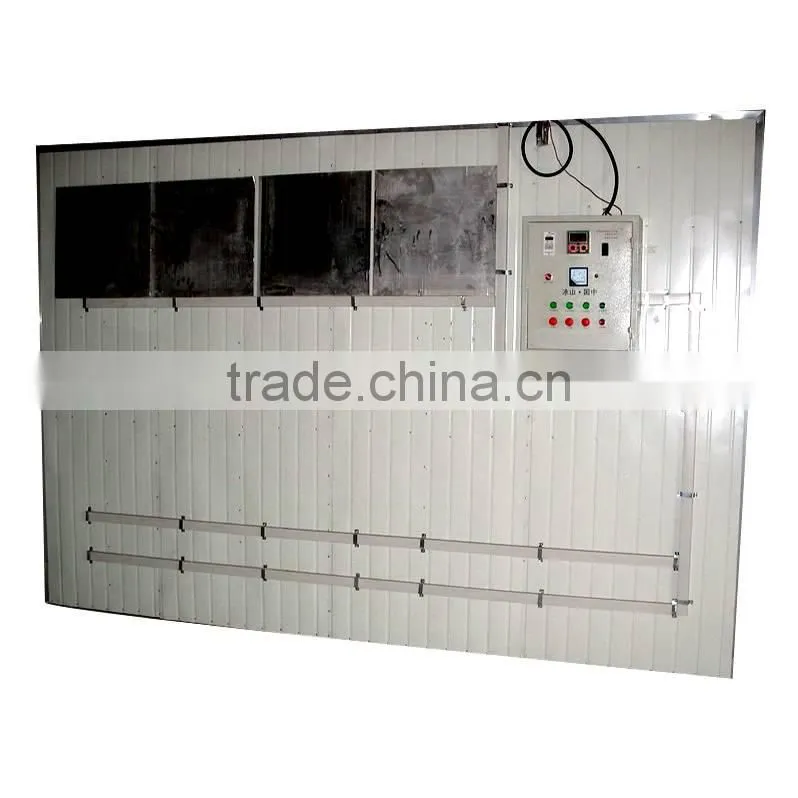

4.Oven

Dustless Caco3 Chalk Making Machine

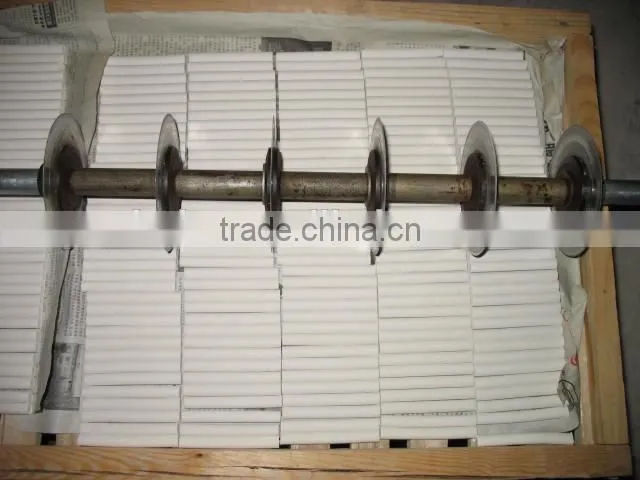

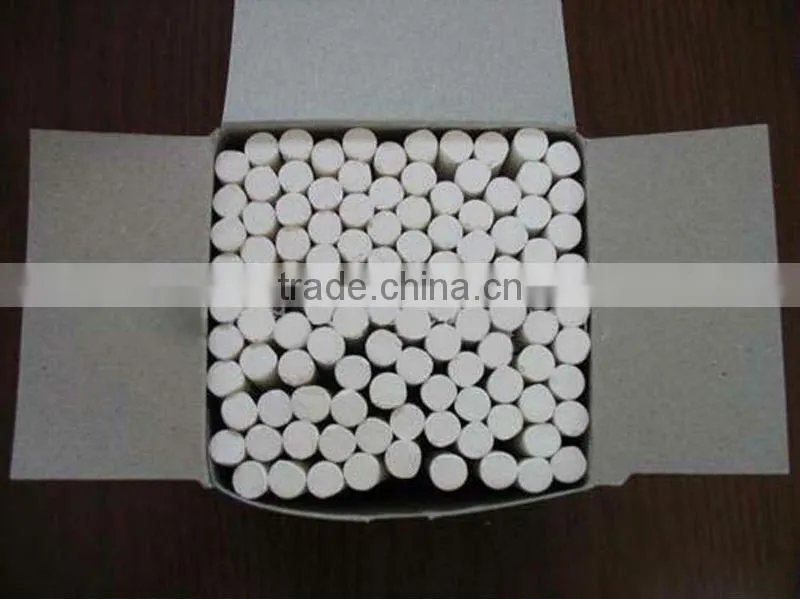

Color chalks:

Dustless Caco3 Chalk Making MachineDustless Caco3 Chalk Making Machine
