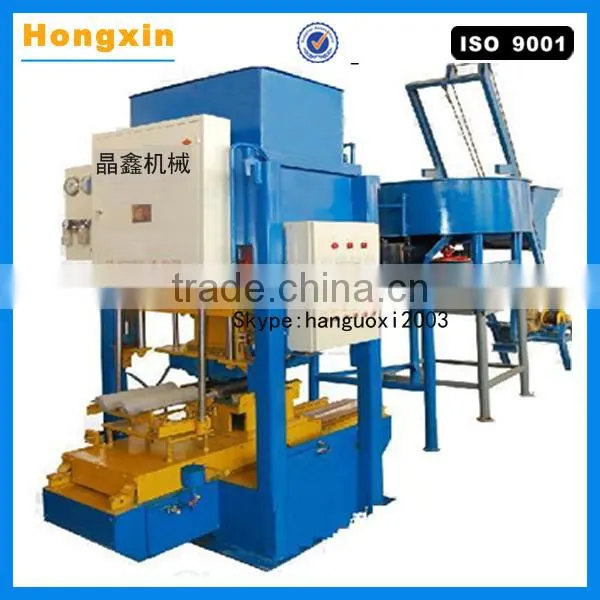

Factory supplier Colored concrete tile press machine/colored roof tile forming machine
Features Characteristic:
A. Easy operation and manintenance
B. Low cost and energy consumption
C. Few operators, low labor intensity
D. Stable performance and reliable safety
1. Compact structure, humanized design and easy operation. PLC computer control system makes both automatic operation and manual operation available.
2. Advanced pneumatic and hydraulic structure to make sure high efficiency and stable performance.
3. Multi-function: Matched with various moulds, it can produce both roof tiles and floor tiles.
4. The end products possess higher strength, very nice edges and even surface.
5. Impored hydraulic system(Yumen) and electric control system(Missubishi) makes the machine has a long lifetime and more stable.
Main information:
Model |
JXCW-125 |
|
Size |
3120*1750*2650mm |
|
Moulding cycle |
8-10s |
|
Forming pressure |
1250 KN |
|
Weight |
5.5T |
|
|
Roof tile size
|
Length |
<500mm |
Width |
<400mm |
|
Thickness |
<10mm |
|
Motor |
5.5kw |
|
Capacity |
3500-4000 piece/day |
|
Working process for line:
1. Frist step,put cement and sand into the bucket elevator, then transport automaticlly into the rolling mixer,at the same time,you must add some water into the mixer to fully mix the raw material.
2. Second step,after mixing, the mixture concrete raw material are transported into the dosing feeder,then measurable mixture lay down the raw material into the roof tile press machine.
3. Third step,concrete tile can be formed by high pressure and hydraulic press,the pressure is about 125 tons. So the produced tile is very stable and strong.
4. Fourth step,the pressed tile needs to dry for about 10 days.Then you can paint the roof tiles.
Product Showing:
