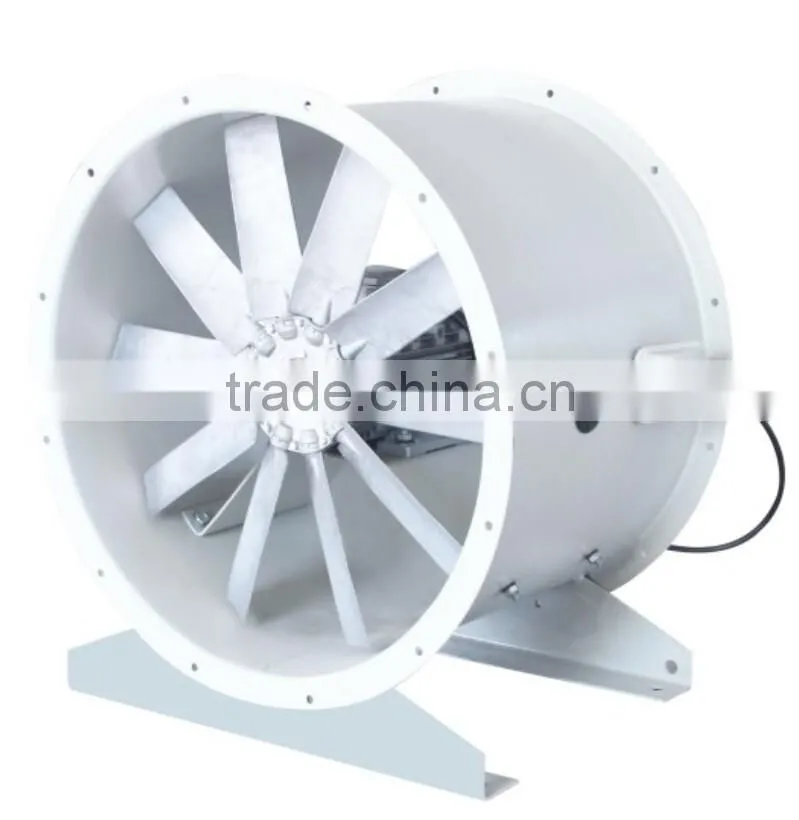

Axial Flow Fan

 ACF-MA series of axial flows fans is in a cylinder, the outsid view is a cylinder shape.

It can be used for local ventilation.

Adopting axial flow wheel hub type impeller and high temperature resistant motor, the fan is characterized by high efficiency, low noise, reasonable structure, the small size, easy installation.

The ventilation effect is obviously good and safe.

It can be connected with ventilation duct to blow the air to the designated area.

2. Features and construction

ACF Axial flow-fans are specially manufactured for all applications and mounting positions in case size 315 up to 1600 mm diameter.

The performance range is from 1000 up to 230000m³/h on air volume, at total pressure up to 1500 Pa.

Performance curve of the sample applied to conventional axial flaw fans, in the case of sepcial purpose fans, such as high temperature, high pressure, explosion-proof, fire smoke, corrosion resistance, etc., contact with company please.

(1) Casing

Fan case and motor fixing are made of mild steel, all steel parts are hot dip galvanised after manufacturering.

(2) Impellers

Hubs and blades are made of die-cast aluminum alloy, the aerodynamical profile guarantees high efficiency and low noise.

(3) Motors

The fan uses as standard colsed squirrel cage matars rated to IEC34, FF required also in accordance to EPACT.

The standard motors have Class F and endosure IP55.

Continuousoperating ranges from -40℃ to 40 ℃, other operaling conditions on demand.

The motor bearings have a L10 life.

3. Forms of running

4. Sound levels

The ascertaining of the sound level follows the reverberant room method according to AMCA 300.

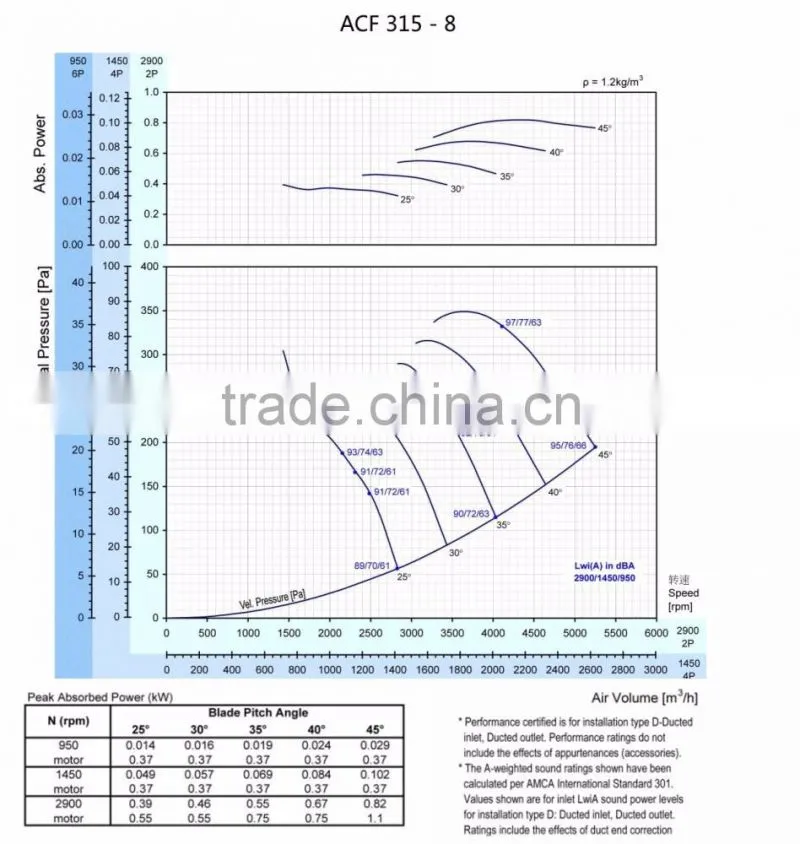

In the performance curves shows the A-weighted sound power levels.

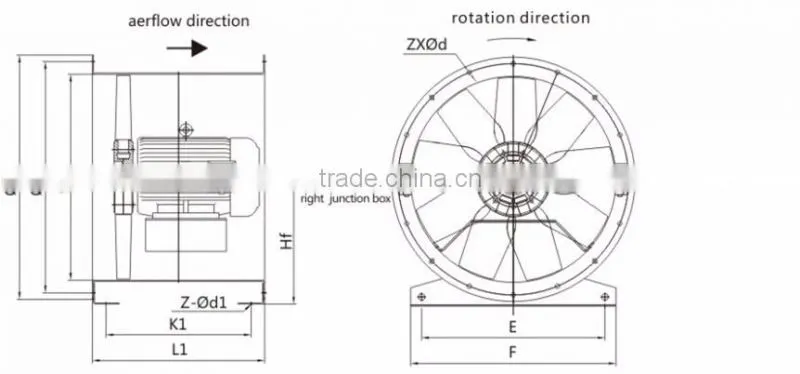

5. Outside drawing

 6. Overall dimension

Zhejiang Lion King Ventilator Co., Ltd., a professional manufacturer of various axial fans, centrifugal fans, air-conditioning fans, engineering fans, mainly consists of Research and Development Department, Production Department, Sales Department, Testing Center, and Customer Service.

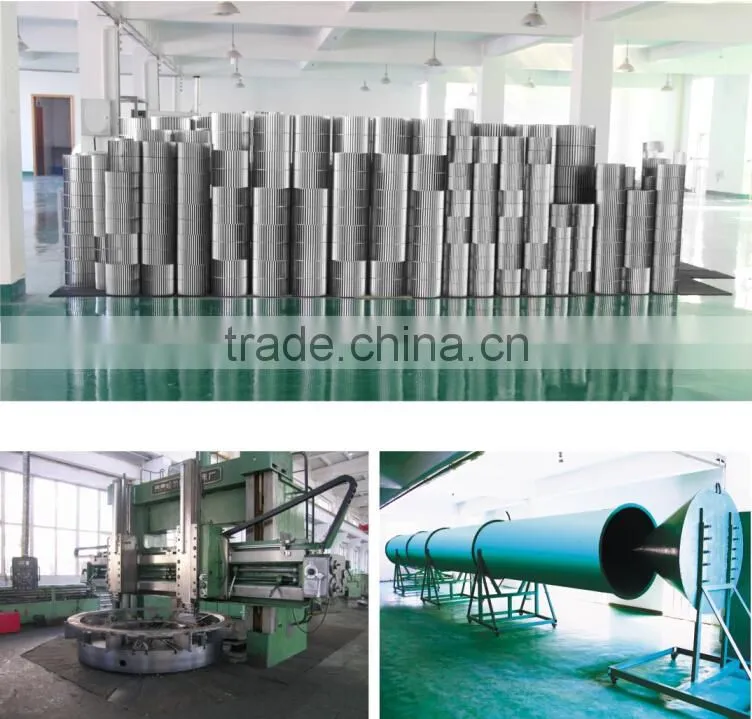

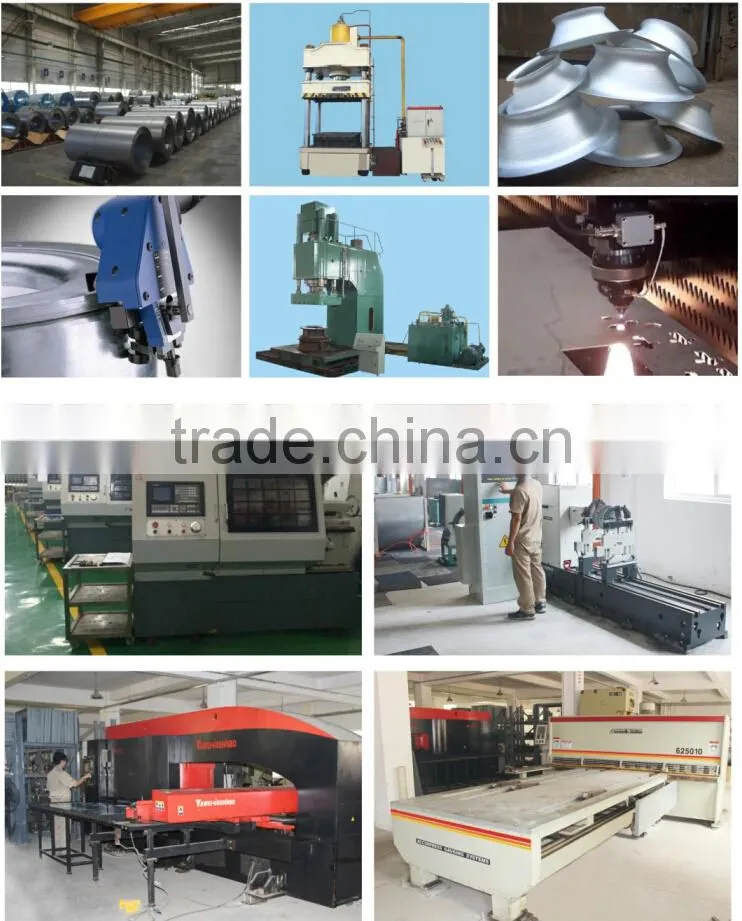

It is located in Taizhou City, Zhejiang Province, which is near to Shanghai and Ningbo with very convenient transportation system. The company has CNC lathes, CNC machining centers, CNC punch press, CNC bending machine, CNC spinning lathes, hydraulic press, dynamic balancing machine and other equipment.
The company has perfect comprehensive Testing Center, which includes facilities for air volume test, noise test, torque force and tensile force test, high and low temperature test, overspeed test , life test etc.
Relying on its mold technology center and engineering technology center, the company has developed forward curved multi-blades centrifugal fan,backward centrifugal fan, voluteless fan, roof fan, axial flow fan, box-type fan series with more than 100 specifications of metal fans and low noise fans.
The company attaches great importance to quality management, and was awarded the ISO9001 international quality system certification very early. At present, the "LION KING" brand has enjoyed great popularity and well-deserved reputation. Meanwhile, the products are also exported to many countries, and honored with consistent high praise and recognition by domestic and foreign customers.
The company always insists the business philosophy of "Safety First, Quality First", and are keeping to serve all customers based on "honesty, innovation, rapid response, and full services."

   24-hours on line service with excellent sellers.

NOTE:

Ordering the fan

After selection of the fan best for your needs please order as follows:

1. Fan type and installation

2. Fan code and type

3. Quantity required

4. Duty required standard air and temperature, such air volume in (m³/h), static pressure or total pressure in (Pa)

5. Motor rated power(KW)

6. Electrical supply

7. Ancillaries required
