COOKWARE GRINDING MACHINE
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Machine Type:
Glass Edging Machine
Place of Origin:
Shandong, China
Brand Name:
HUAXING
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Machine Type
Glass Edging Machine
Place of Origin
Shandong, China
Brand Name
HUAXING
Certification
Other
After-sales Service Provided
Engineers available to service machinery overseas
Specifications

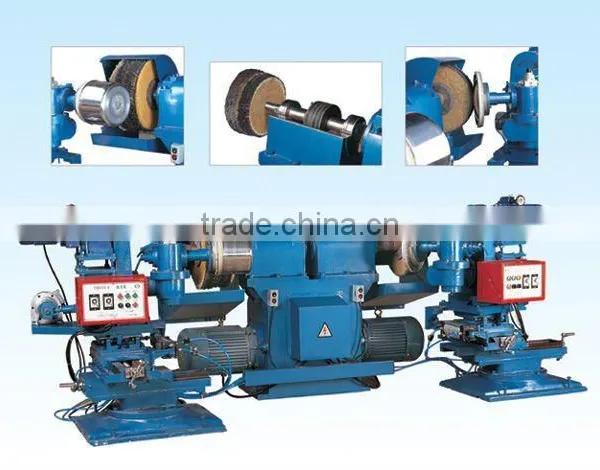

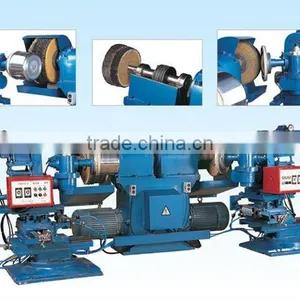

PROFESSIONAL COOKWARE PROCESSING MACHINE USED FOR GRINDING THE cookware SHEET1. Features
This model is new generation of 2MB4140 series product which been improved for better functions and performance. It is more compact than old model and energy saving. This machine allows two operators to work together.
Using flax, cloth or PVA material for the abrasive wheel and shape to fit the work piece outline for rough and mirror polishing.
The machine is suitable for copper, aluminum, stainless steel ware. For operation, first fix the work piece to the chuck, apply suction by switch on the manual handle, adjust the travel space then press “Auto reciprocate” button. The machine start running. When reaching the set work time, the machine stop and withdraw the work piece, by switching off the manual handler to unload the work piece.
Main Technical Parameters
--Abrasive wheel motor power 22KW
work piece motor power 0.75KW x 2
reciprocate motor power 0.37KW x 2
--Main shaft speed 2160RPM
work piece speed 28-140RPM(adjustable)
--Air source pressure 0.5-0.8Mpa
--Chuck holding type vacuum suction
--Valide work piece dimension
pot body ≤Φ400 mm x 300 mm (dia.xH)
pot bottom/pot cover ≤Φ400 mm x 50 mm (dia.xH)
--Abrasive wheel size ≤Φ430 mm x 330 mm (dia.xthickness)
--Dimension 3500mm x 1850mm x1500 mm (LxWxH)
