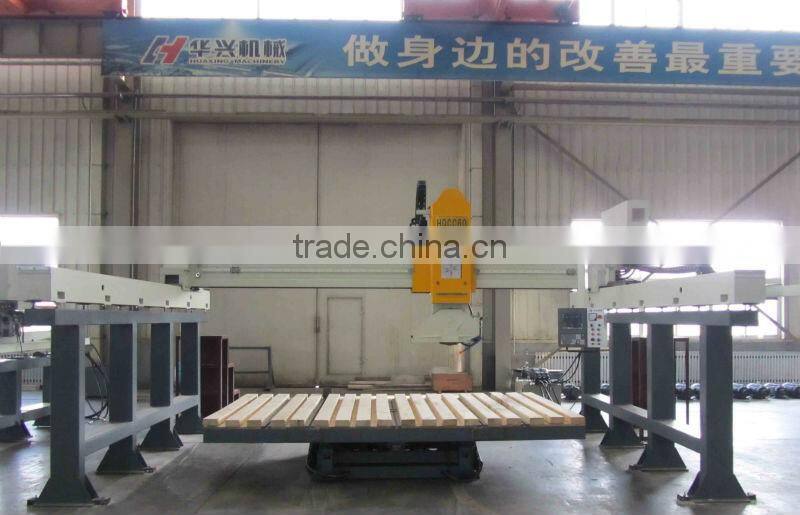

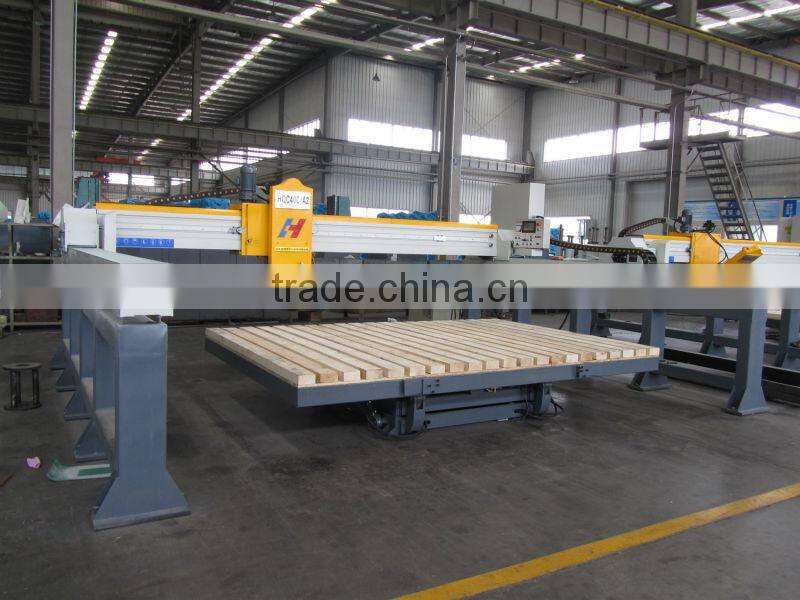

Huaxing Good Quality Cutting Machine
- QINGDAO
- T/T
You May Like
Product Details
| Condition | New | Type | Stone Cutting Machine | |
| Use | Granite | Place of Origin | Shandong, China | |
| Brand Name | Huaxing | Model Number | HQC40 | |
| Voltage | 380V etc. | Power(W) | 15kw | |
| Dimension(L*W*H) | 5700*4500*3200mm | Certification | CE/UL | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Product Description
model | HQC40C | HQC40D | HQC80 | HQQ120 |
Max. disc diameter (mm) | Φ400-Φ600 | Φ400-Φ700 | Φ600-Φ800 | Φ1000-Φ1200 |
max cross stroke | 3500 mm | 3500 mm | 3300 mm | 3300mm |
max longitudinal stroke | 3200mm | 3200mm | 3200mm | 3200mm |
Max up-down stroke | 300 mm | 380 mm | 350 mm | 600mm |
table max tilting degree | 85° | 85° | 85° | ------ |
table rotating degree | 90° | 360° (0°, 45°, 90°,180°, 270°) | 90° | 360º (Manual) |
Table size | 3250×2000mm | 3250×2000mm | 3250×2000mm | 3000*1200mm |
guide rail of side beam and main crossbeam | Straight guide rail | Straight guide rail | Straight guide rail | Straight guide rail |
Main motor power | 15KW/4 | 15KW/4 18.5KW/4 (option) | 18.5KW/4 | 22kw/6 |
machine size | 5700*4500*3200mm | 5700*4500*3200mm | 5700*4500*3530mm | 6800*4500*4000mm |
