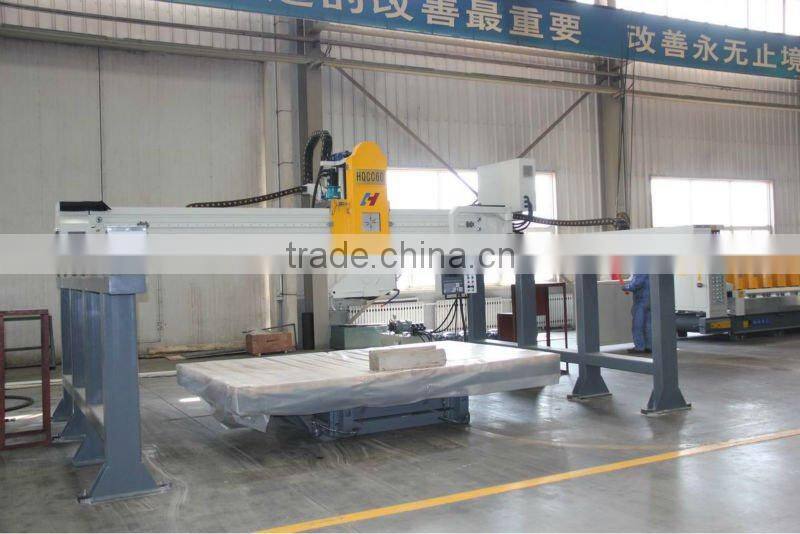

HQCC60 Granite Bridge Saw for Sale

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Stone Cutting Machine
Use	Granite	Place of Origin	Shandong, China
Brand Name	Huaxing	Model Number	HQCC60
Certification	ce	Warranty	one year
After-sales Service Provided	Engineers available to service machinery overseas

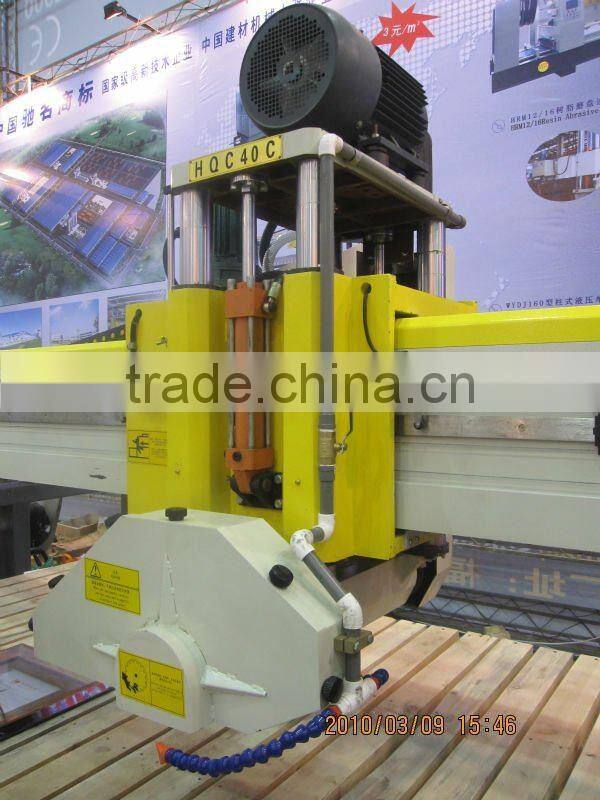

HQC40 Automatic Infrared Ray Bridge Cutter

1 .Uses and features :

HQC40 Bridge Cutter is ideal and special equipment for stone processing factory,

especially widely used in cutting big size non- metallic plates such as granite, marble, artificial marble and concrete plate etc..

Main technical parameter:

Type	HQC40A	HQC40L	HQC40E and HQC40B
max. Cross stroke of blade	3500mm
max. longitudinal stroke of blade	3300mm
max.Elevation stroke of blade	200mm
Max.cross movement speed of blade	12500mm/min
Max.longitudinal movement speed of blade	8500mm/min
Max. tipping angle of working table	85º
Max. angle of swing of working table	90º		360º
Angle of adjusting of working table	0º 90º		0º 30º 45º 60º 90º 120º 135º 150º 240º
Dimension of working table	3240*2000mm
The type of side-beam guiding rail	Straight glide guiding rail	Double V roller guiding rail	Straight glide guiding rail
Total capacity	19.1(15.1)kw (according to the requirements)		15.1KW
Main motor	15(11)kw (according to the requirements)		11KW
walking motor of carriage	1.5 kw
Woving motor of cross beam	1.1 kw
Oil pump motor	1.5 kw
Rated working pressure	0.7mpa
Overall dimension	610052003000
