SZSJ160 Artificial Stone Machinery

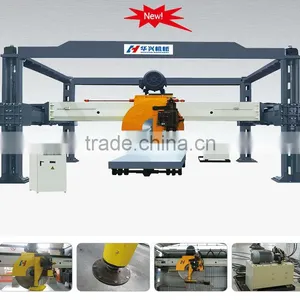

SZSJ160 Artificial Stone Machinery thumbnail-1
SZSJ160 Artificial Stone Machinery thumbnail-2
SZSJ160 Artificial Stone Machinery photo-1

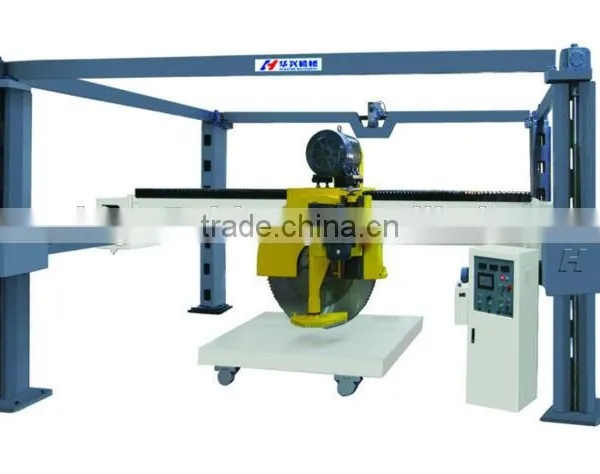

SZSJ160 Artificial Stone Machinery photo-2
US$ 1 - 1 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Stone Cutting Machine
Use:
Marble
Contact Supplier Request Quote Chat Now
Shandong Gold Rhino Huaxing Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Stone Cutting Machine
Use Marble
Place of Origin Shandong, China
Brand Name HUAXING
Model Number SZSJ160
Voltage 380V 50HZ
Power(W) 120.05KW
Dimension(L*W*H) 7700*5100*3800mm
Weight 22000KGS
Certification ce
Warranty 1 year
After-sales Service Provided No overseas service provided







SZSJ160 Four-column Two-way Diamond Disc Stone Sawing Machine, adopting diamond tools and high-speed cutting technology, mainly used for cutting and processing the blocks of marble and soft granite.

It has the following features:

1. When cutting the block to the maximum depth with vertical disc, it also can complete the bottom horizontal cutting with horizontal disc. If the top block is level, it can process from one layer to another directly.

2. It is easy to unload and with high ration of finished products.

3. It has the reasonable frame structure, high ratio of processing and working stable.

4. The blades sliding parts movement adpoting the hydraulic cylinder driven, adjustable feeding speed, and with fast return function, high working efficiency.
5. The end-beam adopting using rolls support and gear driven slicing structure, with high capacity, high slicing precision, long usage life, stable characteristics.
6, large size table, high load-carrying capacity, and having self-walking function, it can load large-size stone blocks.

7.The machine adopts PLC controlling system, so it has stable working conditions and high automatic.



Model

SZSJ160A

Marble

(hydraulic)

SZSJ160B

Granite

(lead screw)

SZSJ160C

(Option)

Maximum diameter of vertical disc

φ1600mm

Maximun numbers of vertical disc

1 pc

5 pcs (2cm)

1 pc

Maximum cross stroke

3700mm

Maximum vertical stroke

2200mm

Slicing moving stroke

2200mm

Maximum diameter of horizontal disc

Φ450mm--φ550mm

rotating speed of vertical disc shaft

695r(58m/s)

26,30,38,44m/s

rotating speed of horizontal disc shaft

2670r(77m/s)

Blade up-down speed

212mm/min

blade slicing speed

3-12mm/s

Feeding speed

0.3-16m/min

0.3-12m/min

0.3-16m/min

Walking motor

(oil pump)7.5KW

3+4.5KW

(oil pump)7.5KW

Up-down motor

5.5KW

Slicing motor

0.55KW

Main motor

90KW

Horizontal disc motor

15KW

Table motor

1.5KW

Total power

120.05KW

weight

21000Kg

22000KG

Overall dimension

7700×5100×3800mm

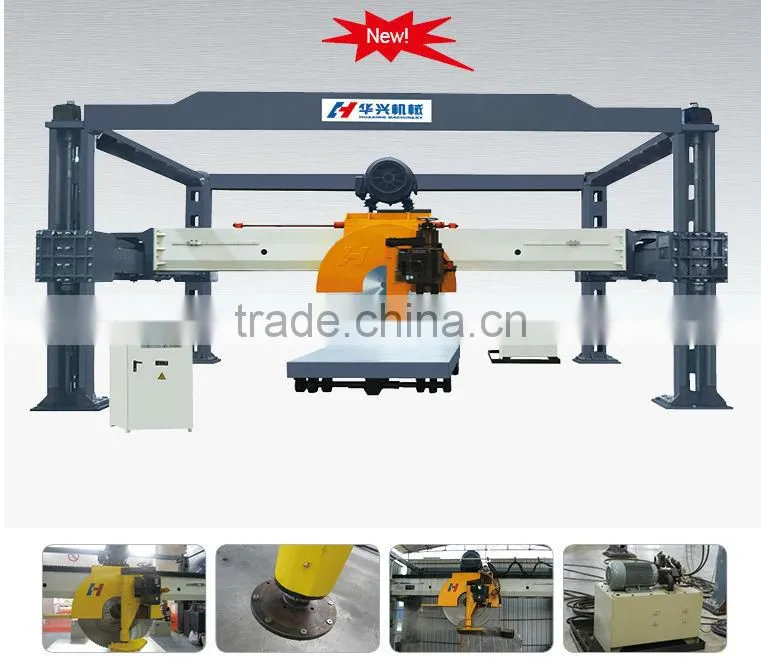

 SZSJ160 artificial stone machinery
