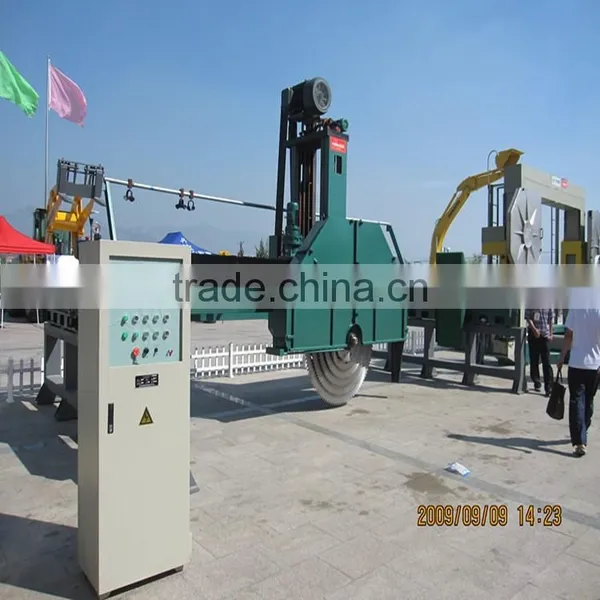

QJS180 Bridge Diamond Disc Bridge Sawer

QJS180 Bridge Diamond Disc Bridge Sawer thumbnail-1
QJS180 Bridge Diamond Disc Bridge Sawer photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Stone Cutting Machine
Use:
Granite
Contact Supplier Request Quote Chat Now
Shandong Gold Rhino Huaxing Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Stone Cutting Machine
Use Granite
Place of Origin Shandong, China
Brand Name Huaxing
Model Number QJS180
Voltage 380V 50HZ
Power(W) 32.6KW
Dimension(L*W*H) 7300*5150*5210mm
Weight 7000kgs
Certification ce
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

QJS Series Bridge Diamond Disc Stone Sawing Machines


QJS Series Bridge Diamond Disc Stone Sawing Machines are mainly used for cutting granite and marble.

1、 These series machines have reasonable structure and stable working conditions, the usage cost is low and cutting efficiency is high, the cutting surface is smooth and clean, with high ration of finished products, no mechanical breakage and no rust erosion.

2、 These series machines can be used for cutting over 10mm thickness of granite and marble plate, various specifications of platform, tombstone and material stone for arts and crafts.

3、 These series machines are easy to operate and safe to use depending on the interlocking and safety devices in automatic electric parts. The controlling system has two types of manual and automation. According to different hardness of stone, the feeding speed of carriage and vertical feeding of saw disc can be adjusted.

4、 Adopted with diamond cutter and high speed grinding technology, these series machines have the features including high cutting efficiency, long usage life of blade and good cutting quality.








Main Parameters:

Model (QJS) 90 120 160 180Ⅲ 220 260/3

Maximum diameter of

disc (mm) 900 1200 1600 1800 2200 2600

Maximum cross stroke

of saw disc 2300 2600 3100/3600 3600 4800

Maximum vertical stroke

of saw disc 520 850 900/1100 1100/1300 1400

Area of trolley

(L*W) (mm) 1310*1310 1700*1700 2000*2000

Total capacity (mm) 16.1 21.5 24.6 32.6 40 40.7

Main motor (kw) 15 18.5 22 30 37 37

Up-down motor (kw) 0.55 1.1 1.5 1.5

Feeding motor (kw) 0.55 1.5 1.5 2.2

Overall dimension L 4500 6800 7300 1800 9300

W 5150 5150 5150 51550 5150

H 4000 5210 5210 6000 7100

Weight (kgs) 3800 4300 4500 7000 7500 8500




Certifications
Detailed Images

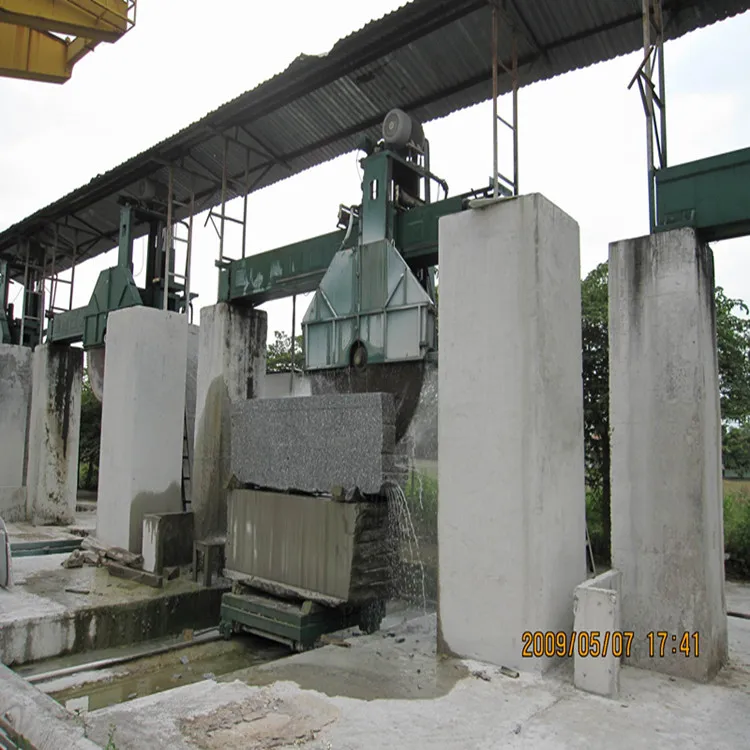

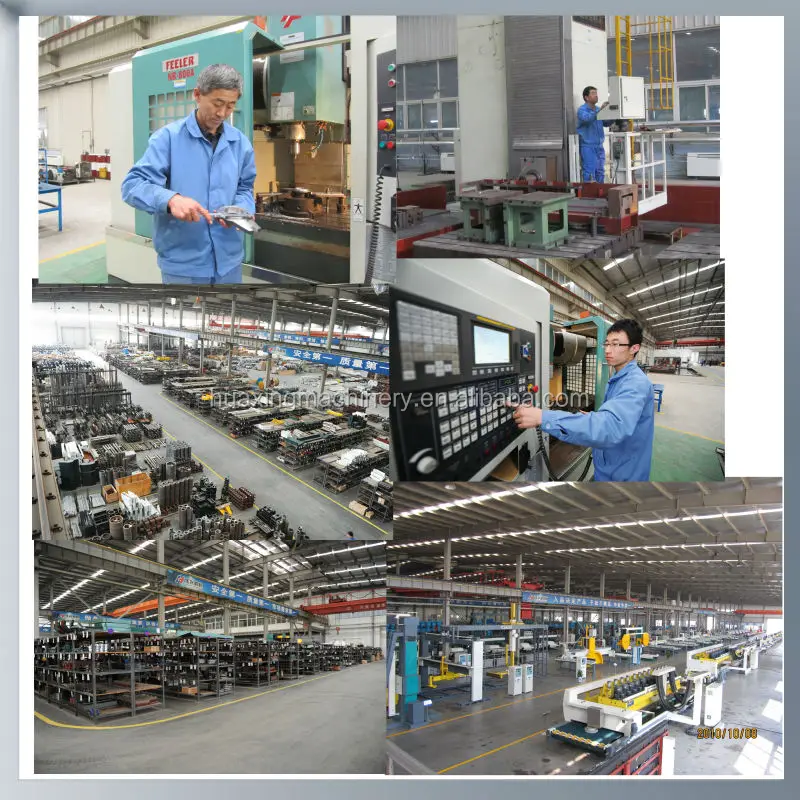

workshop



operation paltform








N

our service



1, offer oversea service

2, production as order requirments

3, nogotiated matters

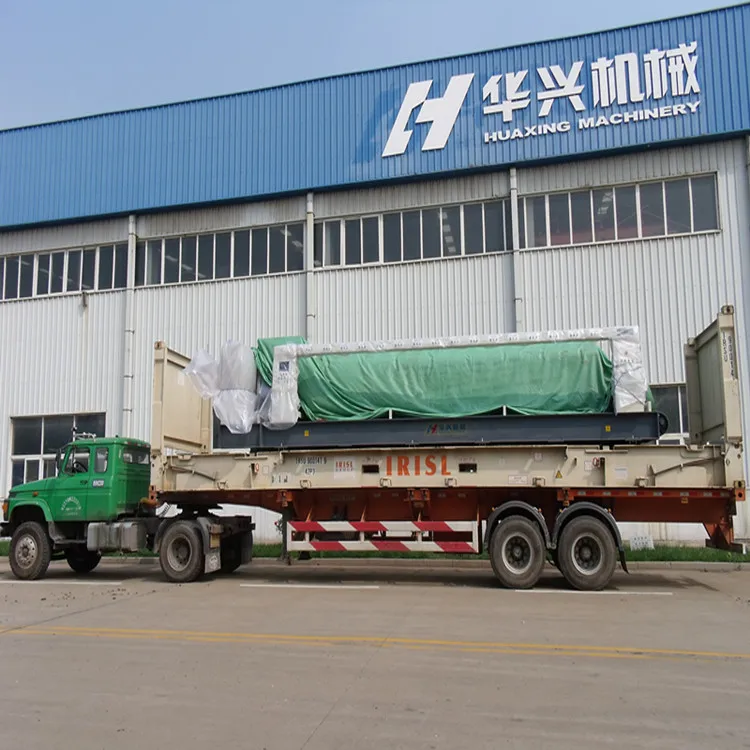

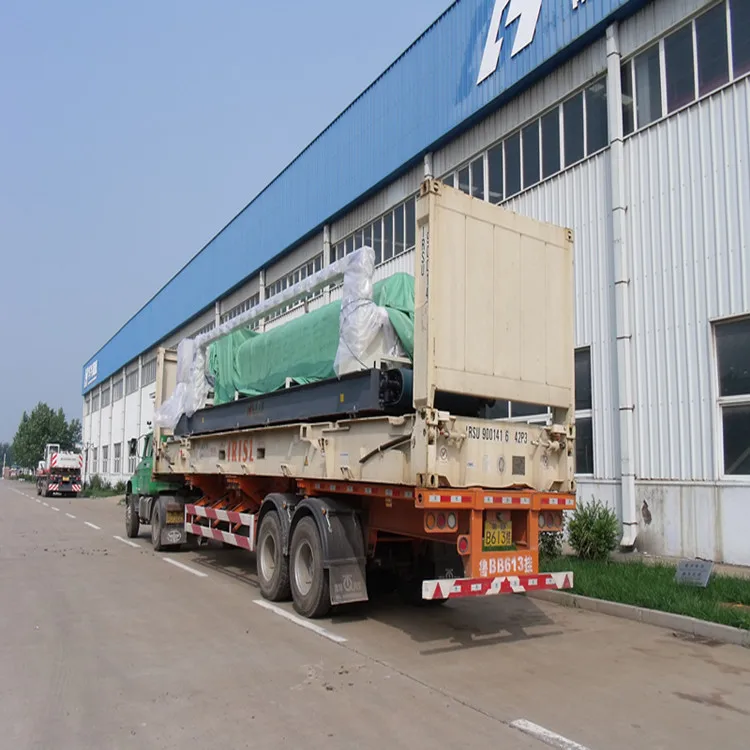

Packing & Delivery
Packaging
