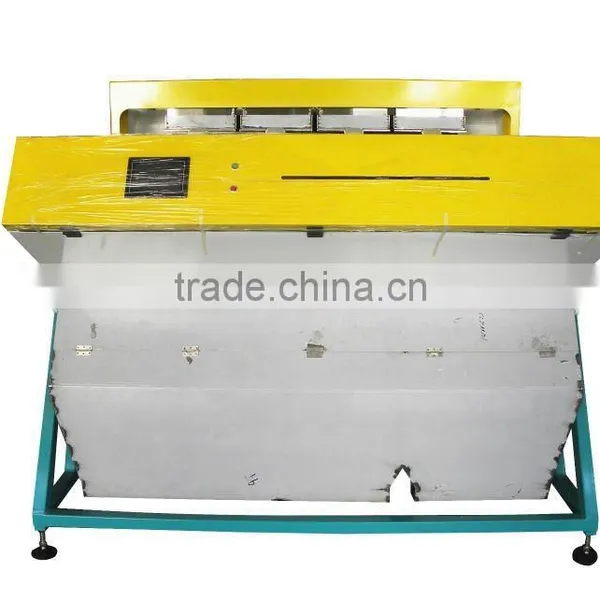

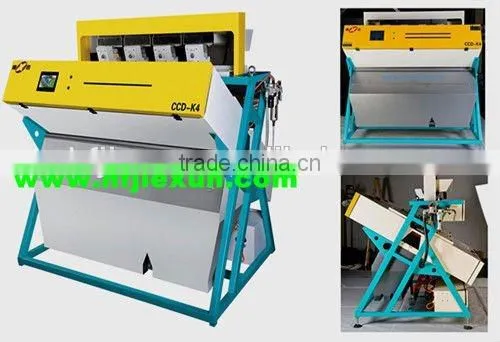

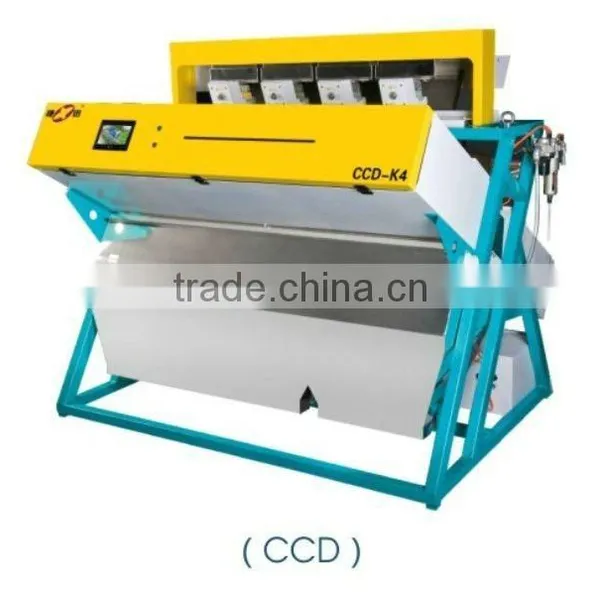

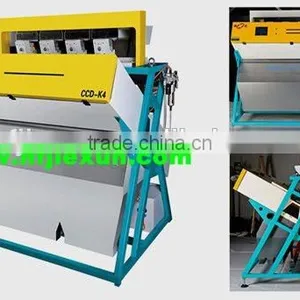

cotton seed color sorter:
- Using 2048 true color CCD linear array camera, recognition accuracy up to 0.08mm, and take machine vision into production in this industry;
- Using linear array image scanning technology ,high-speed intelligent image acquisition system.
- Using the most advanced U.S. TERA FPGA technology for programming device, and the embedded software operation platform make system more stable, response faster and function more powerful;
- The system is added to special algorithm, such as shape selection, and area algorithm, to solve problems like sorting some kinds of beans according to their shape ,color ,and area at the same time and expand the scope of application of color sorter ,and make multi-function ,multi species of color sorting come true;
- Using the most advanced LED optics technique in the world, machine has longer life ,better uniformity, more wide color areas, and lower power consumption, the power consumption is only 10-30% for general lighting ;
- Using different slide according to different materials, no need to change light source, and it is suitable for a variety of industrial products, beans, nuts, grains and other particles and sheet material;
- Using of V type ,U type ,flat slide ,and special technology to ensure product stability and reliability;
- Integrating more than 10 global exclusive patent technology
PARAMETERS
Model |
Throughput (t/h) |
Sorting Accuracy (%) |
Power (kw) |
Voltage (v) |
Dimension (L×W×H)mm |
Weight (kg) |
K4 |
1.5~6 |
≥99.9 |
1.5 |
220V/50Hz |
2100×1706×1935 |
950 |
K5 |
2~8 |
≥99.9 |
2.0 |
220V/50Hz |
2100×1706×1935 |
1050 |
Note:Subject to different sizes,specific gravities,friction factors,rules of surface,oiliness,viscidity and impurities of raw material,parameters listed above table will change to some extend,which are reference for you choosing a suitable model
Anhui Jiexun Optoelectronic Technology Co., Ltd is a high & new technology enterprise which is professionally engaged in research and manufacture of intelligent color (identifying) sorting equipments.
The company locating in Hefei New Station Industrial Park,Anhui Province,covers 96,000 square meters with 173 million worth of fixed assets, it possesses 217 sets of equipment for production, research and testing with workshop area of 34,500 square meters. The annual output of 5,000 intelligent color sorting machine production line is under construction, civil engineering part has been acceptance.

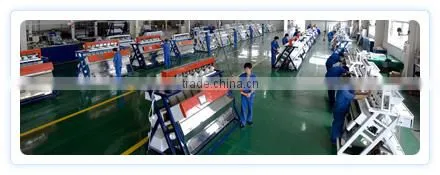

Importation of advanced equipments like pick and place machine, laser cutting machine, computerized numerical control(CNC) processing center from Germany and Japan contributes to a strong production base of intelligent color (identifying) sorting machines.
Jiexun company pursues skillful and independent color (identifying) sorting technique. The close cooperation with many well-known food processing enterprises at home and abroad for years witnesses our achievements in this field. Jiexun aims to manufacture high efficient and stable color (identifying) sorting machines all the time which have been sold to Asia, Europe, America, Africa, Middle East and so on. Our products have gained great praise from customers both at home and abroad.
Jiexun adhere to the independent Research & Development and technological innovation unswervingly, the product obtained many national patents. "DCS series of digital and intelligent color sorter," was identified as "high-tech products."
Jiexun adopts the modern enterprise operation and construct a set of scientific and complete quality management system, Passed the IS09001: 2000 quality management system certification as a leader in color sorter manufacture industry and also identified as "China Quality Inspection Association member” by China Quality Inspection Association.
Jiexun Company was repeatedly invited to actively participate in various large-scale exhibition of technology such as China Hi-Tech Fair, National Agricultural Products Order Fair, Expo Central China, International Nuts Conference and so on. With excellent quality and superior performance, Jiexun has won widespread praise and trust.
After sales service:
Tel: 0086 551-64266956
Note: The machine is high-tech product, so please inform manufacturer on time when there is problem and observe and operate the machine under guide of manufacturer’s technician.
-
1. Please contact sales manager of manufacturer to inform details about problem.
2. For minor problem, customer can solve it by himself under guide of sales manager and after sales technicians.
3.The manufacturer is responsible for arranging to post new parts which will be used to replace damaged parts.
The customer shall return damaged parts to manufacturer.
4. For special cases, technician of manufacturer will come to solve problem for customer.
Website: /
Tel: 0086 551-64266956
Fax: 0086 551-64266956
Address: No.6,Xinghuo Road of industrial Park,New Station District,Hefei,Anhui,China
Postal code: 230041
India office
India Address:#34,Third Floor ,Kalyan Vihar,North Delhi, Dehli-9,India.
Contact number: 0091-8375854591 Andy Wong
