Help CenterSteel Cable Reel With Pressed Flanges and Rounded Rim
Related Products
Type:PND315-1250 Reel with pressed flanges and rounded rim.
Application: Forsteel wire,steel rope,copper,welding wire ect.

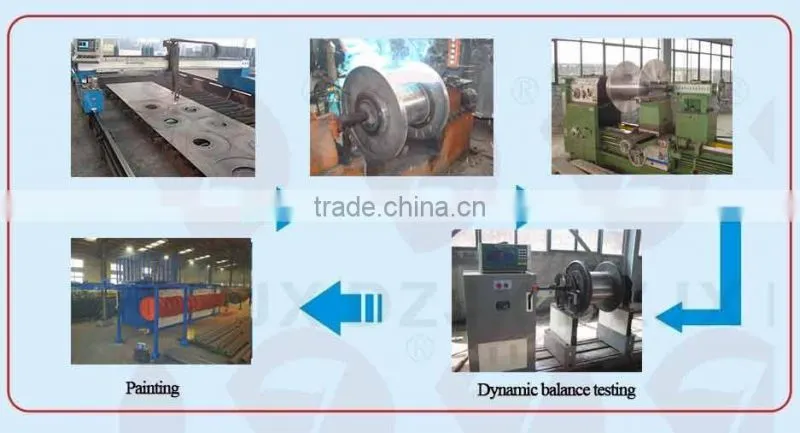

Characteristics: All mechanical precision forming and though dynamic balance tests, high rigidity, high precision, steady in high-speed operations.
Standard: JB/T 3673-1999,GB4004-83,DIN46397 or dimension according to customer’s specifications.
Dynamically balanced for speed from 25m/s to 50m/s Technical parameters
Product standards : JB/T 3673-1999,GB4004-83,DIN46397

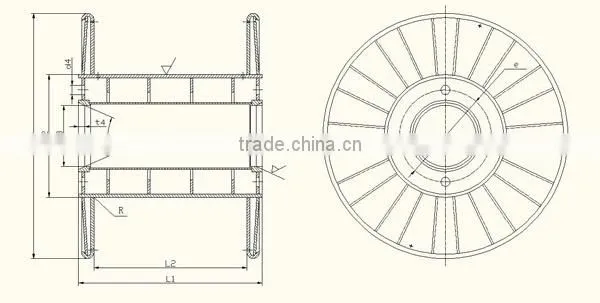

specifications |
d1 |
d2 |
d3 |
d4 |
e |
L1 |
L2 |
t4 |
α |
Vdm3 |
315 |
315 |
200 |
60 |
16 |
200 |
236 |
200 |
20 |
45° |
9.3 |
355 |
355 |
200/224 |
265 |
224 |
15.1/13.3 |
|||||
400 |
400 |
224/280 |
28 |
300 |
250 |
21.6/16.0 |
||||
450 |
450 |
250/315 |
335 |
280 |
30.8/22.7 |
|||||
500 |
500 |
280/355 |
375 |
315 |
42.5/30.7 |
|||||
560 |
560 |
315/400 |
425 |
355 |
59.8/42.8 |
|||||
630 |
630 |
355/375 |
40 |
260 |
500 |
400 |
86.2/61.6 |
|||
760 |
760 |
355/400 |
125 |
320 |
360 |
280 |
40 |
121.6/89.8 |
||
800 |
800 |
400/450 |
600 |
500 |
172/128 |
|||||
1000 |
1000 |
500/560 |
50 |
450 |
750 |
630 |
340 |
|||
1250 |
1250 |
710/800 |
950 |
800 |
665 |
