Product Description

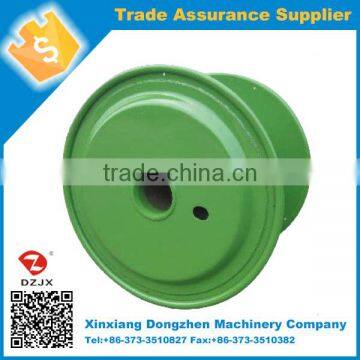

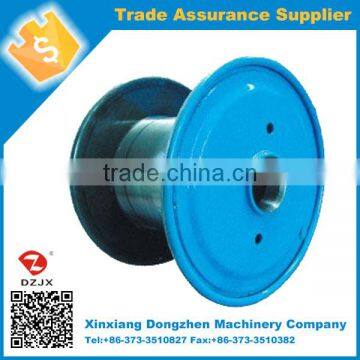

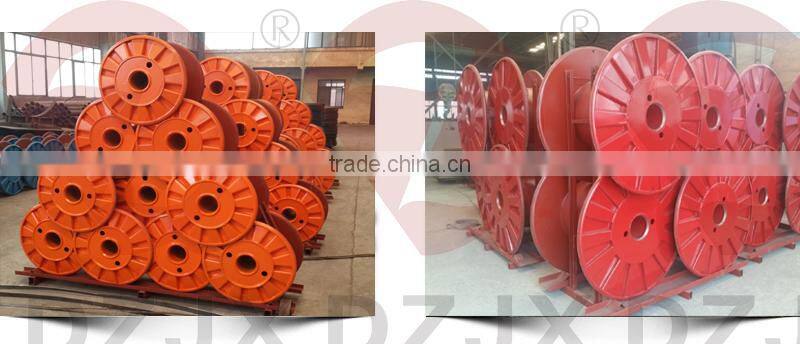

Type:PND315-1250 Double Layer High Speed Bobbin
Application: Intended in high-speed stranding machine, high-speed copper and aluminum rod breakdown machines.

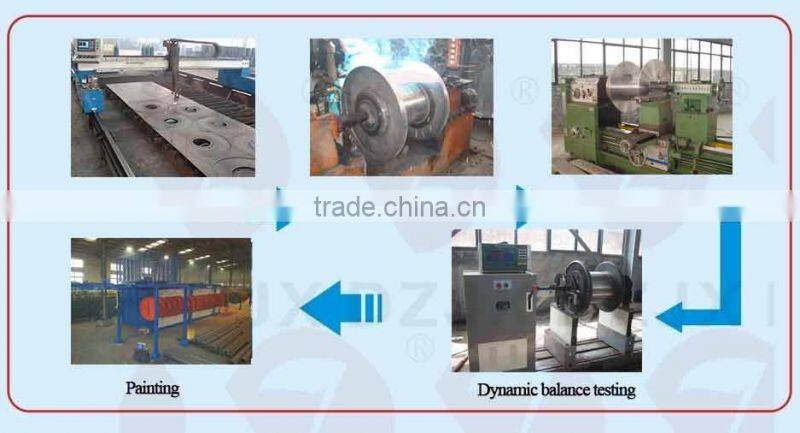

Characteristics: All mechanical precision forming and though dynamic balance tests, high rigidity, high precision, steady in high-speed operations.
Standard: GB4004-83,JB/T8997.4-1999 and DIN46397 or dimension according to customer’s specifications.
Dynamically balanced for speed from 25m/s to 50m/s Technical parameters
Product standards : GB4004-83 JB/T8997.4-1999 DIN46397

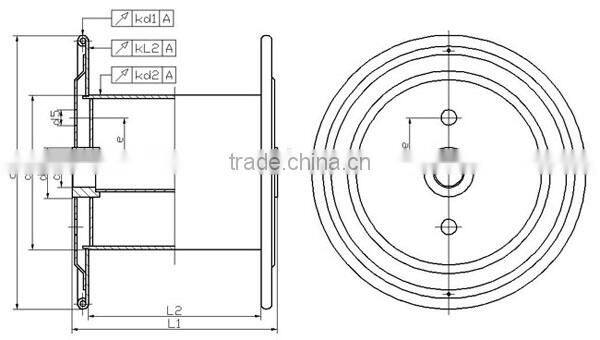

specifications | d1 | d2 | d3 | d4 | d5 | e | L1 | L2 | t4 | α | Vdm3 |
315 | 315 | 200 | 160 | 125 | 16 | 100 | 236 | 200 | 20 | 45° | 9.3 |
355 | 355 | 200/224 | 265 | 224 | 15.1/13.3 | ||||||
400 | 400 | 224/280 | 28 | 300 | 250 | 21.6/16.0 | |||||
450 | 450 | 250/315 | 335 | 280 | 30.8/22.7 | ||||||
500 | 500 | 280/355 | 375 | 315 | 42.5/30.7 | ||||||
560 | 560 | 315/400 | 425 | 355 | 59.8/42.8 | ||||||
630 | 630 | 355/450 | 475 | 400 | 86.2/61.6 | ||||||
710 | 710 | 400/500 | 300 | 250 | 40 | 170 | 530 | 450 | 40 | 121.6/89.8 | |
800 | 800 | 450/560 | 600 | 500 | 172/128 | ||||||
1000 | 1000 | 560/630 | 50 | 250 | 750 | 630 | 340 | ||||
1250 | 1250 | 710/800 | 950 | 800 | 665 |
