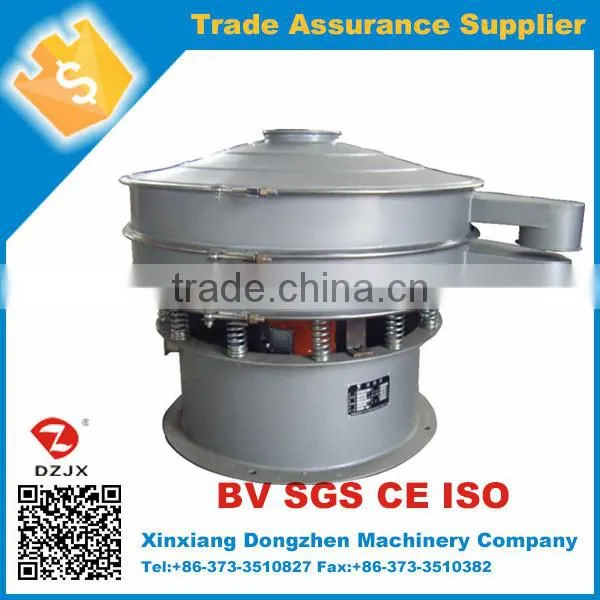

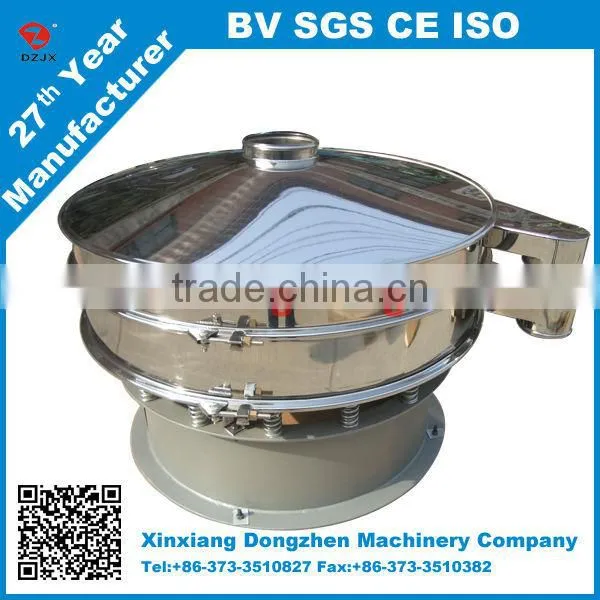

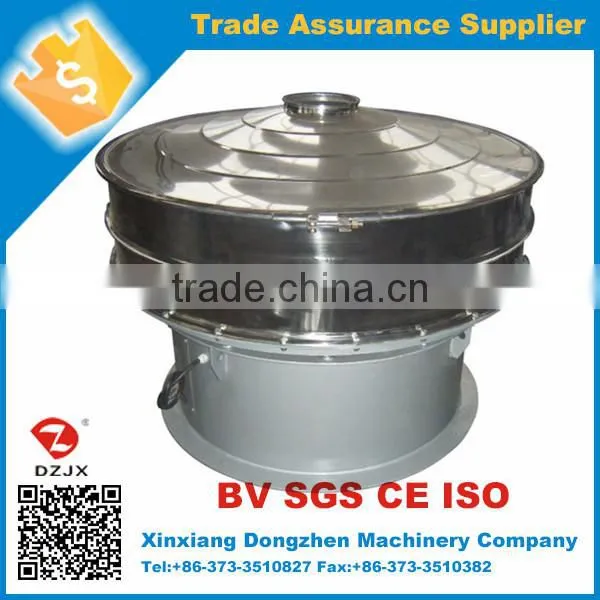

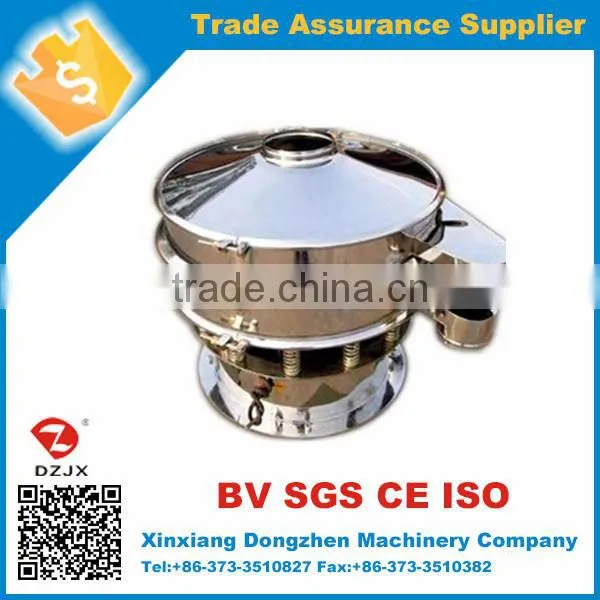

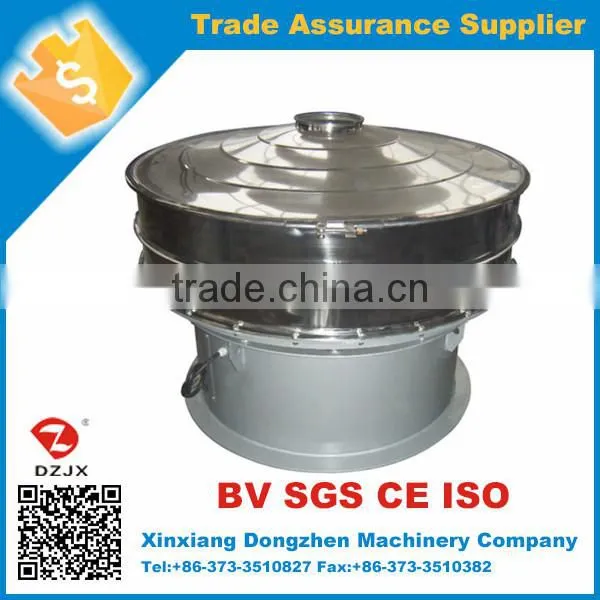

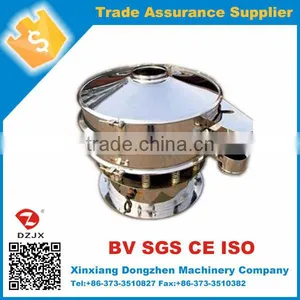

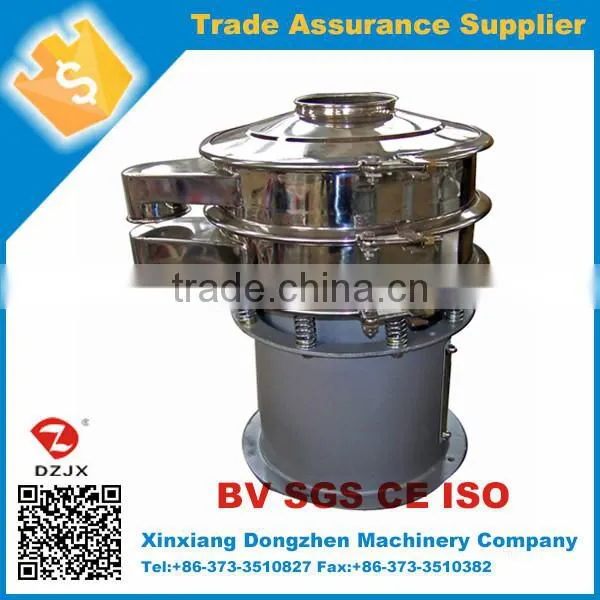

Product description- Cicular stainless steel vibrator mechanical sifter
S49-B vibrating sifter is a kind of mature technology, general and tend to be standardized classic inertia screening equipment. it can meet the requirement of most materials in grading granulated stuffs abd screening out powder and liquid in different operation.It can be equipped with screen cloth cleaning device to avoid clogging effectively.
1.Working principle- Cicular stainless steel vibrator mechanical sifter
The machine is drived by a unbalance motor, which is with variable eccentric weights on both sides of motor shaft, The screening time and movement of material on the screen surface can be controlled by adjusting the angle of the two eccentric weights.
2.Applicable Industries- Cicular stainless steel vibrator mechanical sifter
- Chemical industry: resin, pigment, cosmetic, coatings, Chinese medicine powder
- Food industry: sugar powder, starch, salt, rice noodle, milk powder, sauce, bread crumbs,food additive
- Metallurgy, Mine industry: aluminum powered, copper powder, ore alloy powder, welding rod powder
- Medicinal industry: all kinds of medicine
- Waste treatment: disposed oil, disposed water, disposed dye waste water, active carbon
3.Advantages- Cicular stainless steel vibrator mechanical sifter

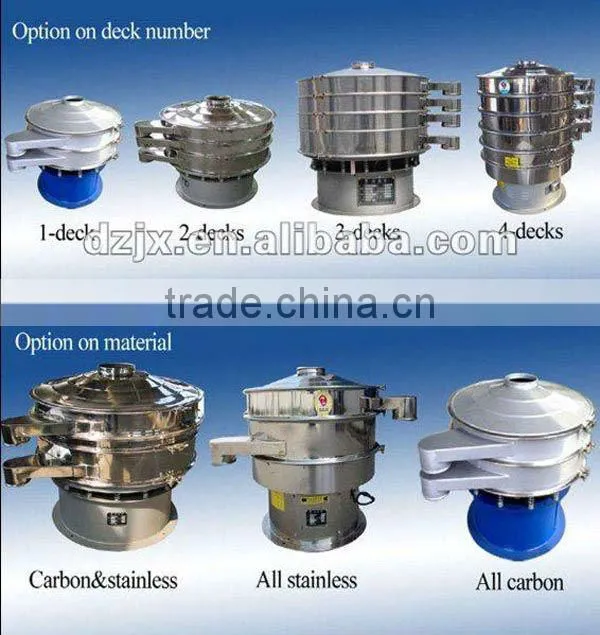

Rotary Vibrating Sifter is a kind of mature technology and tend to be standardized classic screening equipment. Its stainless steel perforated plate screen deck has been specially designed to provide‘safe areas’ for product loading and reject discharge. The special pellet deck works in complete harmony with gentle vibration and guarantees total removal of ‘longs’from the fine powder.A second lower deck can be fitted if required, utilising a woven wiremesh for the removal of dust and fines.
4. Feature- Cicular stainless steel vibrator mechanical sifter
1.High efficiency, refined design, duration, any powders and mucilage are suitable for using.
2Good sealing property. Frame have a dedicated connection with rubber, fastening with a locking band. Dust does not spill. It can get national environmental standards.
3.Easy to operate, impurities and coarse materials can be discharged automatically, continuous operation.
4.Easily to replace the screen, simple operation and convenience washing.
5.Standard vibrating screen has unique net rack design. Sieves can exchange easily in order to reduce staff’s maintenance time.
5.Technical parameter of the S49-B series
Size Code |
Diameter (mm) |
Mesh Area per deck (m2) |
Number of Decks |
Power (KW) |
Maximum size to process(mm) |
S494-B |
400 |
0.13 |
1-4 |
0.25 |
20 |
S496-B |
600 |
0.16 |
1-4 |
0.6 |
20 |
S498-B |
800 |
0.44 |
1-4 |
0.6 |
30 |
S4910-B |
1000 |
0.63 |
1-4 |
0.8 |
30 |
S4912-B |
1200 |
1.03 |
1-4 |
1.5 |
30 |
S4915-B |
1500 |
1.65 |
1-4 |
2.2 |
50 |
S4918-B |
1800 |
2.4 |
1-4 |
2.5 |
50 |
S4920-B |
2000 |
2.98 |
1-4 |
2.5 |
60 |

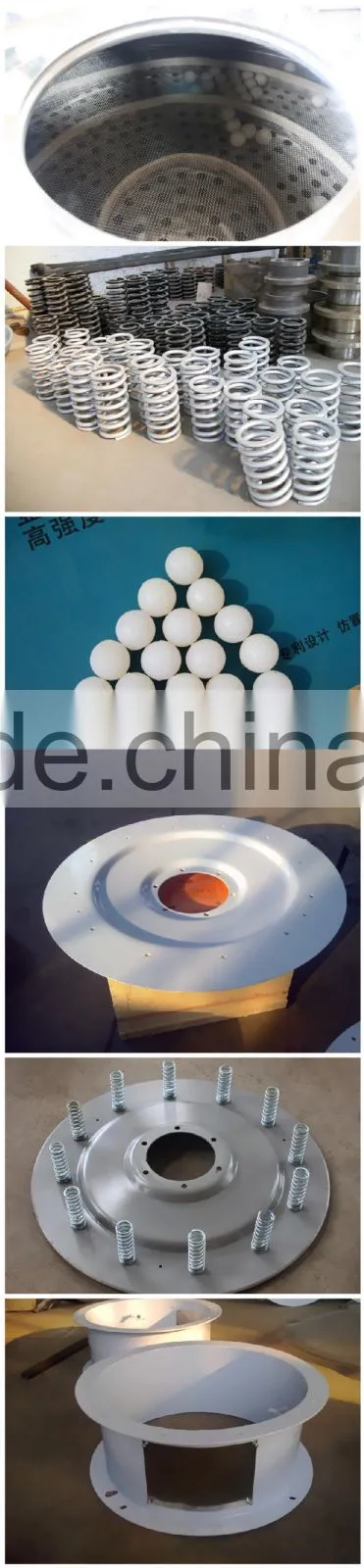

Parts:
