Ultrasonic Mechanical Vibration Separator for Fine Powder

Name: Ultrasonic Mechanical Vibration Separator for Fine Powder
Brand: DZJX
Availability: InStock

FOB Price

US$ 499 - 5,000 / Set

1 Set(Min. Order)

Port Qingdao/Shanghai/As you required
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Circular
Application	Chemicals	Place of Origin	Henan, China
Brand Name	DZJX	Model Number	S49-B
Voltage	380V/220V/415V/optional	Power(W)	0.25~2.5kw
Dimension(LWH)	as per order	Weight	variable
Certification	ISO CE BV SGS	Warranty	12 Months
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Ultrasonic mechanical vibration separator for fine powder

Brief Introduction- ultrasonic vibro sieve

The machine is drived by a unbalance motor, which is with variable eccentric weights on both sides of motor shaft. , The screening time and movement of material on the screen surface can be controlled by adjusting the angle of the two eccentric weights.

The ultrasonic vibro sieve (mechanic wave) added on the sieve mesh makes superfine powder accept the giant ultrasonic acceleration which restrains blockage factors which includes adhesion, friction ,wedging etc and improves sieving and cleaning efficiency.

Main Features-ultrasonic vibro sieve

It is able to improve the pancake and slip-effect of low-density powder in the gravity settling (light touch between powder and mesh), improving the occluding and wedging of high-density metal on the mesh, improving the adhesion effect of powder with the electrostatic ,which improves the sieving efficiency and quality .Using the sieving through rate to show ,it generally is able to increase the through rate of 50%-400% than one which is not ultrasonic vibrating sieve.

(1)Less or no net-cleaning time.

(2)No assistant objects bring pollution to the powder body e.g. rubber ball.

(3)Keep the size of mesh and make the sieving precision stable.

(4)Disassemble the adhesion objects and reduce the objects on the sieve.

(5)High screening efficiency

Technical Parameter-ultrasonic vibro sieve

Model	Dimension(mm)	Layer	Mesh Area Per Deck(m2)	Power(kw)	Maximum Size to Progress(mm)
S496-B	600	1-4	0.16	0.5	20
S498-B	800	1-4	0.44	0.75	30
S4910-B	1000	1-4	0.63	0.8	30
S4912-B	1200	1-4	1.03	1.5	30
S4915-B	1500	1-4	1.65	2.2	50

Application-ultrasonic vibro sieve

Dongzhen Made ultrasonic viibro sieve machinery is widely used in many industries, such as mining, building materials, metallurgy, casting, abrasive material, chemical, light industry, medicine and food industries.

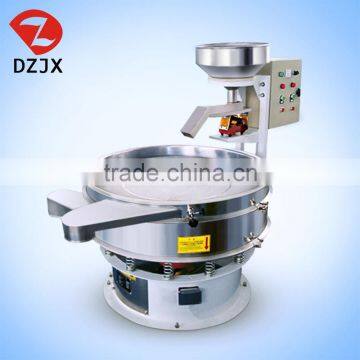

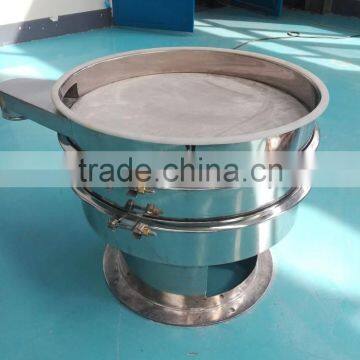

Machine picture

Detailed Images

Name: Vibration Motor

Brand: DZJX

The power source of the machine

Name:screen mesh
Brand: DZJX

Name: Spring
Brand: DZJX
Reduce the machine damage，reduce the noise

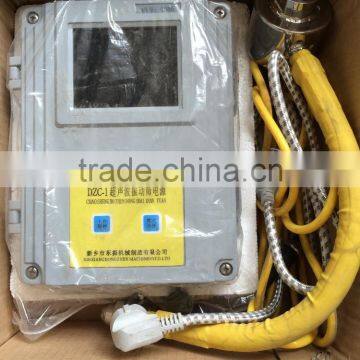

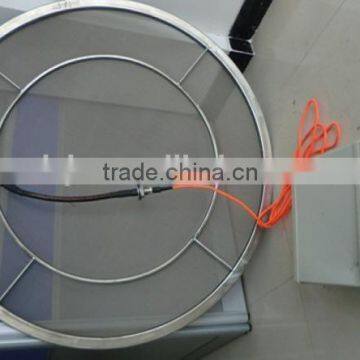

Name: Ultrasonic structure
Brand: DZJX
Can convert electrical energy into mechanical energy

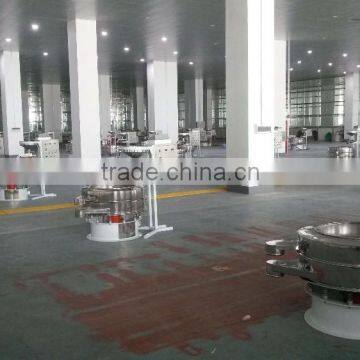

Production process

Packing & Delivery

Our Company

About us:

We are direct factory of Vibrating Screen, Conveyor equipment and Mixer for many years, we are glad to build longlasting business relationship with you.

We have the enterprising and energetic team of excellence who are dedicated to their career. More than 200 staff work for us, including 65 technicians and engineers with senior title . In 2000, we established CAD workstation earlier than others in China.

Certificate

Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Free solutions
* View our Factory.
*Make plans for choice according to the needs and special requirements of users in different sectors

After-Sales Service

*Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
*Establish long-term and friendly relationship

How to provide us the detailed need

1)Material (name) that you want to process, with the density, water content(%).
2)The necessary process quantity (per hour)
3)Material contact part, SS304, SS316L and Q235 for option.
4)The different dimension of the machine can be designed for you.
5)Additional parts, like the Mobil wheel and noise-proof base, can be easily fixed and maintained.

FAQ

Q:What factors I need to get a quotation?

A: Material bulk density, mesh size(length & angle for conveying series) & ideal capacity for proper type, granularity distribution is recommended. product material requirement (carbon steel Q235A, stainless steel SUS304 or SUS316,etc.) Voltage & Frequency(Hz) is also needed for a precise quotation.

Q:What is the real delivery time of your factory?

A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.

Q: How do you ensure the quality of your products?

A: Generally, our equipments are the most durable type in the industry. With our experienced quality control team, we are trying to offer most of our customers the product with bset quality. However, we do recognized that there do have small amount of the product which may got faulty or damaged for different reasons.

Q: How do your after-sale service work if the product got damaged?

A: In the gurantee time 12 months, our general after-sale service is changing the damaged parts for the customer, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refound this part of cost.(note: Vulnerable parts do not include.)

Q: How could I trust your promise?

A: Firstly, you may check the assessment on our website certified by the appraisal agency Bureau Veritas;
secondly, we attend at least 4 to 6 international industry exhibitions held in China annually, like the Food Ingredients China, China International Battery Fair, CPhI, ICSE BioPh China, ICIF China, etc. We usually met our customers there for negotiation;
Thirdly, company inspection always available, if you have any representative or you would like to come to our site, we offer free shuttle from Zhengzhou airport to our company, welcome your visit.
