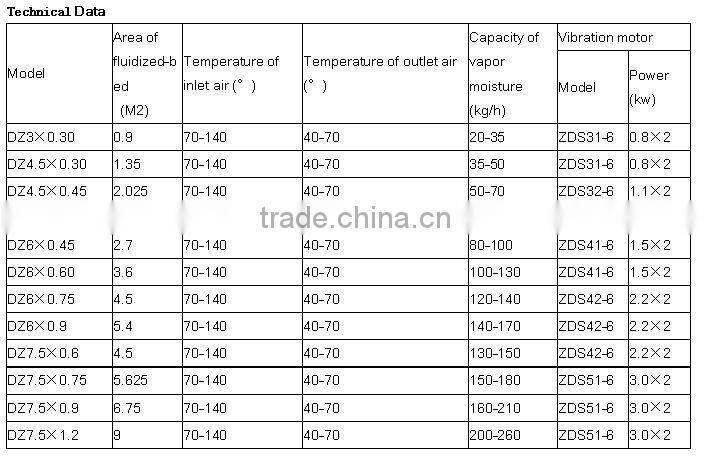

Specifications
powder fluidizing bed-Stable temparature
-Adjustable function by need
-Easy to maintain and clean
Industrial powder fluidizing bed

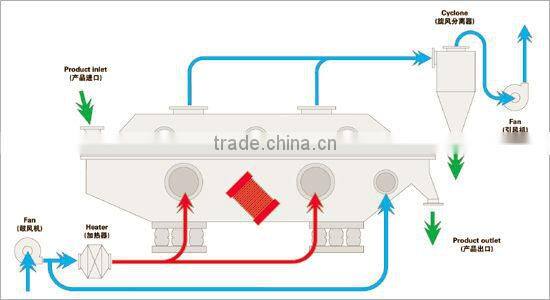

Working principle
Raw material is feed into the machine from and move forward continuously along with the horizontal direction by vibration. The hot air passes through fluidized bed and exchange with raw materials damp, then the wet air is dusted by cyclone separator and exhausted from air outlet, the dried material is discharged outlet.
Pharmaceutical and chemical industries
All kinds of press tablet and granule, boric acid, borax, malic acid, maleic acid and so on;Foodstuff and construction material industries: glutamate, edible sugar, edible salt, mine residue, bean, seeds and so on; It can also used for raw materials to add up damp or cooling and so on
Features
1, Raw material is heated uniformly, heating exchange is sufficient, drying capacity is high. Compared with ordinary drier, it can save energy up to 30%.
2, The vibration is driven by vibratory electric device, it has the benefits of stable operation, convenient maintenance, low noise and durable.
3, Fluidized state is stable, no pollution and destructive factor.
4, Easy regulation and wide suitability. Inside the machine, raw materials thickness, moving speed and amplitude change can be adjusted.
5, Small damage to raw materials surface, this equipment can be applied for drying easy broken materials; raw materials anomaly shape can not affect drying effect, operation environment is clean.
6, Raw material and air Cross Pollution are effectually prevented by using fully sealed structure. Drying environment is very sanitary.
