Introduction of Potato starch making machine|potato starch machine :

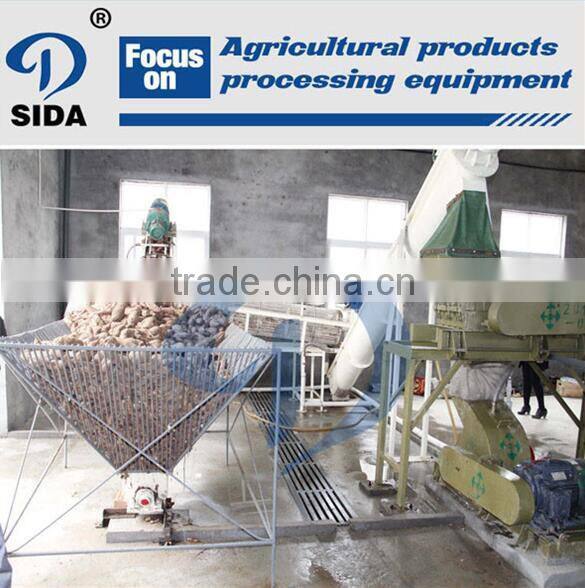

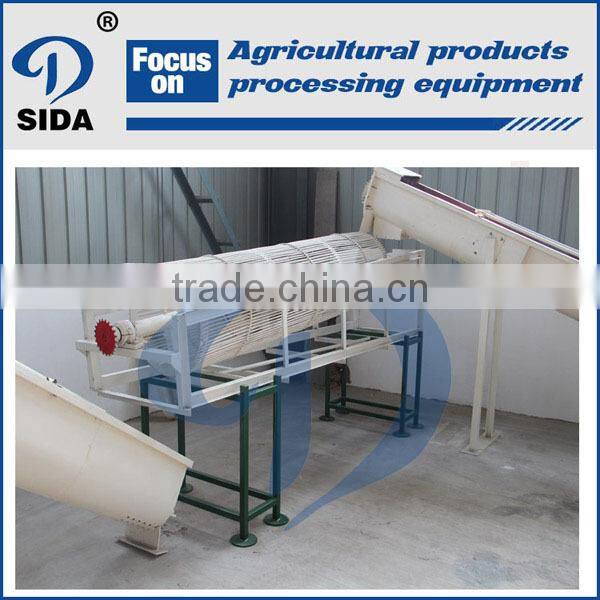

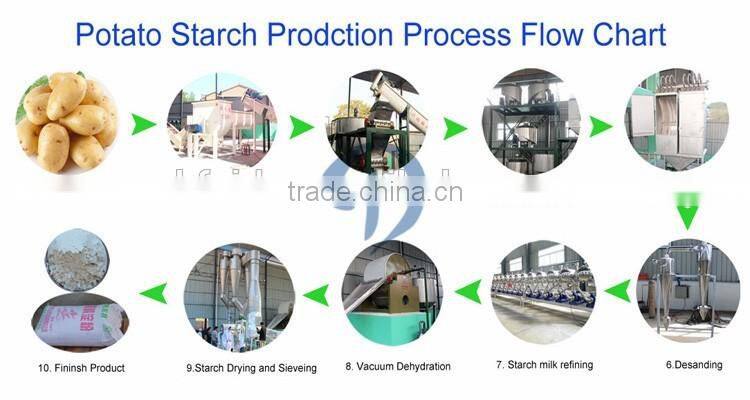

Potato starch processing adopt the wet process of starch production,do not add any additives,the entire process with mature technology, advanced equipment, scientific and reliable process with the six main step :Cleaning section→Rasping section→Filtering section→Concentrating&Refining section →Dehydration section→Drying section and then packing

Main Features of Potato starch making machine|potato starch machine

Potato starch making machine|potato starch machine  description

Potato starch making machine|potato starch machine description

2 Tapioca rasping unit
The rasping unit is the most important part of tapioca starch extraction. Rasping mill with high efficiency allows the starch granules in the cassava cells to be released out completely, which ensures minimum quantity of the remaining starch in the cassava residue. The rasping cassava slurry is pumped into de-sanding unit by a fiber pump.

Potato starch making machine|potato starch machine  description

3 De-sanding unit
Rasping cassava slurry is pumped through the fiber pump into the de-sanding cyclone. When the slurry enters de-sanding cyclone, the light phase of starch and cassava residue come out of the top as overflow, and the heavy phase like sands will be discharged from the bottom.

Potato starch making machine|potato starch machine description

4 Tapioca starch extracting unit
Centrifugal extraction is another key unit which influences the cassava starch yields. The cassava slurry enters the first stage centrifugal sieve from de-sanding cyclone, the slurry is separated into starch slurry and cassava residue under the centrifugal force. Starch slurry is pumped through the de-foaming pump to the hydro-cyclone station for washing starch, and the cassava residue is sent to second and third grade centrifugal sieves through fiber pump for starch recovery.

Potato starch making machine|potato starch machine  description

5 Tapioca residue dewatering
We use a centrifugal sieve for cassava residue dewatering, it works like the extraction sieve. Finally, cassava residue is transported out of the workshop, the extracted water return to the process water system.

Potato starch making machine|potato starch machine  description

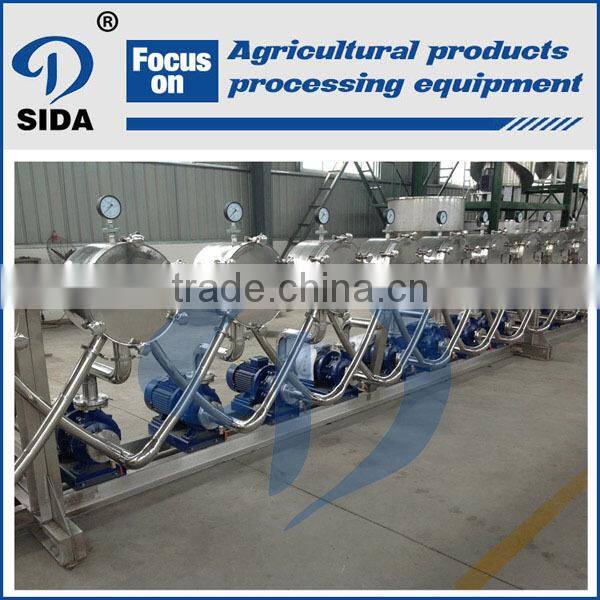

6 Tapioca starch washing and concentration unit
The 16 grade hydro-cyclone station guarantees the quality of the starch completely, which is the most important unit of the entire production line. The starch slurry enters the third stage of the hydro-cyclone for concentration, and the fresh water enters the hydro-cyclone from the other end which washes starch. The overflow enters two grade recovery station to recycle starch, the bottom flow is washed through 13 grade washing cyclone to ensure that the starch slurry does not contain impurities and final starch will be in accordance with national standard .

Potato starch making machine|potato starch machine  description

7 Tapioca starch dewatering unit
The starch out of the cyclone station has big moisture so it must be dewatered then dried. The starch slurry enters vacuum dewatering filter tank from the starch milk buffer tank. Under the vacuum formed by the vacuum pump, the starch slurry is sucked to the drum surface, then filtrate goes through filter mesh and enters the filtrate separating tank. The starch cake remains on mesh surface and is scraped off by a scraper and transported by the conveyor belt into the air dryer. Then weighing and packing.
