Automatic Cassava Peeling and Washing Machine

Automatic Cassava Peeling and Washing Machine photo-1
Automatic Cassava Peeling and Washing Machine photo-2
Automatic Cassava Peeling and Washing Machine photo-3
Automatic Cassava Peeling and Washing Machine photo-4
Automatic Cassava Peeling and Washing Machine photo-5
Automatic Cassava Peeling and Washing Machine photo-6
US$ 1 - 10,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
Sida
Model Number:
SD-MS-028
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Henan, China
Brand Name Sida
Model Number SD-MS-028
Type Other, Other, Cassava peeling machine
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Cassava processing machine for Garri

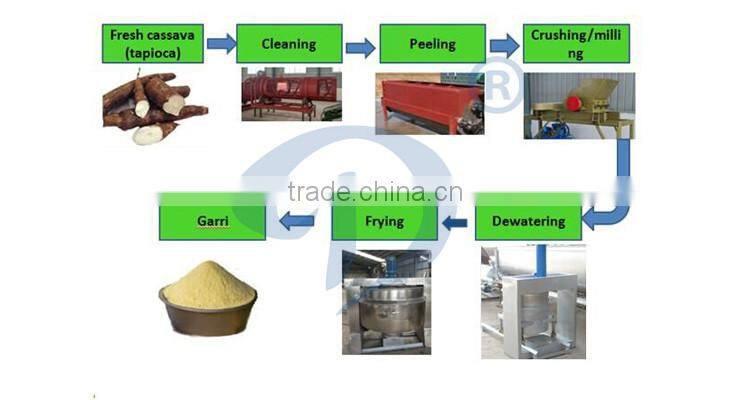

Brief Flow Chart of Gari:
Gari production line using the wet process of production, do not add any additives, the entire process is mature technology, advanced equipment, scientific, rational process. Production process is the cleaning-the broken solution-dehydration-frying-grinding-packaging nine section design.
main process: 1. washing   2. breaking   3. dehydration   4. frying   5. grinding   6. package

Equipments and Craft:

a. Scraper lifter:1. Conveying  2. lifting 3. adjustable speed
b. Paddle Type washing machine: 1. rotating by paddles  2. full of water 3. Small defects are cleaning up  4. Material to the next stage automatically
c. Scraper lifter: 1. 2 ways of washing 2. Washing length reach to 20m 3. Washing and lifting 4. Material to the next stage automatically
d. Washing peeler: 1. peeling 2. washing 3. do not hurt the material 4. material to the next stage automatically
e. Primary grinder: 1. 2 ways of crushing 2. Several national patents owned 3. Low energy and hig efficiency with fully automatic
f. Trilegs centrifuge: 1. Usually several sets work together 2. Need pumps as a must
g. Fryer: 1. Double layers with “+’ type mixer 2. Speed automatically controlled 3. Multi heat resources can be selected 4. 24 hours continuous work available
h. Grinder: 1. Grinding 2. Sieving 3. Adjustable speed
i. Airflow drying system: 1. Hot air sucked in along with max 50% moisture fed in 2. Digital control to make sure the powder can not be burnt 3. Flash speed powder do through the drying tower, more than 10 m high
j. Automatic packing machine: 1. Automatic weighing and calculating 2. Large adjustable weighing scope from 5-50kg 3. Hand seal,
Packing garri in different bags.

Specification

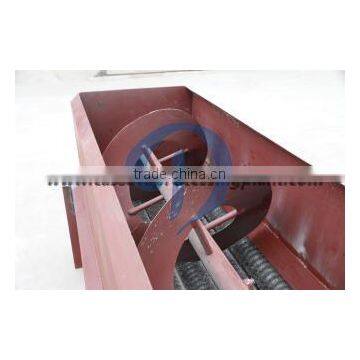

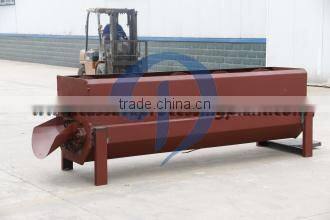

Paddle type cleaning

1). The Paddle cleaning machine composed by U-type body, propelled and transmission.
2). Mainly used for second cleaning of cassava, removing by the muddy, sundries and peel etc. Rotating by powerful paddles.
3). Low power construction; large handling capacity & well cleaning; Stable operation and easy maintenance.


Main function:
a. Peeling and washing

b. Do not hurt the material
c.material to the next stage automatically

Model
Length
Rotating speed(r/min)
Capacity(t/h)
Power
Size(mm)
CSXJ
5000
17
2-3
7.5KW
5000*950*1400
Packing & Delivery



1) Packaging: Wooden Cases. Or as your request, like 20's or 40's Container etc,.


2) Delivery date: 45 days after we receiving the deposit.

3) Shipping: To ship the goods to clients' named port.

FAQ

1.What is the capacity do you have?
We have 200L,400L,600L ect for the cassava garri fryer.

2.What is the heat method?
We have the Electric type,Gas type and Diesel type.

3.What is the capacity of the Cassava Garri Production Line?
250kg/hr,500kg/hr,1000kg/hr ect.

4.What is the Main machine in the Cassava Garri Production line?
Scrap Conveyor,Cage Washer,Paddle Washer,New Type Peeler,Cassava Grater,Cassava Dewater,Cassava Crusher,Cassava Garri Fryer,Garri Package Machine Ect.

Service

1) Pre-sale Service:

a) Flow chart would be very specific under the guidance of our salesman.
b) Our engineer will design the factory layout for you.
c) We can offer you the OEM, basis on your request.



2) After-sales Service:

a) We can offer the Turkey Project for your request.
b) Layout of garri processing machiner would be provided before you place the order so that customers could understand our machine very well.
c) You can send your worker to our factory for learning before the goods shipping.
d) We will offer machine operation training and guide for free when machine being installed.
e) One year warranty.
