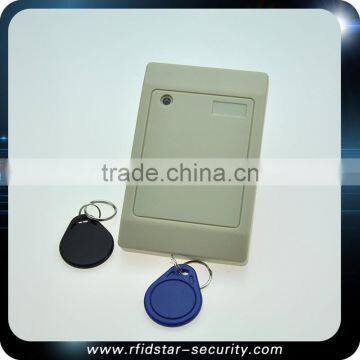

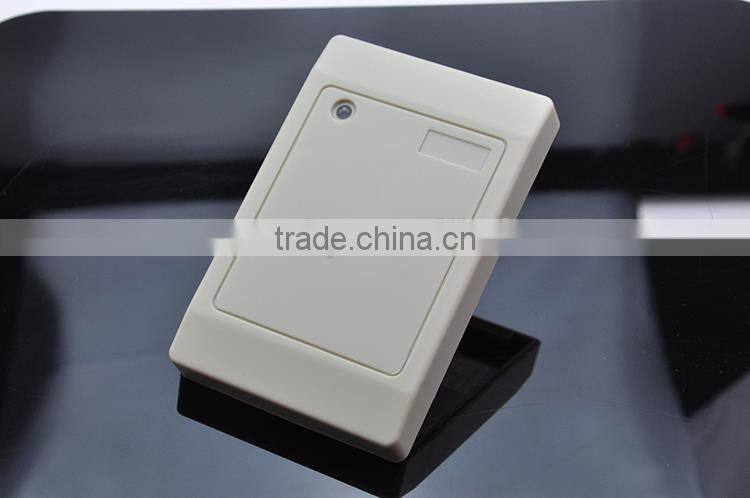

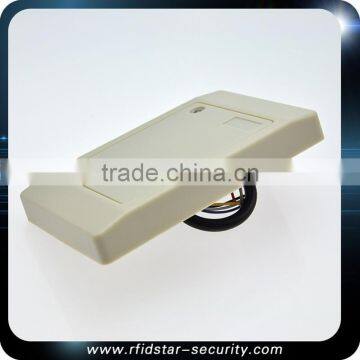

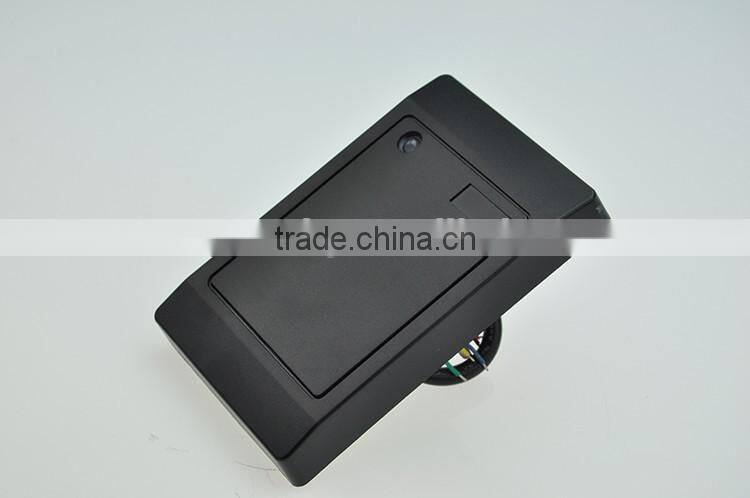

Access Control nfc smart card reader for access control system
- 5000 Piece / Pieces per Month
- Shanghai Shenzhen and any port in China
- T/T L/C D/P D/A Credit Card PayPal
- Reader System Panel Card Keypad Gate Door Access Control Rfid Reader
- 13.56mhz NFC RFID Waterproof Rs232 RFID Reader HF Card Reader With Rs232 Port
- Battery powered 433mhz wireless rfid proximity card reader access control system
- handheld 125KHz ID Card RFID Copier/Writer/Reader/Duplicator
- 10.1 inch ture flat all-in-one tablet pc RFID reader rk3288 android panel pc with capacitive touch lcd screen
- UHF RFID Reader Smart 340 4-port retail system Impinj R2000 long range rfid scanner Smart UHF RFID Reader
Product Details
Place of Origin: | Shanghai, China | Brand Name: | STAR | Model Number: | ST-D01 |
Product Description
| Item | ST-D01 |
Size | 76x114x16mm | |

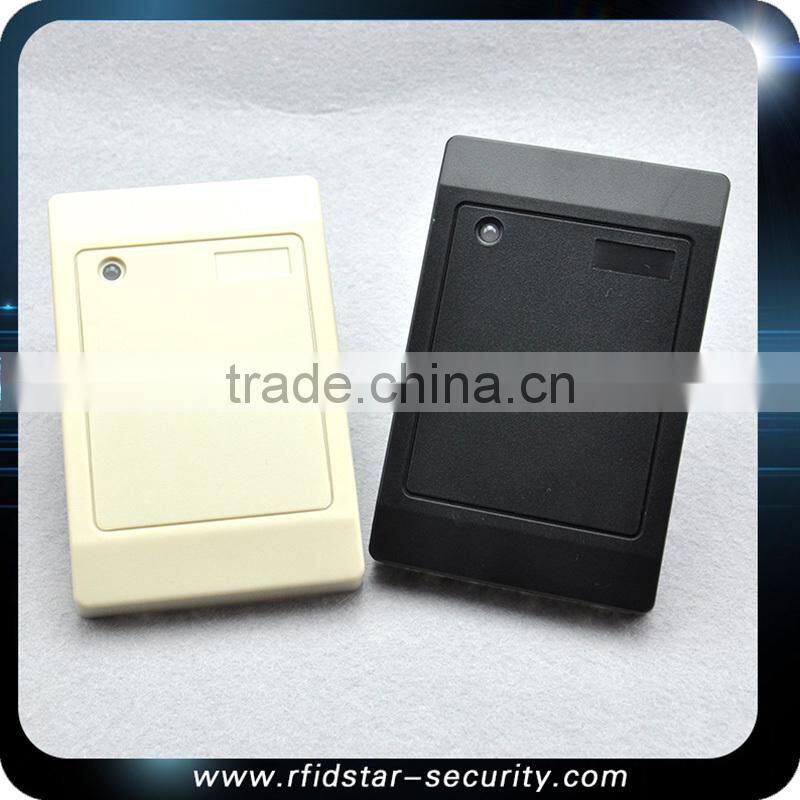

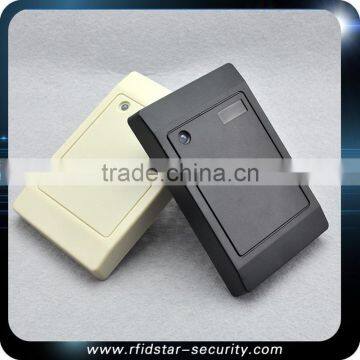

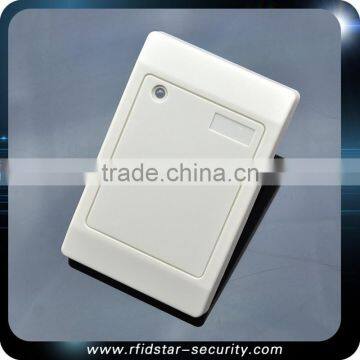

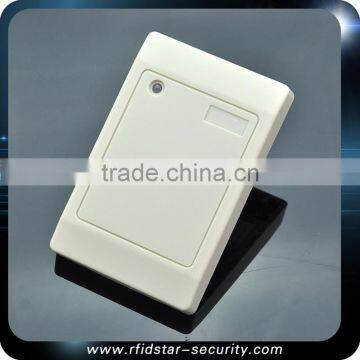

Color | White,Black | |
Metarials | ABS+Epoxy | |
Voltage | DC9~12V | |
Current | Less than 50mA | |
Temperature | -25℃~85℃ | |
Reader speed | Less than 0.2sec | |
Humidity | 10%~90% | |
Punch interval | Less than 0.5sec | |
Waterproof | IP67 | |
Support | 125KHz EM ID | |
13.56MHz MF IC | ||
Frequency | 125KHz/13.56MHz | |
Communication | Weigand26,Weigand34,RS232,RS485 | |
Communication Distance | The weigand 100m | |
Built-in | Antenna,speaker,buzzer,red(bule)green color LED | |
Transmission | Weigand,RS232,RS485 | |
Speical Provide | Logo printing,long cable,Reader module,Daul frequency(ID&IC) | |
Application | For access control ,attendance,fees,patrol,card,building onsay, parking systems, highways and rfid application. | |
Advantage | This series of reader with high sensitivity receiver,small operation current,single DC power supply,low price,and high reliability. | |

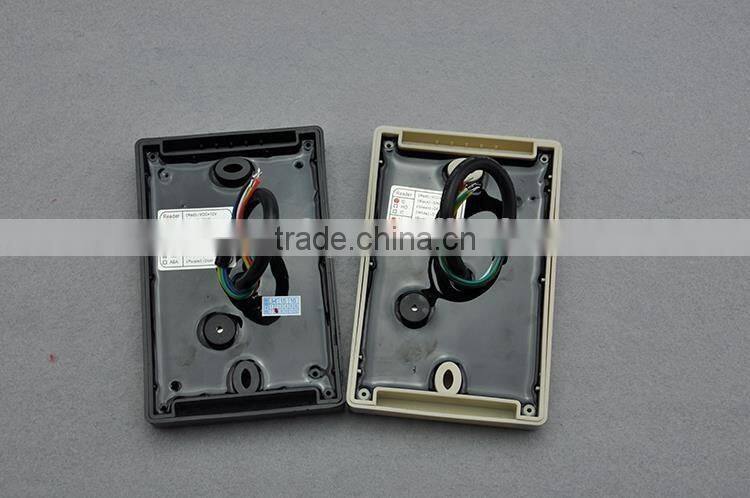

Introduction | Using + type screw driver to loosen the screw between the panel and motherboard. And then embed the motherboard to the side wall with the plastic plug and screws. | |

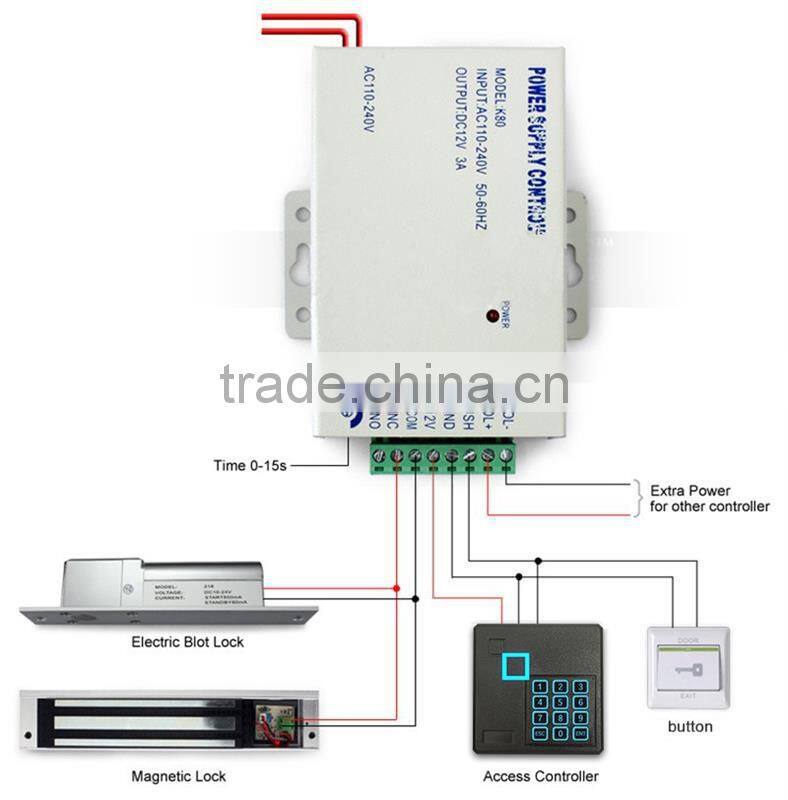

Wire Connection | Red DC 5V-16V | |
Black GND | ||
Blue D1 | ||
White D0 | ||
Brown BEEP | ||
Green LED | ||
Yellow Alarm | ||
Notice | 1. Confirm the electric voltage (DC12V) and differentiate positive anode and cathode of power supply | |
2. When external Power is used, make sure sharing the power with Controller Box or using the same GND | ||
3. When the distance between card reader and controller is more than 50m, please use Power Line with at least 1.5 square cm Dia, or using several parallel Network wires |
Packing:

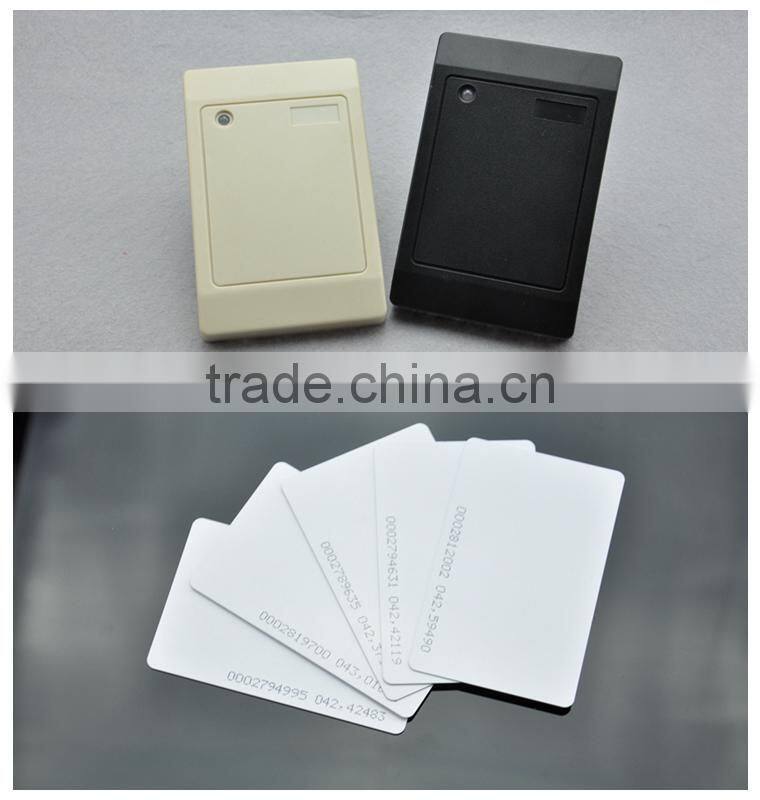

1,Reader/controller
1pc/box, Export Standard Package
2,Card
1pc/opp , 200pcs/box(23x10x6cm) , 5000pcs/carton
packing carton size:
5 box/carton 295x225x112cm
10 box/carton 485x230x135cm
20 box/carton 485x230x245cm
25 box/carton 485x230x305cm
3,Wristband/Keyfob
100 pcs/opp & 10 opp/carton ==>each 1000 PCS in one carton
4,syringe
20pcs/bag(16x8.1cm ) ==>1000pcs/carton(52x40x40cm )
Delivery Detail:
The normal quantity is delivery on 3-7 working days upon receive your payment,the big quantity we should check on our production schedule first then arrange.
Shipping way:
1. Fast way: By express courier, such as: DHL, Fedex, UPS, TNT,EMS... take about 3-7 days.
2. Cheap way(small package):By China post, should take about 15-70 days.
3. Cheap way: By Air or by Sea shipment for heavy parcel

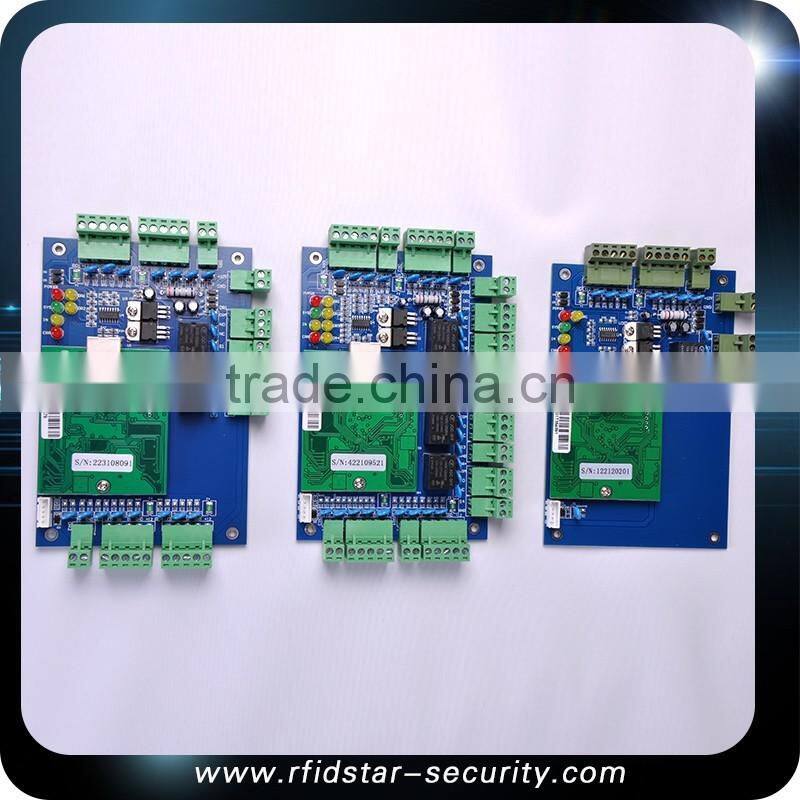

Star Security Technologies(Shanghai)Co., Ltd is a professional manufacturer of Security Products,Main products are the access control RFID reader, offline or TCP/IP network Access Controller, related access control products. Along with the RFID Cards, special mini cards, Smart label, RFID Tags, NFC tag, Also we have special trading business on the Animal Identification, like the Glass tag(microchip), ear tag, comply with ISO11784/11785.
*· Fast lead time
*· 1 Year Warranty
*· Stable delivery way
*· Strict QC management
*· Timely information feedback
*· Small MOQ(Order Quantity Flexible)
Special Offer
Option 1: For ID TK4100 Blank Card or IC FM08 Blank card
If your order above 5000pcs, we will send 1pc ST-D01 Weigand26 ID or IC reader for free!
Option 2: For All Reader
If your order above 20pcs, we will send 30pcs ID or IC Cards for free!
If your order above 50pcs, we will send 50pcs ID or IC Cards for free!
If your order above 100pcs, we will send 100pcs ID or IC Cards for free!
Q:What is MOQ?
A:We accept sample and bulk order, can supply any quantity.
Q: Can I get sample and how long it takes?
A: Sample is free, but you should pay the freight.It usually takes 3-5 days.
Q:Can you make products as custom design?
A: Yes,we can make as your design.
Q: Do you have quality control?
A: Yes,we attach great importance to quality control.
Q: Do you supply the OEM?
A: Yes.OEM is welcome.
Q:About product warranty:
A:1~2 years warranty from the date of delivery, A lifetime technical support.
Q: Is there any tracking Number for my item?
A: Yes, we ship every order with their Tracking Number, and you can view the shipment status on the corresponding website.
Q: Does this product come with retail package?
A: We have declared the packing detail on the description of each product, please check it, thank you!
Q: I am a retailer, I would like to buy many pieces of your item, what's the wholesale price?
A: Hi, thanks for your inquiry, if you would like to buy large quantity or any other questions, please send email to us, we will reply promptly, thanks!
