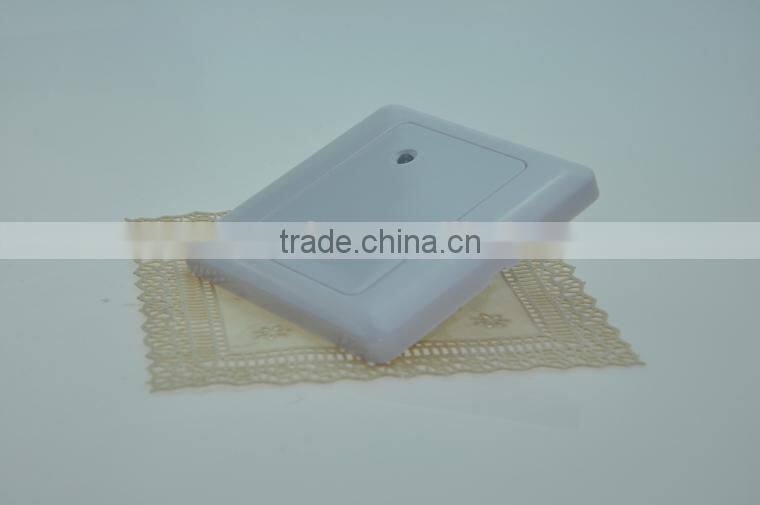

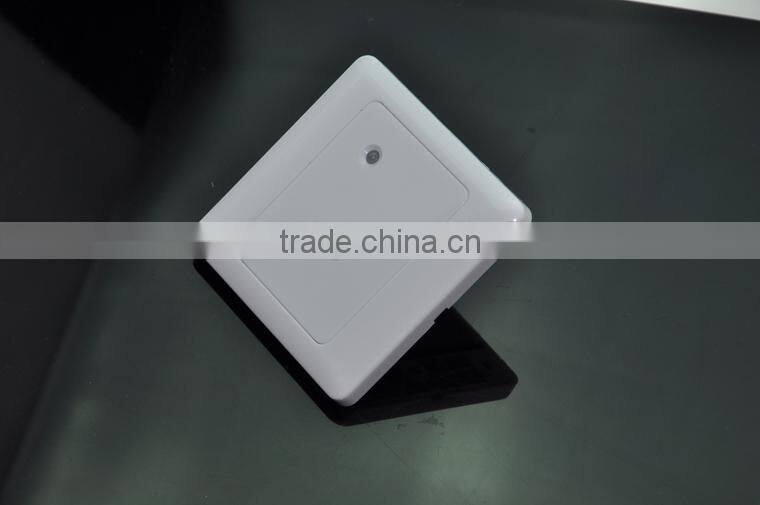

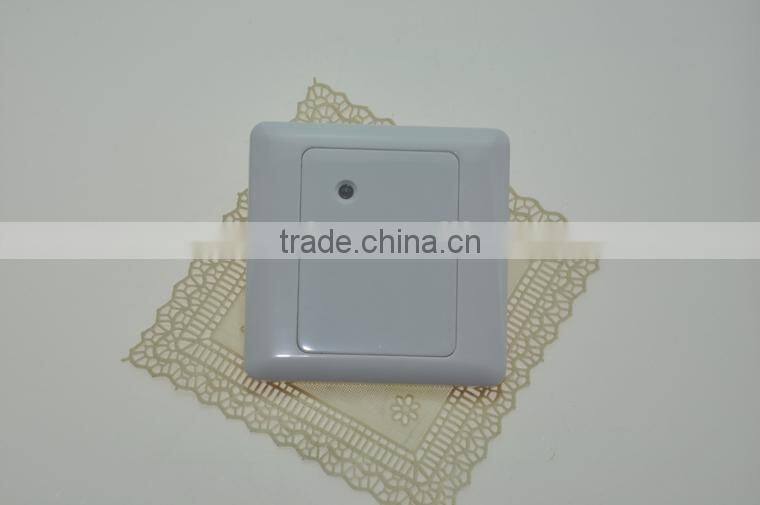

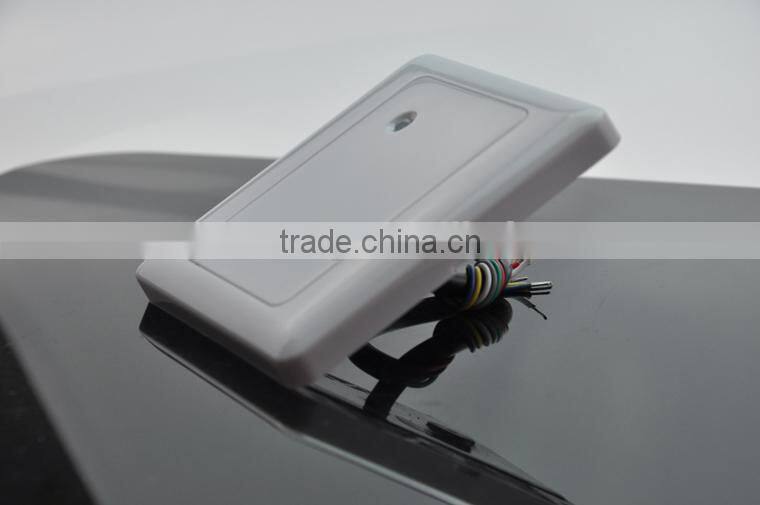

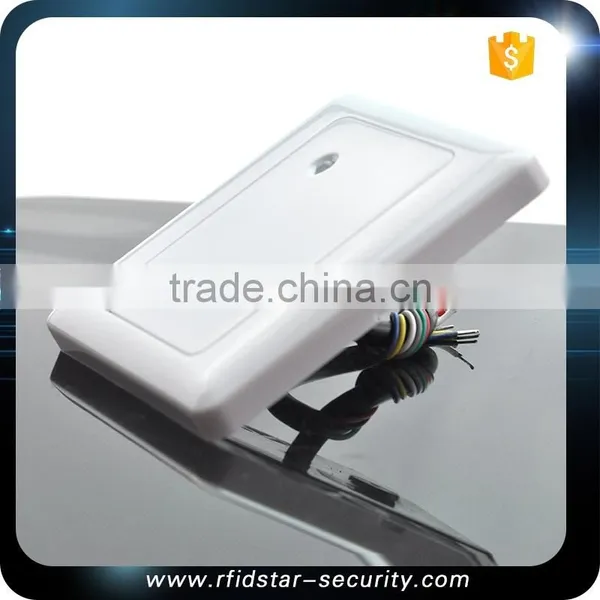

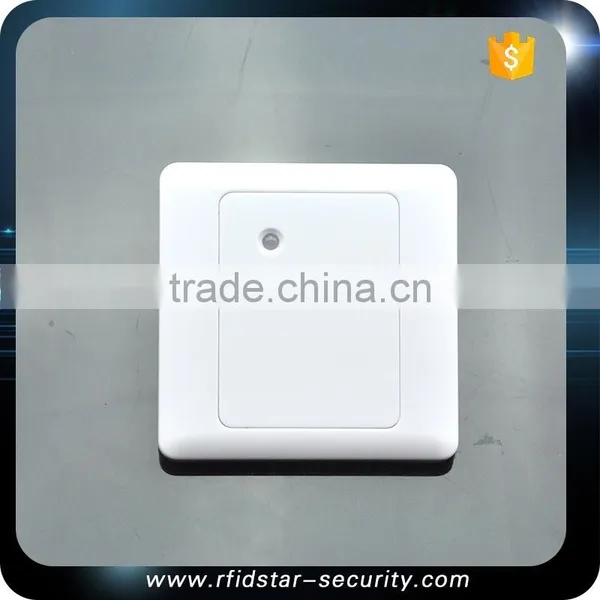

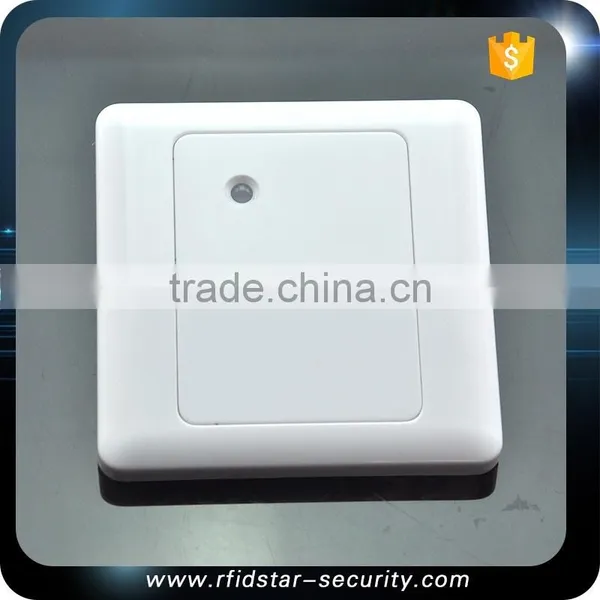

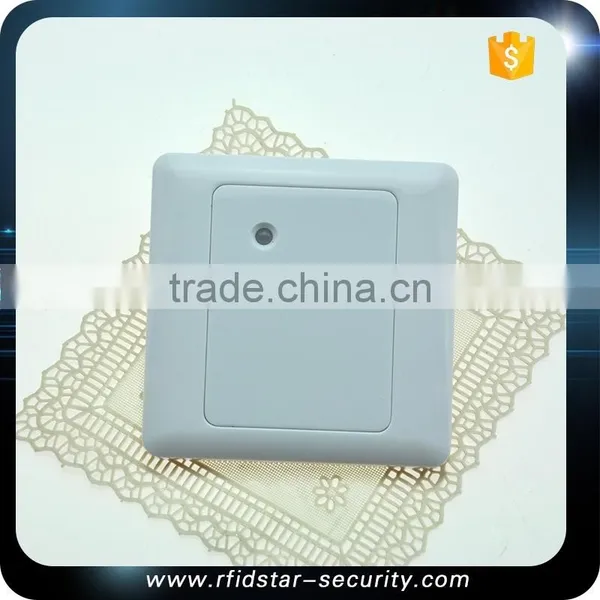

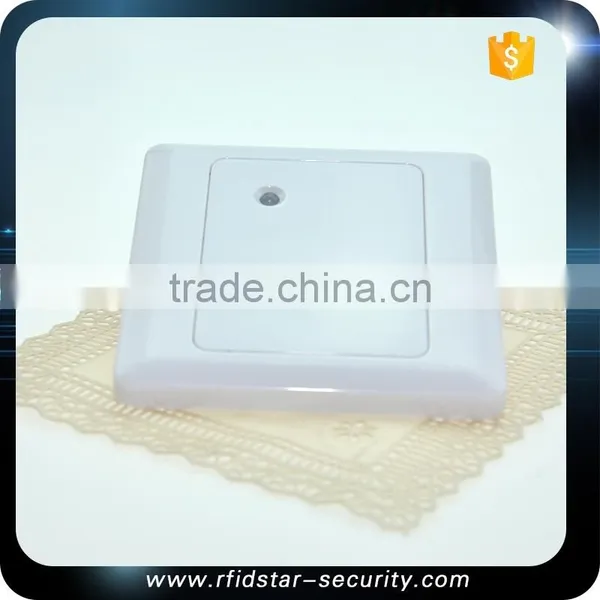

waterproof weigand rfid keyboard reader
waterproof weigand RFID Reader for your smart life!!
|
Technical Parameters | ||||||||||||||
| Item | ST-D15 | |||||||||||||
| Size | 86X86X10mm | |||||||||||||
| Color | White,Black | |||||||||||||
| Metarials | ABS+Epoxy | |||||||||||||
| Voltage | DC9~12V | |||||||||||||
| Current | <50mA | |||||||||||||
| Temperature | -25℃~85℃ | |||||||||||||
| Reader speed | <0.2sec | |||||||||||||
| Humidity | 10%~90% | |||||||||||||
| Punch interval | <0.5sec | |||||||||||||
| Waterproof | IP68 | |||||||||||||
| Support | 125KHz EM ID | |||||||||||||
| 13.56MHz MF IC | ||||||||||||||
| Frequency | 125KHz/13.56MHz | |||||||||||||
| Communication | Weigand26,Weigand34,RS232,RS485 | |||||||||||||
| Communication Distance | The weigand 100m | |||||||||||||
| Built-in | Antenna,speaker,buzzer,red(bule)green color LED | |||||||||||||
| Transmission | Weigand | |||||||||||||
| Speical Provide | Logo printing,long cable,Reader module,Daul frequency(ID&IC) | |||||||||||||

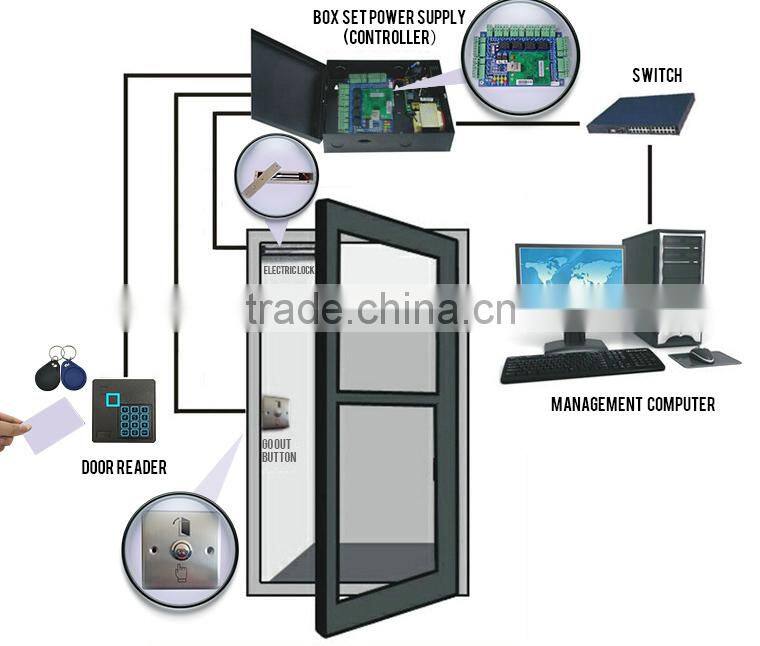

| Application | For access control ,attendance,fees,patrol,card,building on say,parking systems, highways and rfid application. | |||||||||||||
| Advantage | This series of reader with high sensitivity receiver,small operation current,single DC power supply,low price,and high reliability. | |||||||||||||
| Introduction | Using + type screw driver to loosen the screw between the panel and motherboard. And then embed the motherboard to the side wall with the plastic plug and screws. | |||||||||||||

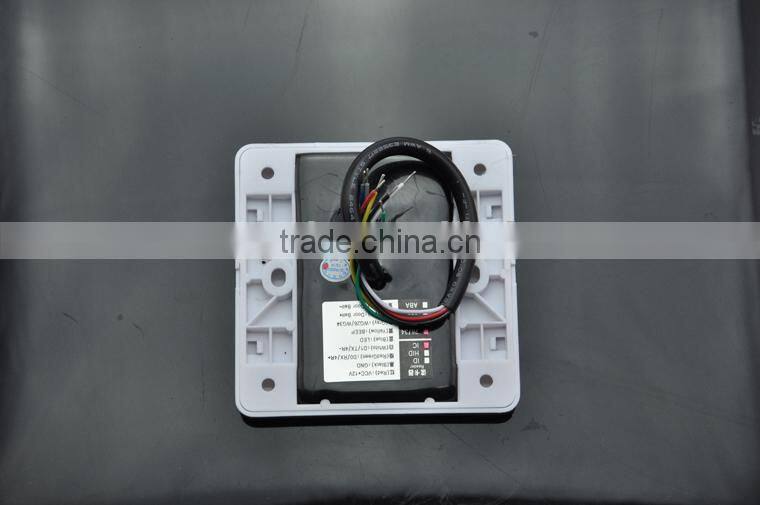

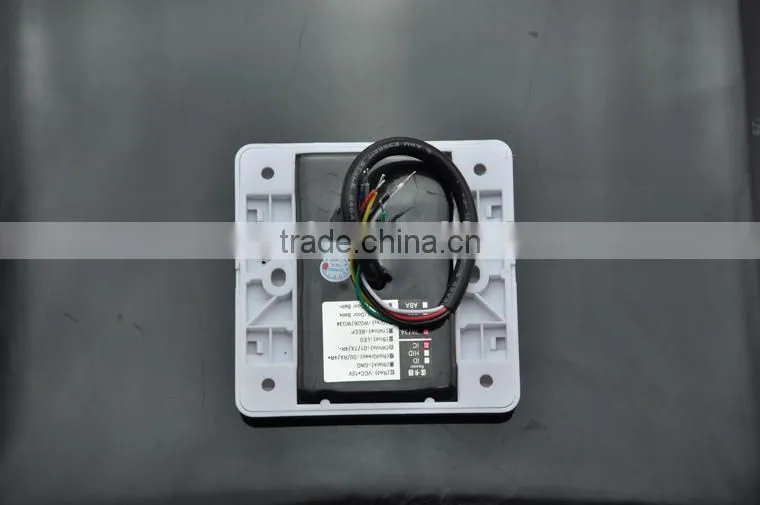

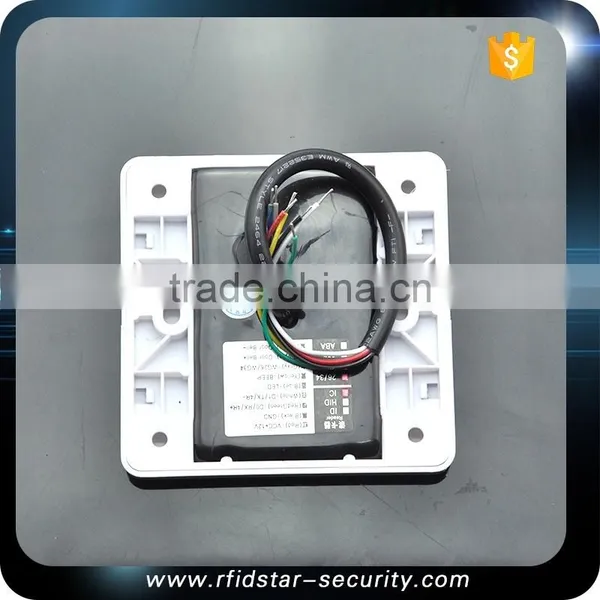

| Wire Connection | Red DC 5V-16V | |||||||||||||
| Black GND | ||||||||||||||
| Blue D1 | ||||||||||||||
| White D0 | ||||||||||||||
| Brown BEEP | ||||||||||||||
| Green LED | ||||||||||||||
| Yellow Alarm | ||||||||||||||
| Notice | 1. Confirm the electric voltage (DC12V) and differentiate positive anode and cathode of power supply | |||||||||||||
| 2. When external Power is used, make sure sharing the power with Controller Box or using the same GND | ||||||||||||||
| 3. When the distance between card reader and controller is more than 50m, please use Power Line with at least 1.5 square cm Dia, or using several parallel Network wires | ||||||||||||||
Option 1:
ID TK4100 Blank Card or IC FM08 Blank card
If your order above 5000pcs, we will send 1pc ST-D01 Weigand26 ID or IC reader for free!
Option 2:
For All Reader
If your order above 20pcs, we will send 30pcs ID or IC Cards for free!
If your order above 50pcs, we will send 100pcs ID or IC Cards for free!
If your order above 100pcs, we will send 500pcs ID or IC Cards for free!
100% Waterproof Metal case Standalone Controller and Reader
STAR SECURITY TECHNOLOGIES(Shanghai)Co., Limited is a professional manufacturer of Security Products, Main products are the access control RFID reader, offline or TCP/IP network Access Controller, related access control products. Along with the RFID Cards, special mini cards, Smart label, RFID Tags, NFC tag, Also we have Special trading business on the Animal Identification, like the Glass tag(microchip), ear tag, comply with ISO11784/11785.
·1 Year Warranty
·Fast lead time
·Stable delivery way
·Strict QC management
·Timely information feedback
1. Inquiry-Professional quotation. |
2. Confirm the price, lead time, artwork, payment term etc. |
3.our sales send the Proforma Invoice with our seal. |
4. Customer make the payment for deposit and send us Bank receipt. |
5. Initial Production Stage-Inform the clients that we have got the payment,And will make the samples according to your request, send you photos or Samples to get your approval. After approval, we inform that we will arrange the production & inform the estimated time. |
6. Middle Production-send photos to show the production line which you can see your products in . Confirm the estimated delivery time again. |
7. End Production-Mass production products photos and samples will send to you for approval. |
8. Inform the tracking number and check the status for clients. |
9. Order can be say “finish” when you receive the goods and satisfy with them . |
10. Feedback to our about Quality , Service, Market Feedback & Suggestion. And we can do better . |
