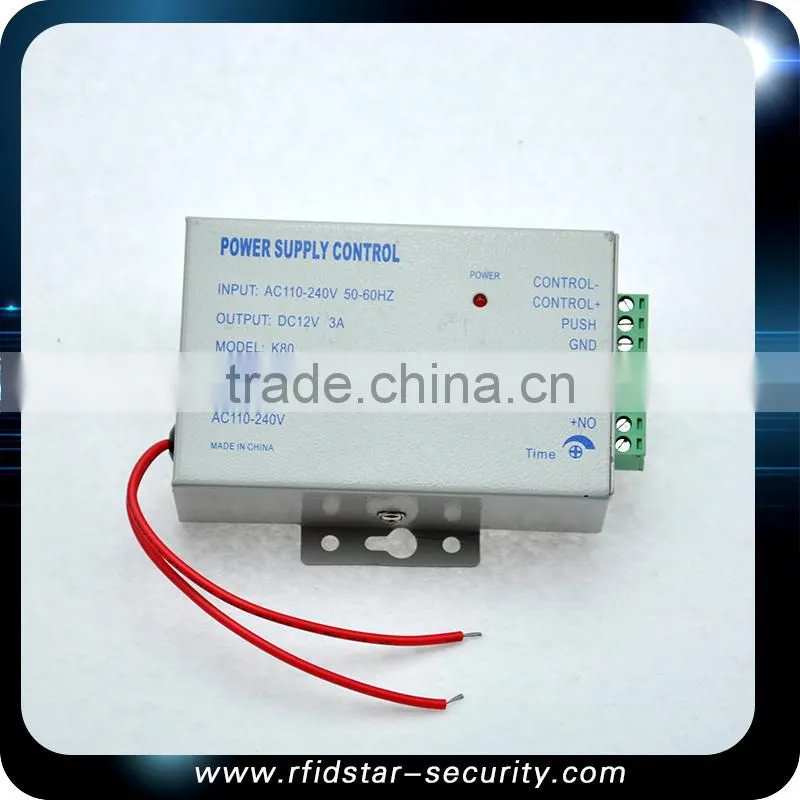

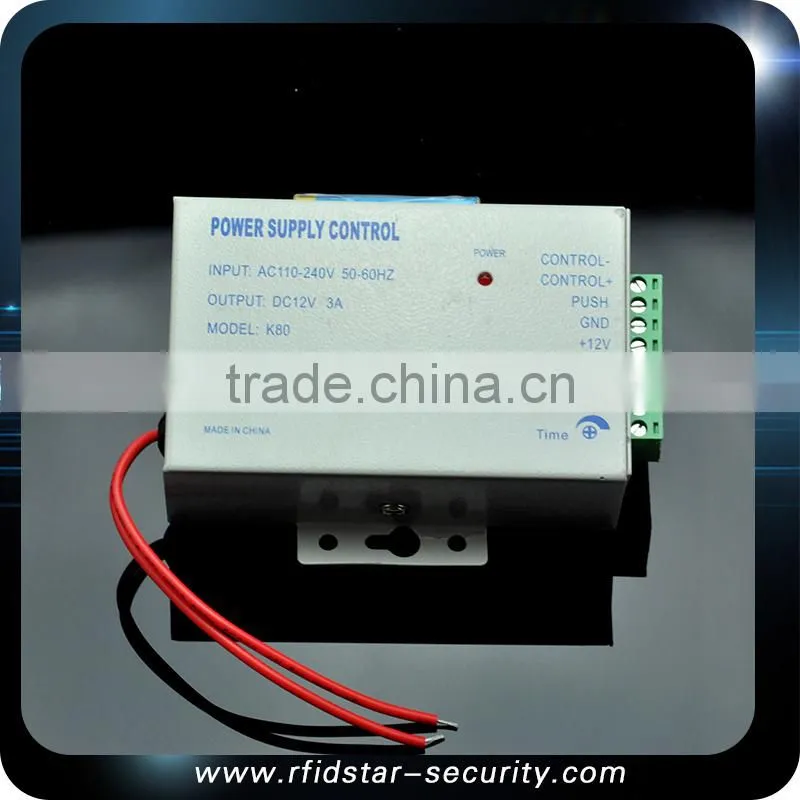

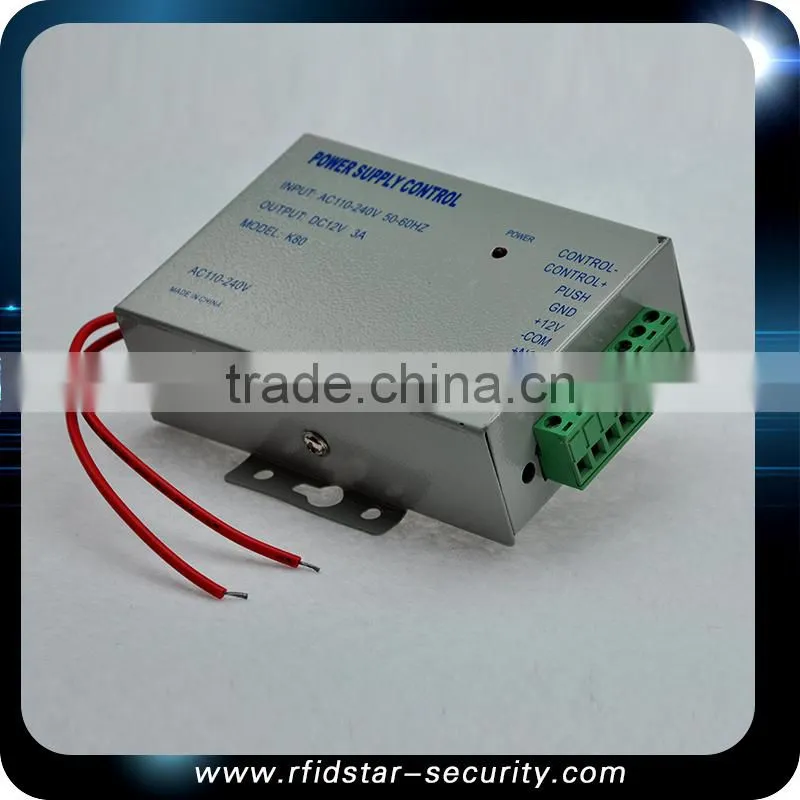

Professional Access System Power Supply DC 12V 3A /AC 110~240V
| Access Control power supply Specification | |
| Dimensions | 120Lx95Wx38H(mm) |
| Input Voltage | 110VAC~260VAC;50HZ~60HZ |
| Output Voltage | 12VDC |
| ripple voltage | Up ≤ 50mV |
| Output Power | 50W |
| Output current | 3A ( largest ) |
| Output Contact | Access control, Electric Lock, Release Button |
| Time Relay | 0~15sec. |
| Standard Designe | Steel material, Painted |
| Protect Safely | Short Circuit protection |
| Suitable For | Access control, Electric lock |
| Weight | 0.4kg |
| Warranty | 12 months |
| Protection Level | 2 |
| Fourth, the output terminal wiring diagram | Figure |
| Features | |
|
1: NO terminal and COM terminal , normally open no output , the key trigger output DC12V, connected electronically controlled lock(0-15 seconds delay , a positive , three negative ) ; | |
|
2: NC terminal and COM terminal , normally closed output DC12V, after the power button is triggered, then the electric or magnetic latch,Power locks ( 0-15 seconds delay , 2 positive, 3 negative ) ; | |
| 3: DC12V output voltage regulation, 4 is positive , 5 negative ; | |
|
4: open button input terminal ( for negative power supply ) , which can be accessed switch output (relay output, low )control Electric lock access control system ; | |
|
5: open button input terminal ( on the positive power supply ) , which can be accessed switch output ( relay output, high level ) control ,Electric lock access control system ; | |
|
6: 12V input voltage door, dedicated to the direct control of the output voltage electric lock access control | |

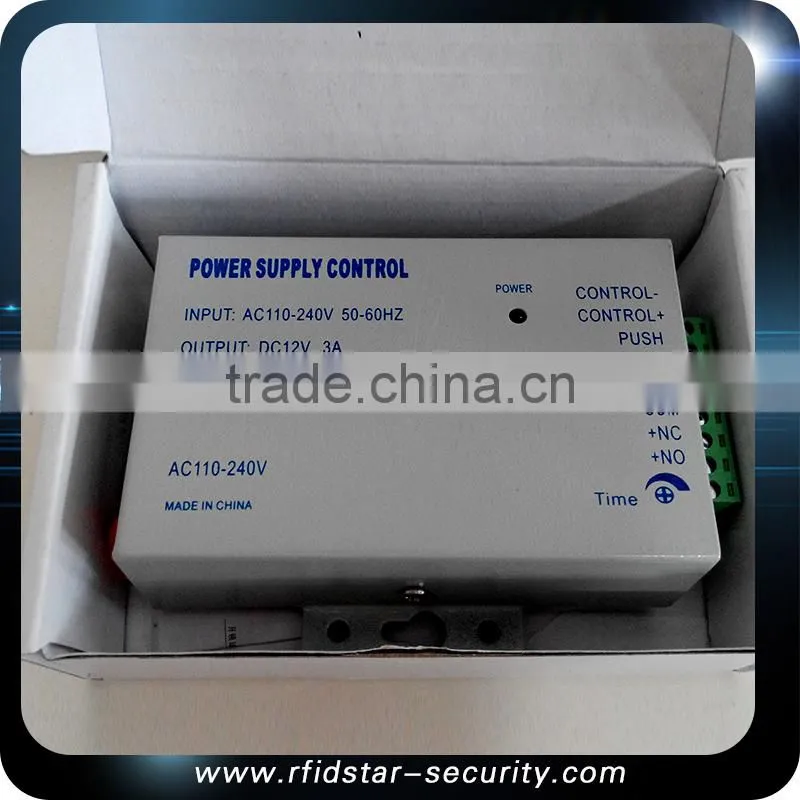

Packing:
1pc/bag,1bag/box by export standard package.
Delivery Detail:
the normal quantity is delivery on 3-7 working days upon receive your payment,the big quantity we should check on our production schedule first then arange.
Shipping way:
1. Fast way: By express courier, such as: DHL, Fedex, UPS, TNT,EMS... take about 3-7 days.
2. Cheap way(small package):By China post, should take about 15-70 days.
3. Cheap way: By Air or by Sea shipment.
2015 Newest type 100% Waterproof IP68 Metal case Access Control Reader & Stand alone Access Controller
