Square Mini Card Reader RFID With Wiegand Output

Square Mini Card Reader RFID With Wiegand Output photo-1

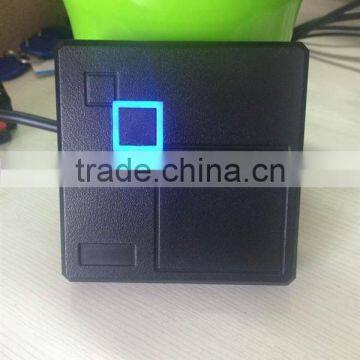

Square Mini Card Reader RFID With Wiegand Output photo-2

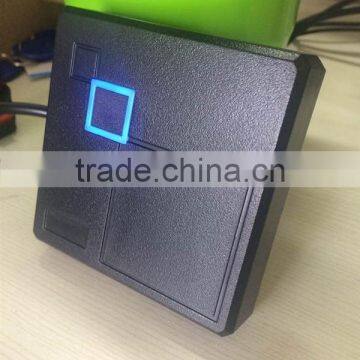

Square Mini Card Reader RFID With Wiegand Output photo-3
Square Mini Card Reader RFID With Wiegand Output photo-4

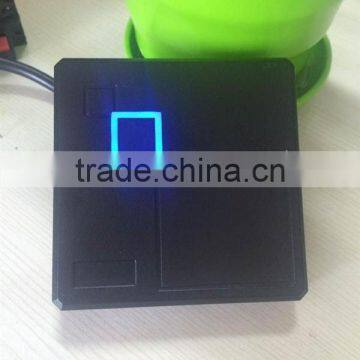

Square Mini Card Reader RFID With Wiegand Output photo-5
Square Mini Card Reader RFID With Wiegand Output photo-6
US$ 7 - 14 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
STAR
Model Number:
ST-N02
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Shenzhen and any port in China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shanghai, China
Brand Name STAR
Model Number ST-N02
Square Mini Card Reader RFID with Wiegand Output

P
Production Description

Square Mini Card Reader RFID with Wiegand Output




Item ST-N02
Size 86x86x18mm
Color White,Black
Metarials ABS+Epoxy
Voltage DC9~12V
Current
Temperature -25℃~85℃
Reader speed
Humidity 10%~90%
Punch interval
Waterproof IP67
Support 125KHz EM ID
13.56MHz MF IC
Frequency 125KHz/13.56MHz
Communication Weigand26,Weigand34,RS232,RS485
Communication Distance The weigand 100m
Built-in Antenna,speaker,buzzer,red(bule)green color LED
Transmission Weigand,RS232,RS485
Speical Provide Logo printing,long cable,Reader module,Daul frequency(ID&IC)

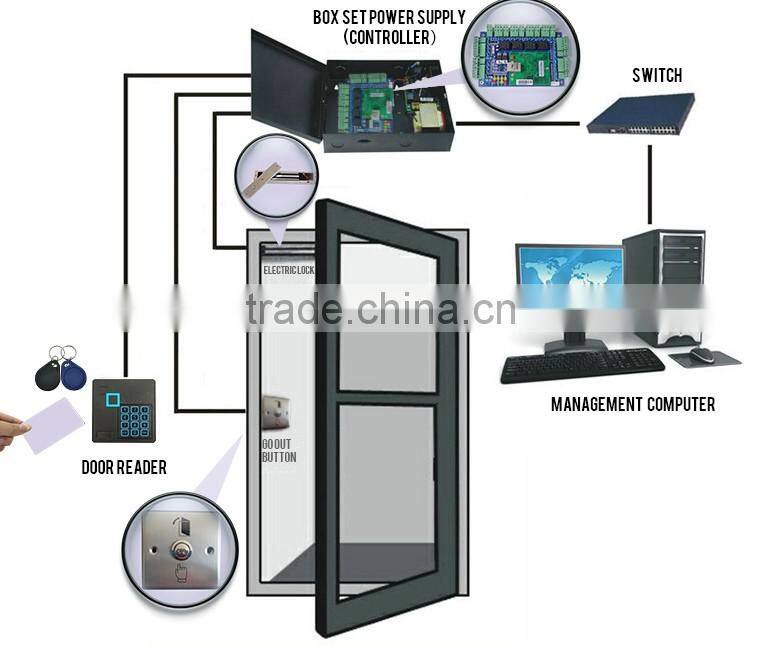

Application

For access control ,attendance,fees,patrol,card,building onsay,

parking systems, highways and rfid application.

Advantage

This series of reader with high sensitivity receiver,small operation

current,single DC power supply,low price,and high reliability.

Introduction

Using + type screw driver to loosen the screw between the panel

and motherboard. And then embed the motherboard to the side wall with

the plastic plug and screws.

Wire Connection Red DC 5V-16V
Black GND
Blue D1
White D0
Brown BEEP
Green LED
Yellow Alarm
Notice

1. Confirm the electric voltage (DC12V) and differentiate positive

anode and cathode of power supply

2. When external Power is used, make sure sharing the power with

 Controller Box or using the same GND

3. When the distance between card reader and controller is more than 50m,

please use Power Line with at least 1.5 square cm Dia, or using several

parallel Network wires




P

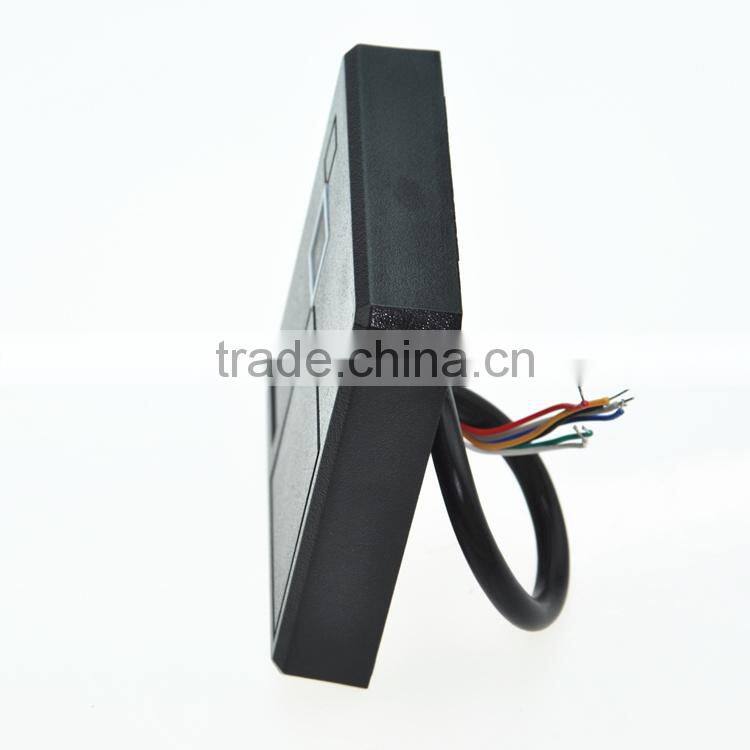

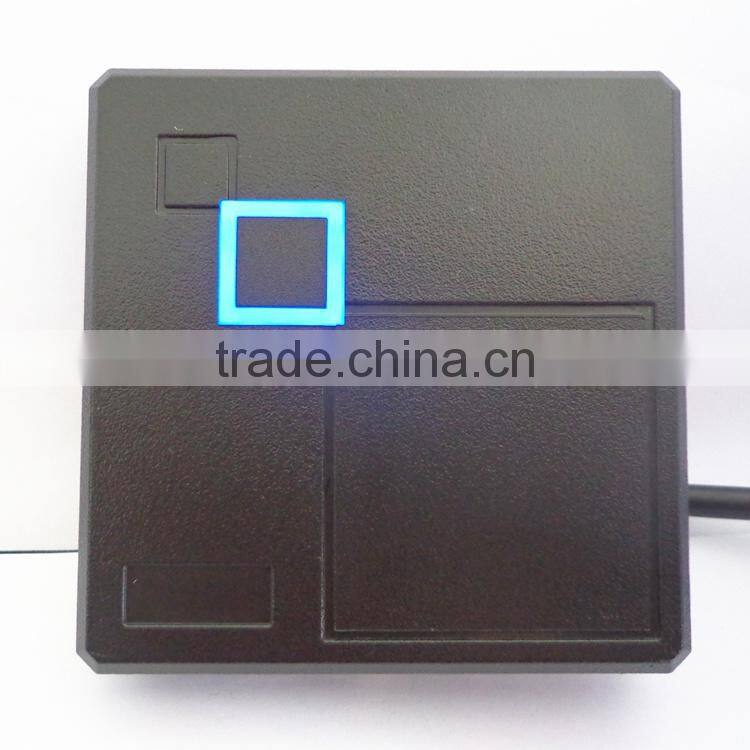

Produsts Details Picture


Square Mini Card Reader RFID with Wiegand Output
Square Mini Card Reader RFID with Wiegand Output
Square Mini Card Reader RFID with Wiegand Output
Square Mini Card Reader RFID with Wiegand Output





P
Packing&Shipment


Square Mini Card Reader RFID with Wiegand Output



Packing:
1pcs/box, Export Standard Package




Square Mini Card Reader RFID with Wiegand Output



Delivery Detail:
The normal quantity is delivery on 3-7 working days upon receive your payment,the big quantity we should check on our production schedule first then arange.



Shipping way:
1. Fast way: By express courier, such as: DHL, Fedex, UPS, TNT,EMS... take about 3-7 days.
2. Cheap way(small package):By China post, should take about 15-70 days.
3. Cheap way: By Air or by Sea shipment for heavy parcel




A
About US


Star Security Technologies(Shanghai)Co., Ltd is a professional manufacturer of Security Products,Main products are the access control RFID reader, offline or TCP/IP network Access Controller, related access control products. Along with the RFID Cards, special mini cards, Smart label, RFID Tags, NFC tag, Also we have special trading business on the Animal Identification, like the Glass tag(microchip), ear tag, comply with ISO11784/11785.

Square Mini Card Reader RFID with Wiegand Output





S

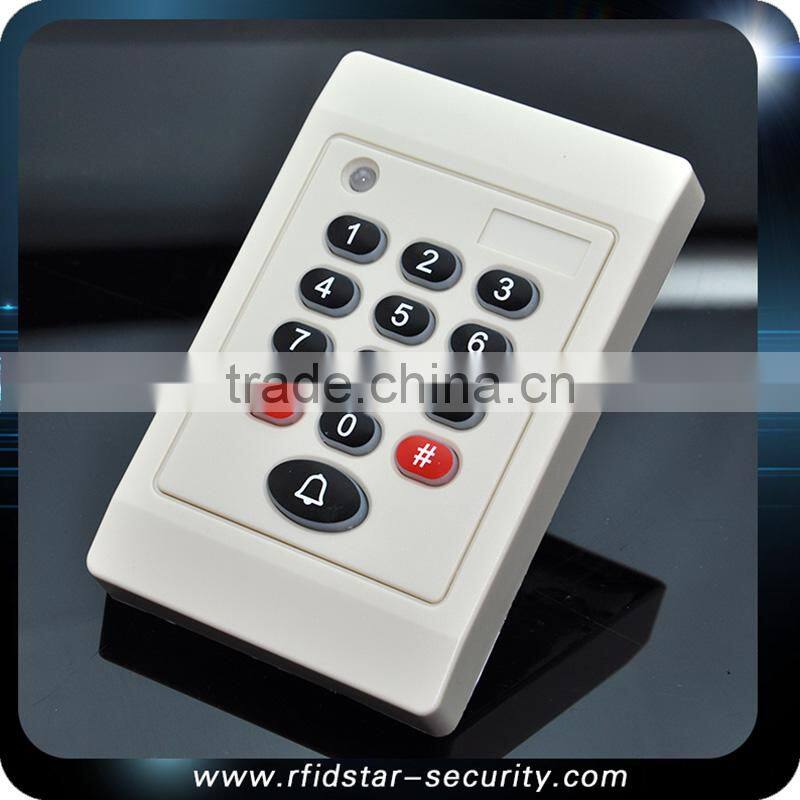

Series Products


Square Mini Card Reader RFID with Wiegand Output
Square Mini Card Reader RFID with Wiegand Output





O
Our Service


·Fast lead time
·1 Year Warranty
·Stable delivery way
·Strict QC management
·Timely information feedback
·Small MOQ(Order Quantity Flexible)



F
FAQ


Q: For this animal microcip,it's have GPS function?
A: No, all animal microchip have no GPS function, our microchip just like the ID number give to the animal. then you can management the animal by the ID.

Q:For the waterproof type items,it's 100% waterproof?
A: Yes, if we marked the products is waterproof, that's mean 100% waterproof.

Q:What's the lead time?
A: For normal products, like blank chip cards. Weigand interface reader,1.4x8mm,2x12mm,1.25x7mm microchip&syringe, we will have some there products in stock to keep the fast delivery.

Q:Is there can accept Custom?
A: Sure, we accept Custom. Like the access control reader, we can make the special interface,RS232,RS485,Dual frequency reader(ID&IC at same time), 1M long wiring,logo printing...
RFID Card,RFID Tag,RFID Label, printing by your design,or design for you follow up your requirements.
