types of poultry house with egg collection system machine
| user | Type | Tiers /set | size | cell size | capacity/set | |||||||||||||
layer |
A type | 3 tiers | 195*230*150 cm/set | 39*38*38cm /cage | 90 chickens | |||||||||||||
3tiers |
195*230*150cm /set 215*230*150cm /set |
39*41*41cm/cage 43*42*40cm/cage | 120 chickens | |||||||||||||||
| 3 tiers | 215*235*150cm /set | 43*50*41cm/cage | 150 chickens | |||||||||||||||
| 4 tiers |
195*265*170 cm/set 215*265*170 cm/set |
39*41*41cm/cage 43*42*40 cm/cage |
160 chickens | |||||||||||||||
Material:
Q235 national standard double cold glvanized bridge steel cage,white PVC feed trough,ball type automatic water equipment ,white PVC pipe ,3MM U type galvanized seel shelves,closed-end pressure-reducer.
Leg support :
3mm u type galvanized steel shelves.3mm thick steel plate. u sharp design .can withe standard pressure of 350kg.with double -dip galvanizing,useful life 15 years at least.
Nipple drinker :
ball valve trpe automatic water equipment :360 degree rotating design,big flow rate ,enough water .no seepage .it is very easy to meet chickens's drinking. 14 years lifespan is no problem.
white pvc pipe:
3mm pvc pipe .it will not deformation.if high temperature,no damage.impurities in the water will not to produce a chemical reaction ,can make sure the chickens will drinking clean water.lifespan is 15 years at least.
feed trough:
4mm pvc white feed trough.no broken .lifespan is 15 years at least.
pressure reducer :
fully enclosed design,voltage regelator and filter together ,you can adjust the water pressure according to the lengh of the sheds.
H type layer cage
| item (tiers ) | dimenction (L*W*H cm ) | cell size | capacity / cage | capacity /set |
| 3 | 228*240*243cm | 45*60*41cm | 6 | 180 |
| 4 | 228*240*300cm | 45*60*41cm | 6 | 240 |
| 5 | 228*240*357cm | 45*60*41cm | 6 | 300 |
| 6 | 228*240*420cm | 45*60*41cm | 6 | 360 |
Feeding system for A type chicken cage or H type chicken cage:
Manure cleaning system for A type chicken or H type chicken cage :
Egg collection system for A type chicken or H type chicken cage :
Fan and cooling pad system for A type chicken or H type chicken cage :
Customers visiting :

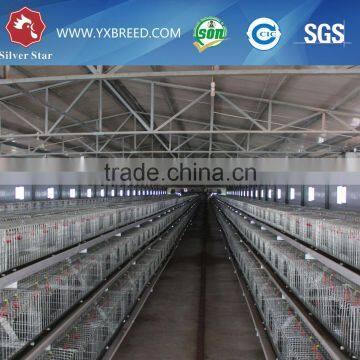

Project case:
The feed house size is 120L*11W*3H .total 3 row ,56 cages per row.120 chicken per cage ,168 units cages total.catacity :20160 chicken total.
our products show:
H type information:
if you want use this one type,you need to feed more than 30000 chicken.this type is a full automatic machine.including drinking water system,feeding system ,automatic manure cleaning system,automatic collecting egg machine ,cooling pad and etc.
egg collection system ,manure cleaning system ,feeding system .
Delivery time :
deliverry time is around 15 - 25 working days.need to according the order.
Packing details :
Sliver Star company established in 1991,specializing in producing layer,broiler chicken cage and poultry equipment for more than 20 years.
We have been export to all part of the word,like pakistan ,russia ,south africa and etc. If you trust our factory,we would like to help you in this line.
1,why we would trust your company ?
We have morn than 20 years in this line.we have a strong team.
2,what is the advantage of product ?
Good seivices ,best price with high quality ,fast delivery time.also ,we can send our engineer to your country to help you.
3,What is your payment?
1)T/T 30% In advance and the 70% after you received the copy of BL
2)We can accecpt L/C
3)Alibaba credit guarantee payment
4,what is your minimum order quantity ?
MOQ is one 20 feet container
5,how many chicken cage for 20feet container ?
One 20 feet container can loading 100-150 set
