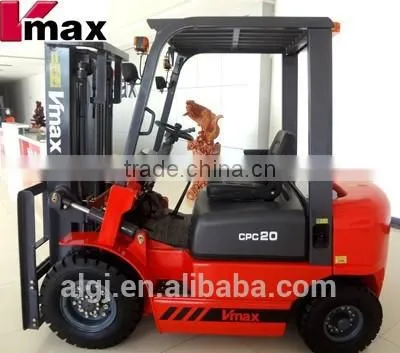

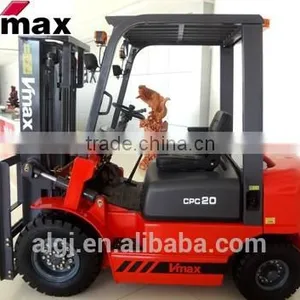

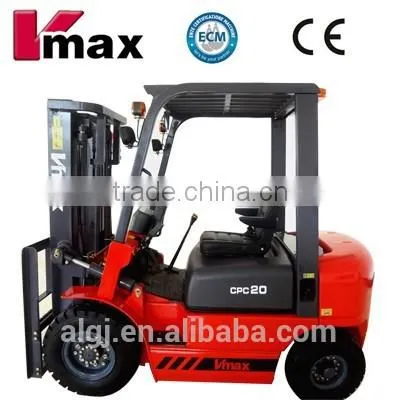

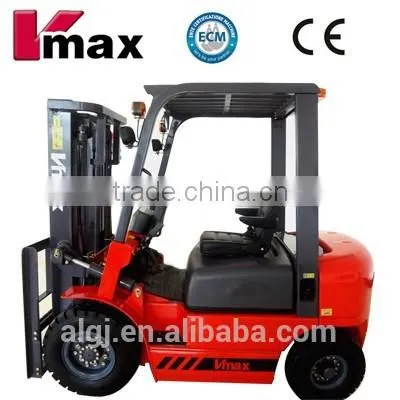

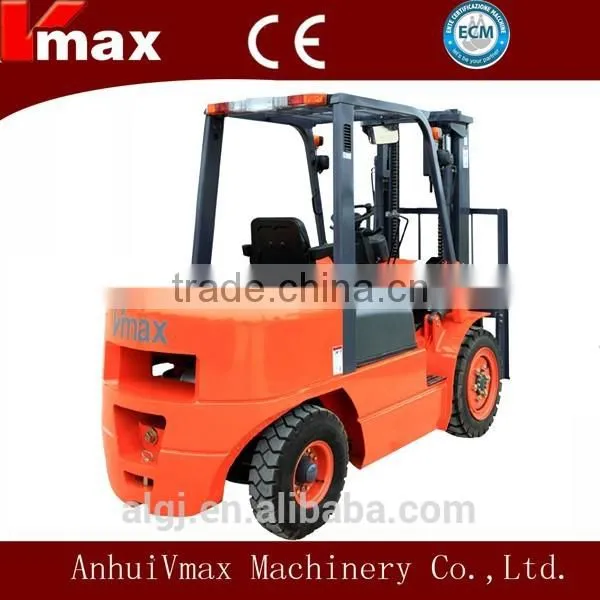

Help CenterCPCD20 2ton VMAX Diesel Forklift Truck From the Biggest China Forklift Production Base HEFEI
Related Products
High performance famous brand China made forklift, 2ton diesel VMAX Forklift for sale!
About 2.0-3.5 ton small diesel forklifts:
These diesel forklift trucks come with fuel-injected engines that provide excellent horsepower and torque in hard-working material handling environments. The fuel management system optimizes fuel economy and extends tire life.
Vmax also has some heavy lift forklifts.
1. Full automatic stepless speed adjustable electric controlled transmission gear box guarantee the forklift with superior travel and track performance.
2. New type engine with super power has features of good performance ,low fuel consumption ,enough power reservation ,EPA standard displacement level.
3. Advanced hydraulic system ,2-speed lifting system can automatically adjust its lifting speed according to the goods weight ,electric controlled valve can work safety and efficiently.
4. Eqiupment with heavy –duty driving axle with big bearing capacity and enhanced oil –cooled braking system, increase the reliabillgy and durability.
5. Equipments with fine safety monitor to make it has clear visibility, 3-step switch-lock confirmation device to guarantee safe work. 6.Centralize controlled lever and stimulant automatic instrument is easy operated and has beautiful appearance.
7.high strength mast of CJ shape welded by refined steel, has features of high strength and rigid .Sweden "H" typed ELME spreader up to advanced international level, enhance its operation and reliability.
8. New cabin has comfort windows and wide view, with air conditioner can modify the operative circumstance.
9. The whole truck has advanced technology, beautiful, appearance, reasonable layout, is the best new model.
Specifications of diesel lift truck:
| General | Manufacturer | Vmax | |||||||
| 1 | Model | FD20 | FD25 | FD30 | FD35 | ||||
| 2 | Rated capacity | kg | 2000 | 2500 | 3000 | 3500 | |||
| 3 | Load center | mm | 500 | ||||||
| 4 | Gearbox change speed type | Hydraulic/Mechanical | |||||||
| 5 | Power type | Diesel | |||||||
| 6 | Tire type | Front/ Rear | Pneumatic | ||||||
| 7 | Wheels | Front/ Rear | 2/2 | ||||||
| Dimensions | 8 | Lift height | mm | 3000 | |||||
| 9 | Free lift height | mm | 140 | 145 | |||||
| 10 | Fork size | L*W*T | mm | 1070x120x40 | 1070x120x45 | 1070x125x45 | 1070x130x45 | ||
| 11 | Mast tilt angle | Fwd/Bwd | deg | 6/12 | |||||
| 12 | Overall length (without fork) | mm | 2510 | 2580 | 2720 | 2775 | |||
| 13 | Overall width | mm | 1150 | 1225 | |||||
| 14 | Mast height fork lowered | mm | 2050 | 2080 | 2230 | ||||
| 15 | Overall height fork raised | mm | 4040 | 4272 | |||||
| 16 | Overall height (overhead guard) | mm | 2060 | 2090 | |||||
| 17 | Turning radius (outside) | mm | 2170 | 2240 | 2460 | 2540 | |||
| 18 | Load distance (centerline of front axle to front face of forks) | mm | 484 | 489 | 494 | 500 | |||
| 19 | Travel speed (full load /no load ) | (Hydraulic) | km/h | 17/19 | 18/19 | ||||
| 20 | Mechanical) | shift 1 | km/h | 8.5/9 | 8.8/9 | ||||
| 21 | shift 2 | km/h | 18.5/19 | 18.5/20 | |||||
| 22 | Wheel base | mm | 1650 | 1700 | |||||
| 23 | Tread | Front | mm | 970 | 1000 | ||||
| 24 | Rear | mm | 970 | ||||||
| 25 | Min. Under-clearance (full load / no load ) | Bottom of mast | mm | 85/105 | 110/135 | ||||
| 26 | Bottom of frame | mm | 115/120 | 135/140 | |||||
| Performance | 27 | Speed | Travel speed | With load | km/h | 17 | 18 | ||
| 28 | Without load | km/h | 19.5 | 19.5 | |||||
| 29 | Lifting speed | With load | mm/sec | 470 | 430 | 400 | |||
| 30 | Without load | mm/sec | 600 | 500 | 450 | ||||
| 31 | Max. Drawbar pull | With/ without load | kg | 1250/850 | 1250/850 | 1100/1000 | 1304/1190 | ||
| 32 | 1650/850 | 1650/850 | 1350/1000 | 1696/1190 | |||||
| 33 | Max.Gradeability | With/ without load | % (fan) | 20/20 | 17/18 | 15/18 | 15/18 | ||
| 21/22 | 18/19 | 19/20 | 15/18 | ||||||
| 34 | Max.Gradeability | % | 20 | 15 | |||||
| Weight | 35 | Self weight | kg | 3550 | 3880 | 4380 | 4750 | ||
| 36 | Weight distribution | With load | Front | kg | 4730 | 5480 | 6455 | 7320 | |
| 37 | Rear | kg | 590 | 700 | 825 | 930 | |||
| 38 | Without load | Front | kg | 1520 | 1465 | 1720 | 2040 | ||
| 39 | Rear | kg | 1800 | 2215 | 2560 | 2710 | |||
| Tyre | 40 | Tyre | Size | Front | 7.00-12-12PR | 28x9-12-12PR | 28x9-15-14PR | ||
| 41 | Rear | 6.00-9-10PR | 6.50-10-10PR | ||||||
| Brake | 42 | Brake | Service | Hydraulic-Foot pedal | |||||
| 43 | Parking | Mechanical-Hand lever | |||||||
| Transmission | 44 | Battery | Voltage /Capacity | V/AH | 12/100 | ||||
| 45 | Internal combustion engine | Model for option | 1. XINCHANG ; 2. ISUZU ;3. YANMAR; 4. DEUTZ | ||||||
| 46 | Transmission | Type | Hydraulic/Mechanical | ||||||
| 47 | shift (Fwd/Rvs) | 1/1 (2/2) | |||||||
| 48 | Work pressure | Mpa | 17.5 | ||||||

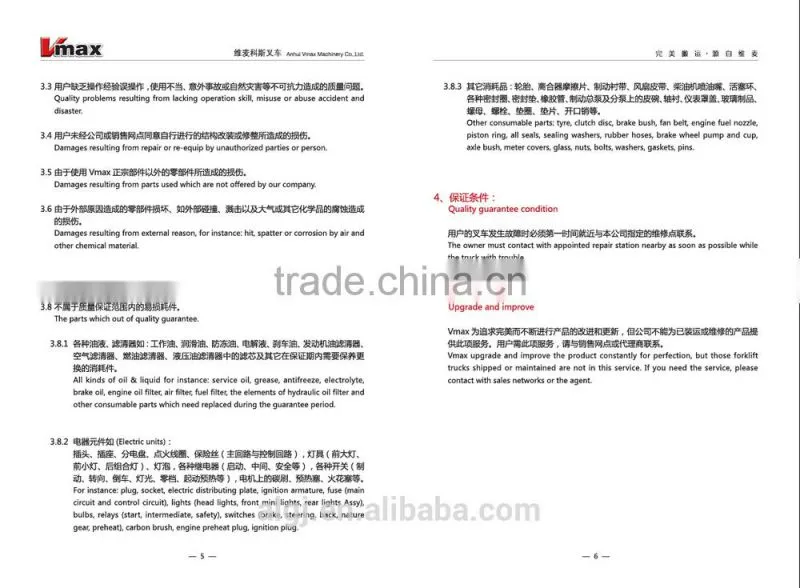

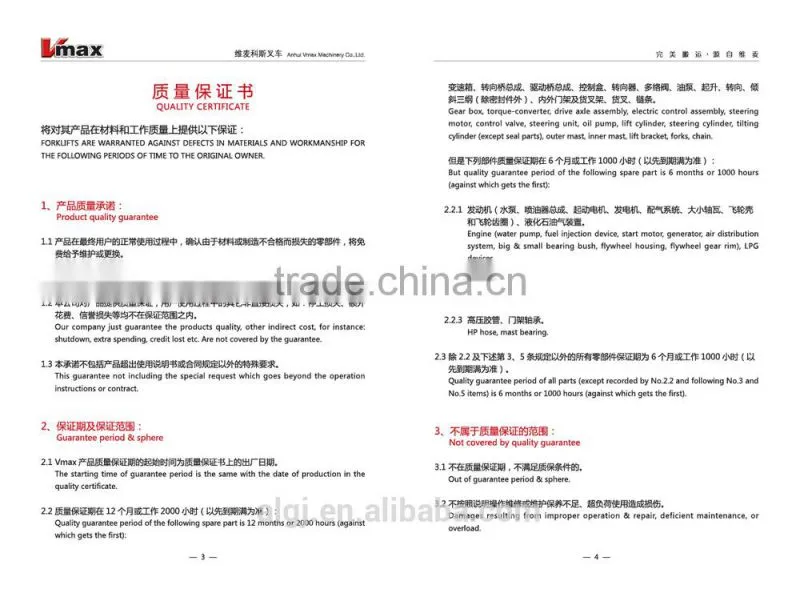

one year warranty
