Home > Products > CONSTRUCTION MACHINERY > CPCD50 5ton VMAX diesel forklift truck from the biggest China forklift production base HEFEI

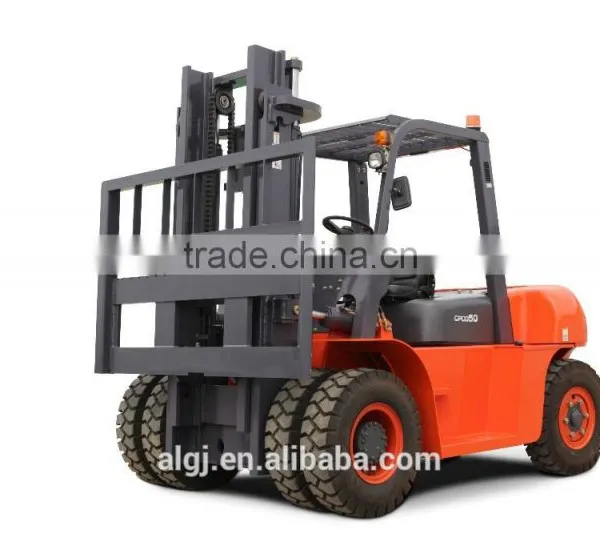

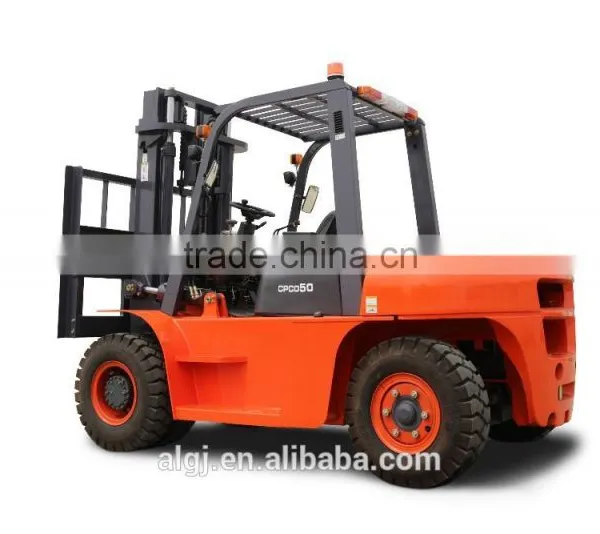

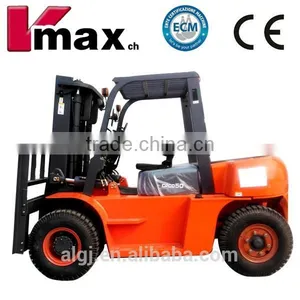

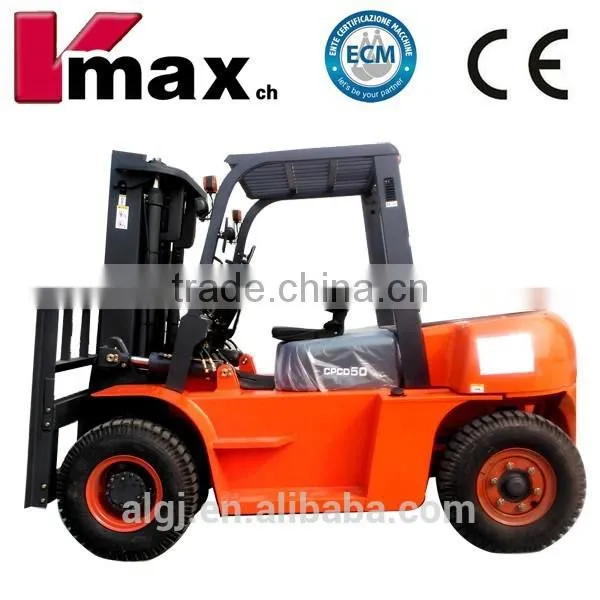

CPCD50 5ton VMAX diesel forklift truck from the biggest China forklift production base HEFEI

FOB Price

USD $14,700 - $14,700 / Set

1 Set(Min.Order)

Product Details

Condition:	New	Place of Origin:	Anhui, China	Brand Name:	OEM, HEFEI local brands: VMAX, HELI, JAC, HECHA, CHERY etc...
Model Number:	CPC50/CPCD50	Type:	Powered Pallet Truck	Power Souce:	Diesel Engine
Rated Loading Capacity:	5000kgs	Max. Lifting Height:	6000mm	Min. Lifting Height:	3000mm
Fork Length:	1220mm 1370mm 1520mm 1820mm 2450mm	Fork Width:	150mm	Overall Dimensions:	3440mm1995mm2450mm
Certification:	CE SGS ISO	After-sales Service Provided:	Engineers available to service machinery overseas

High performance famous brand China made forklift, 5ton diesel VMAX Forklift for sale!

Product Description

General		Manufacturer					Vmax
	1	Model					FD50	FD60	FDD70
	2	Rated capacity			kg	kg	5000	6000	7000
	3	Load center			mm	mm	600
	4	Gearbox change speed type					Hydraulic
	5	Power type					Diesel
	6	Tire type		Front/Rear			Pneumatic
	7	Wheels		Front/ Rear			Dual front wheels.4/2
Dimensions	8	Lift height			mm	mm	3000
	9	Free lift height			mm	mm	205	210	215
	10	Fork size		LWT	mm	mm	1220x 150x55	1200x 150x60	1200x 150x65
	11	Mast tilt angle		Fwd/Revs	deg	deg	6/12
	12	Fork outside spread Min/Max			mm		300/1700
	13	Overall length (without fork)			mm	mm	3472	3592
	14	Overall width			mm	mm	1995
	15	Mast height fork lowered			mm	mm	2500
	16	Overall height fork raised			mm	mm	4429
	17	Overall height (overhead guard)			mm	mm	2420
	18	Turning radius (outside)			mm	mm	3300	3450
	19	Load distance (centerline of front axle to front face of forks)			mm	mm	590		595
	20	Wheel base			mm	mm	2250
	21	Tread		Front	mm	mm	1470
	22			Rear	mm	mm	1700
	23	Min. Under-clearance (full load / no load )		Bottom of mast	mm	mm	160/200
	24			Bottom of frame	mm	mm	190/230
Performance	25	Speed	Travel speed	With load	km/h	km/h	26
	26			Without load	km/h	km/h	28
	27		Lifting speed	With load	mm/sec	km/h	370	330	320
	28			Without load	mm/sec	km/h	550	500	500
	29	Max. Drawbar pull			KN	KN	>21
	30	Max. Gradeability			%	%	>=20
	31	Tread	Front		MM		1470
	32		Rear		MM		1700
	33	Transmission	Type				(hydraulic)
	34		Shift	FWD/BWD			2-2
Weight	35	Self weight			kg	kg	8000	8640	9350
Tyre	36	Front	Size	Front			8.25-15-14PR
	37	Rear		Rear			8.25-15-14PR
	38	Brake	Brake	Service			Hydraulic-Foot pedal
	39			Parking			Mechanical-Hand lever
Transmission	40	Transmission	Battery	Voltage / Capacity		V/ AH	2-12V/80AH
	41		Internal combustion engine	Model for option			1. CHAOCHAI ; 2. ISUZU; 3. XICHAI
	42		Transmission	Type			Hydraulic
	43			shift ( Fwd/Rvs)			2/2

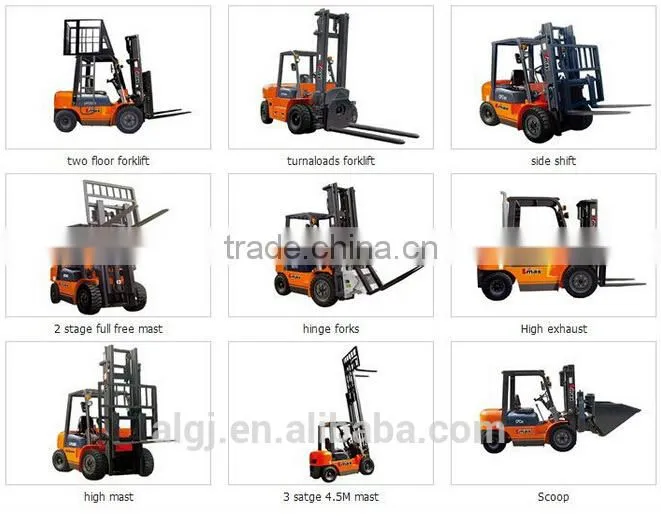

ATTACHMENT:

Packaging & Shipping

Our Services

one year warranty

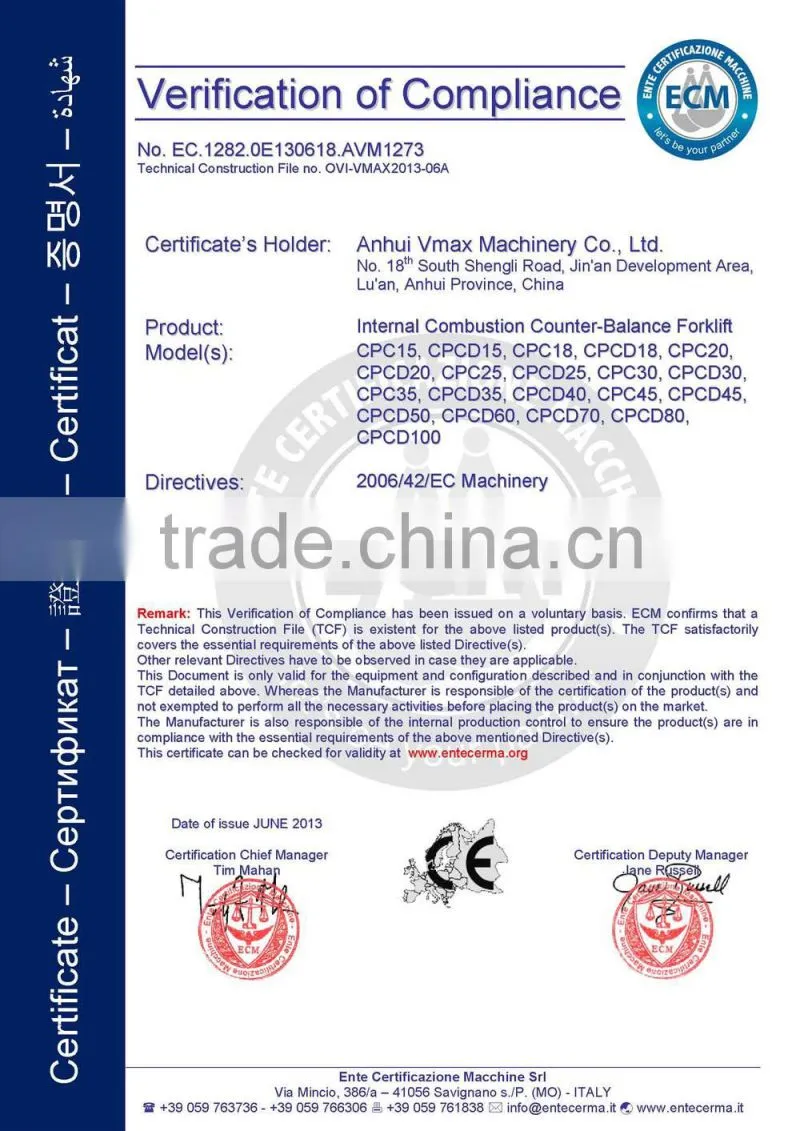

CE CERTIFACATES
