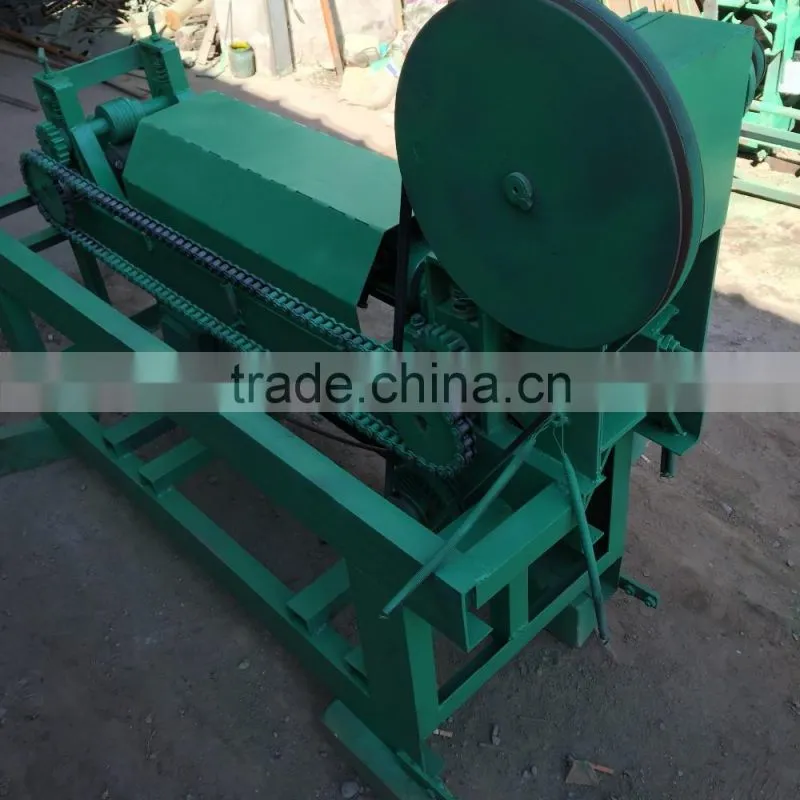

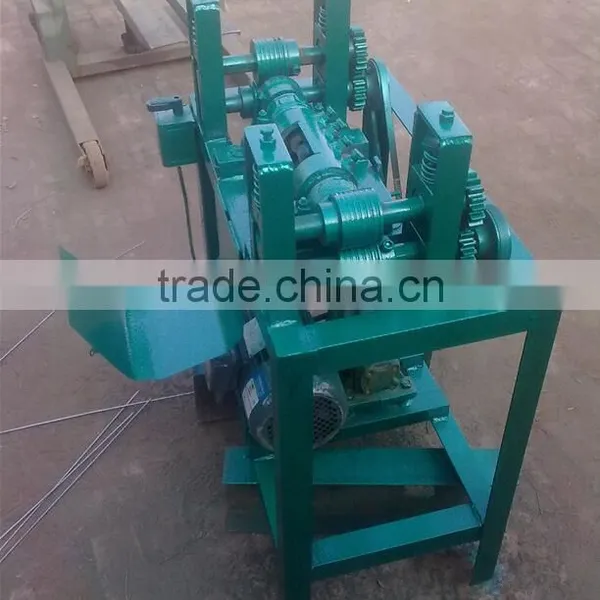

Dia(3mm-12mm) Automatic wire straightener machine
Material :
Wire straighting and cutting machine can straight and cut stainless steel wire, aluminum wire, cold-drawing wire and steel wire.
Diameter:
The wire diameter of rebar straightening machine is from 1.0 to 3.0mm.
Length:
The length could be adjusted according to customers's requirements.
Advantages:
neat cutting mouth, less error and good functions.
Specifications:
|
Model
|
1.0-3.0 |
2-5 |
3-6 |
4-8 |
4-12 |
5-12 |
wire diameter |
1.0-3.0mm |
2.0-5.0mm |
3.0-6.0mm |
4.0-8.0mm |
4.0-12mm |
5-12mm |
Cutting length |
30-2000mm |
30-6000mm |
30-6000mm |
200-6000mm |
200-6000 |
600-12000mm |
Cut error |
+/- 1mm |
+/- 1mm |
+/- 1mm |
+/- 1mm |
+/- 1mm |
+/- 10mm |
Speed |
25m/min |
30m/min |
30m/min |
35m/min |
30m/min |
45m/min |
Straight motor |
1.5kw |
1.5kw |
2.2kw |
4.0kw |
7.5 |
11kw |
Cut motor |
0.75kw |
0.75kw |
0.75kw |
3.0kw |
4.0 |
4kw |
Overall size |
1.7x0.4x0.8m |
1.2x0.4x0.9m |
1.2x0.5x1.1m |
7.3x0.6x1.2m |
8x0.8x1.3m |
2.1x0.7x1.3m |
Weight |
130KG |
150KG |
180KG |
650KG |
1000KG |
1200KG |
