Stainless Steel Wire Mesh Reverse Dutch Weave Filter Screen Belt
US$ 0.8 - 8
MOQ: 30 Square Meters
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Material:
Other, Black Wire Mesh, AISI304, AISI 304 L, AISI 316, AISI 316 L etc
Type:
Weave Wire Mesh
Payment & Shipping
Payment Methods:
Port of Shipment:
xingang
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Anping Factory 304 304L 316 316L 200 Micron Stainless Steel Wire MeshesUS$ 1 - 5MOQ: 100 Square Meters -
Wholesale Customized Good Quality Razor Barbed Wire Mesh FenceUS$ 600 - 600MOQ: 1 Ton
-
Aviary Cage Wire MeshUS$ 6 - 15MOQ: 1000 Square Meters
-
Plastic Warning MeshUS$ 0.15 - 1.85MOQ: 30 Kilometers
-
Plastic Flat MeshUS$ 0.15 - 1.85MOQ: 30 Kilometers
Place of Origin
Hebei, China
Material
Other, Black Wire Mesh, AISI304, AISI 304 L, AISI 316, AISI 316 L etc
Type
Weave Wire Mesh
Application
Filters
Weave Style
Dutch Weave
Wire Diameter
0.15-0.45mm
Technique
Woven
Model Number
PP extruder using
Brand Name
RQL

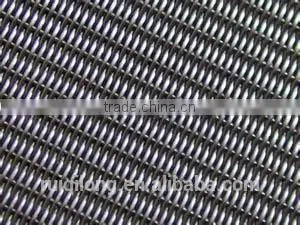

stainless steel wire mesh reverse dutch weave filter screen belt
stainless steel mesh belt extruder screen belt

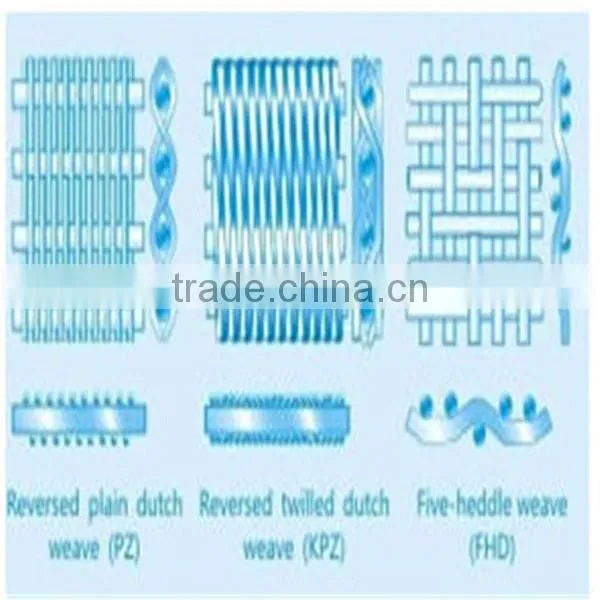

1.Introduction
Reverse Dutch weave stainless steel wire mesh/cloth offers finer filtration and finds popular application in petroleum, chemical, food, pharmacy and other fields.
2. Material can be available
Stainless steel wire: AISI304, AISI 304 L, AISI 316, AISI 316 L etc.
3. Coil length
10m, 15m, 15.24m, 20m, 30m,30.5m
4. Coil width:
97, 127, 133, 159, 225, 0.61m(2'),0.9144m(3'),1.22m(4')
5. Package:
waterproof paper, paper carton, wood cage, etc.
6. Specification
| mesh | wire diameter(mm | weight (kgs/m2) |
| 72*15 | 0.45*0.55 | 4.8 |
| 120*16 | 0.35*0.45 | 4.485 |
| 132*18 | 0.35*0.45 | 4.95 |
| 152*24 | 0.30*0.45 | 4.635 |
| 160*17 | 0.27*0.45 | 3.777 |
| 170*17 | 0.27*0.45 | 3.9586 |
| 180*19 | 0.26*0.45 | 4.0 |
| 200*40 | 0.17*0.27 | 2.17 |
| 260*40 | 0.15*0.25 | 2.09 |
| 325*40 | 0.13*0.24 | 1.95 |

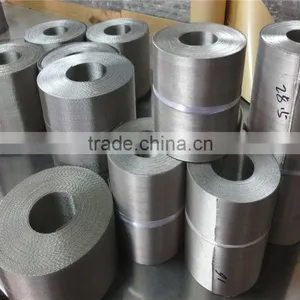

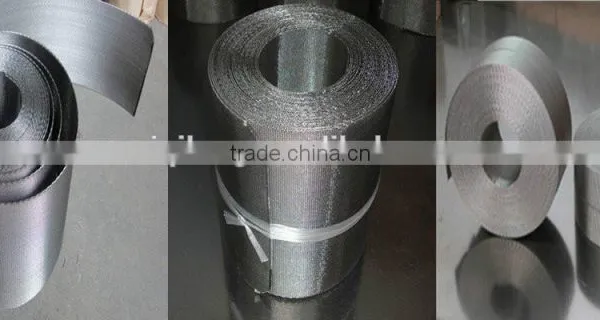

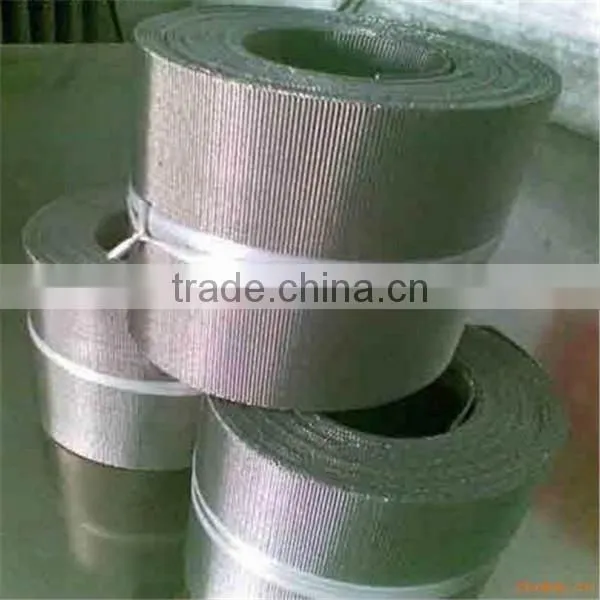

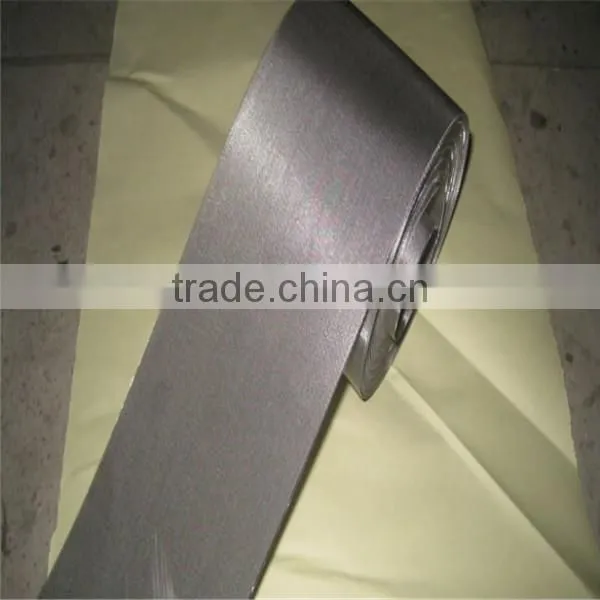

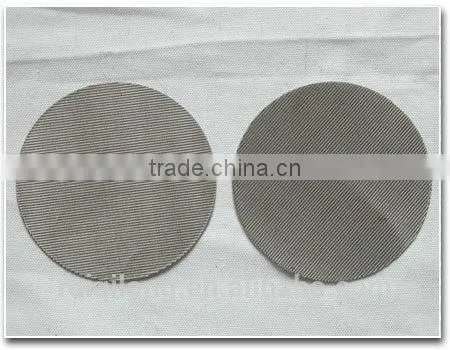

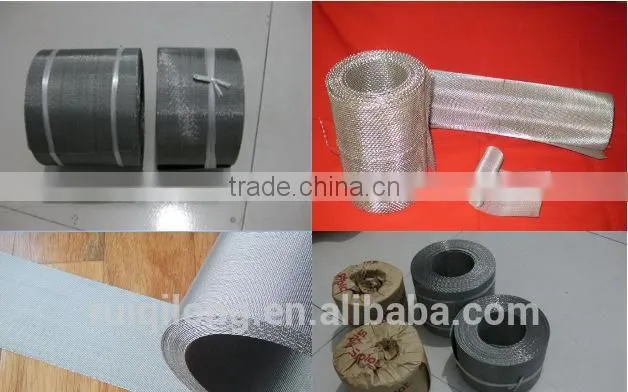

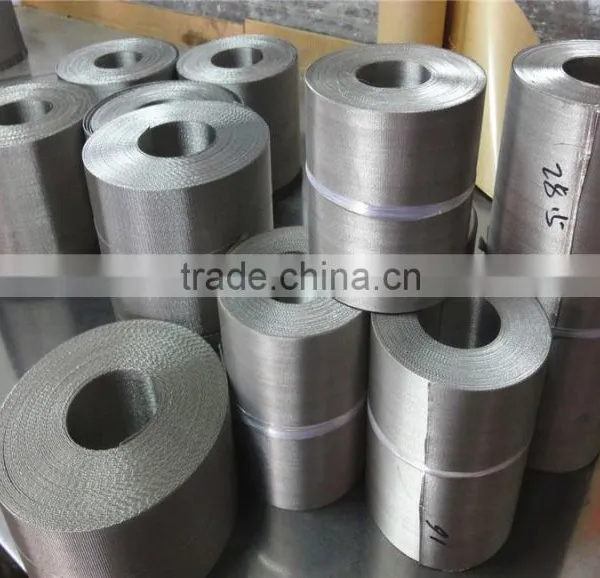

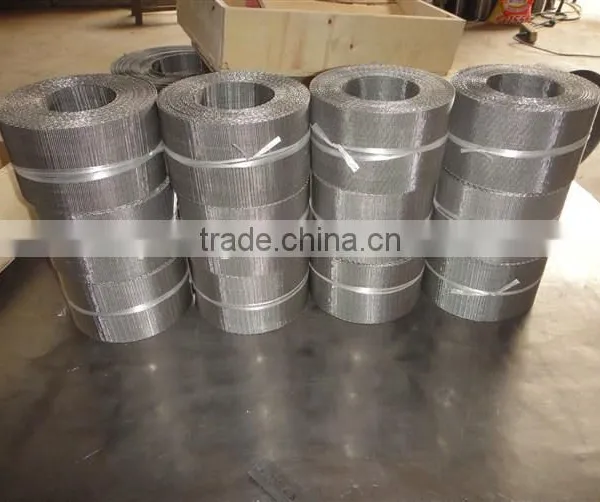

7. Pictures
