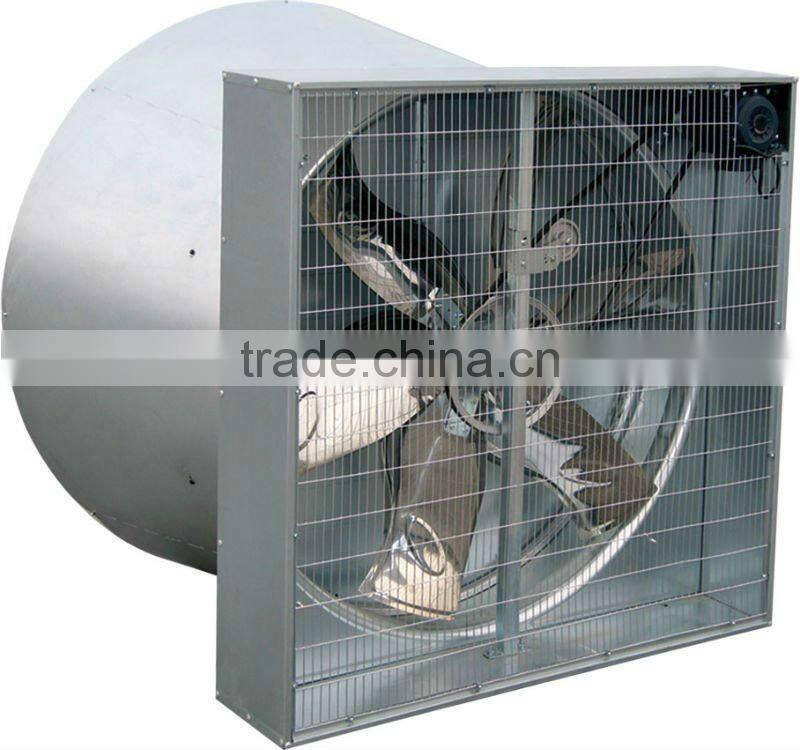

High Quality Exhaust Fan for Broiler House/ Butterfly Cone Fan

High Quality Exhaust Fan for Broiler House/ Butterfly Cone Fan thumbnail-1
High Quality Exhaust Fan for Broiler House/ Butterfly Cone Fan thumbnail-2
High Quality Exhaust Fan for Broiler House/ Butterfly Cone Fan photo-1
High Quality Exhaust Fan for Broiler House/ Butterfly Cone Fan photo-2
US$ 150 - 180 MOQ: 10 Sets
Key Specifications
Get Latest Price
Electric Current Type:
AC
Mounting:
Wall Fan
Blade Material:
Stainless Steel
Contact Supplier Request Quote Chat Now
Qingzhou Bangchi Machinery Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Electric Current Type AC
Mounting Wall Fan
Blade Material Stainless Steel
Place of Origin Shandong, China
Brand Name Bangchi
Model Number BC-1380
Voltage 380v
Power 1.1kw
Air Volume 51020m3/h
Speed 439rpm
Certification Other, SGS
After-sales Service Provided Overseas third-party support available

 BC Series Butterfly type cone fan





High quality exhaust fan for broiler house/ butterfly cone fanHigh quality exhaust fan for broiler house/ butterfly cone fan





The component of butterfly type cone fan







Big belt pulley (centrifugal fan): it used by aluminum magnesium alloy, which is new aerial material, light and high-strength with beautiful shape.



Motor: motor be specially used for high-performance fan, with updated design for automatic regulating device, the belt doesn’t need manual adjustment. Chinese motor ,Siemens. We can support motor according to customer’s choice and using for local voltage and frequency.



Opening system : The special and advanced centrifugal system assures the opening angle of the shutter so that air flow can be kept on the smooth high level. It is made of superior quality nylon and a little fiberglass, also it is used rivet, which is made of cuprum so that they will not be antirust. It can ensure the shutter opens with the angle of 90 degree when the whole machine runs the rails.



V-belt : A -type belt, imported from Korea.



Blades : The mirror face stainless steel blades, the whole machine goes through balance test. Blades are formed by stamping while the angle is suitable, which can make the biggest airflow as well as the smallest noise and not out of shape nor rupture during long using term. Additionally, each set of blades must be tested by balance system before sold, which will make sure the stable and smooth work for the fan.

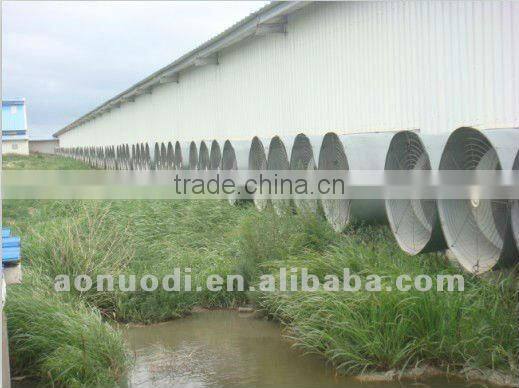

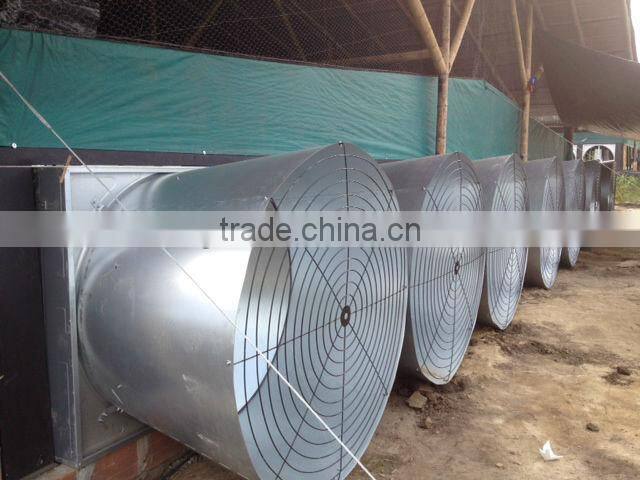

High quality exhaust fan for broiler house/ butterfly cone fan

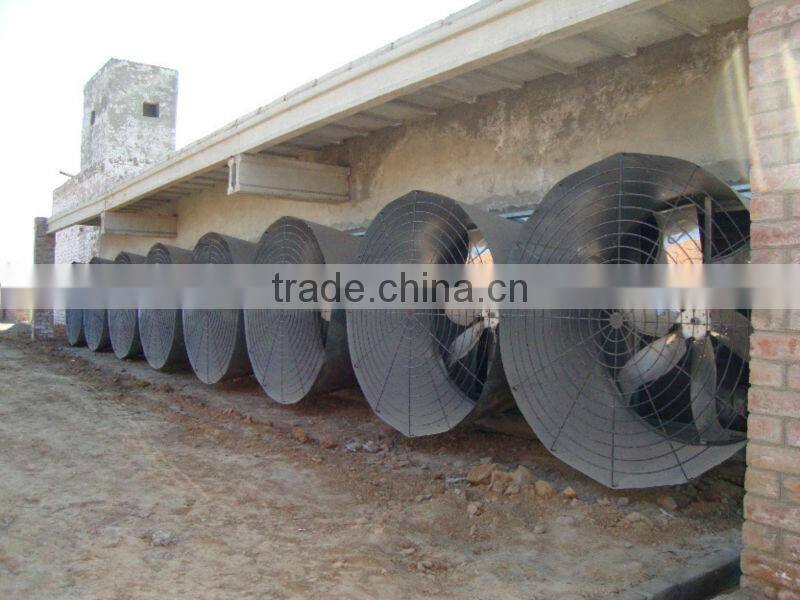

High quality exhaust fan for broiler house/ butterfly cone fan







Model& specifications

Diameter of fan blade (mm)

Rotation speed of fan blade (rpm)

Air volume(m³/h)

Noise

(db)

Input power (w)

Rated voltage (v)

High (mm)

Width (mm)

BC-1380 (50")

1250

439

51020

≤70

1100

380

1380

1380
