Home > Products > Ventilation Fan System > High Quality Ventilation Fan for poultry/Butterfly cone fan
High Quality Ventilation Fan for poultry/Butterfly cone fan
- 1000 Set / Sets per Month
- Qingdao
- T/T
Product Details
Electric Current Type: | AC | Mounting: | Wall Fan | Blade Material: | Stainless Steel |
Place of Origin: | Shandong, China | Brand Name: | Bangchi | Model Number: | BC-1380 |
Voltage: | 380V | Power: | 1.1kw | Air Volume: | 44000m3/h |
Speed: | 1400r/min | Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Air Ventilation Exhaust Fans /Butterfly cone fan
Specifications

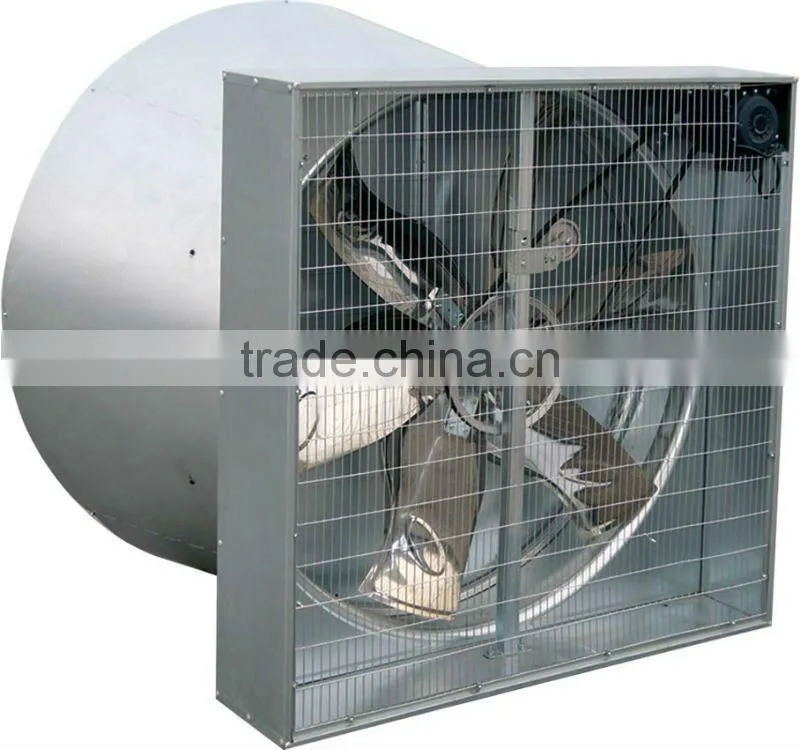

Butterfly Cone Fan
1) Frame material: Galvanized steel
2) Blade material: Stainless steel
1) Frame material: Galvanized steel
2) Blade material: Stainless steel
3) Shutter material: Galvanized steel
4) Drive: Belt drive
Advantages
1) This fan adopts advanced frontward open system,butterfly type,with two semicircle shutter
doors,wind resistance is small,good air-tightness and high efficiency.

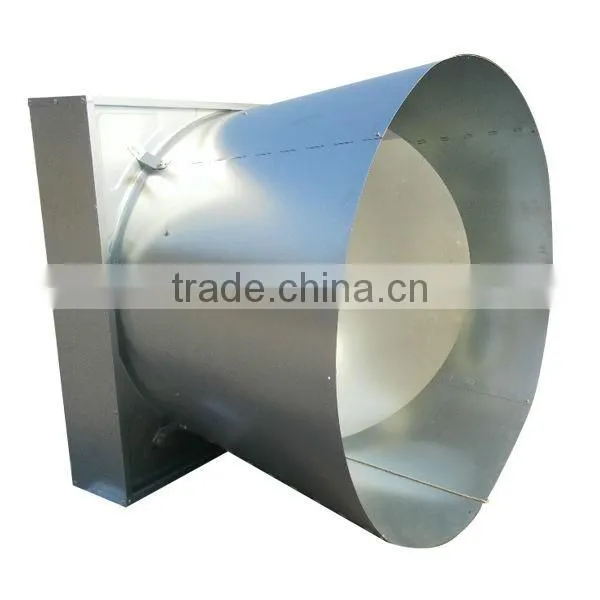

2) For the cone part,adopt new design,plugtype connection,not need many bolts and nuts for
tightening as before,intensity of labor is reduced,also improve aesthetic results of fan.
3) The belt tensioner device made of aluminum-magnesium alloy,non-
deforming,long service life.This device make the belt inside tight up,effective for avoiding the
distortions in reverse direction,so prolong the belt life time, saving cost.
4) When the two semicircle shutter doors close,the rubber sealing ring make good airtightness.
In different condition,not run all the fan,the air could pass through the space of stop fan,
use this type fan,could avoid this problem.Ensure air pass through the evaporative cooling pads
or air inlet only,so that greatly improve the fan efficiency, (as compared with different
type of same size fan,improve efficiency 15-20%)
5) The fan motor installed on the top left corner,effective protection of the motor. Avoid wind
resistance.And the motor panel connection is reasonable, fixing fan frame more stronger.
Model | Diameter of fan blade (mm) | Rotation speed of fan blade (rpm) | Air volume (m³/h) | Noise (db) | Input power (w) | Rated voltage (v) | High (mm) | Width (mm) |
BC-1380 (50") | 1250 | 439 | 51020 | ≤70 | 1100 | 380 | 1380 | 1380 |
