Help CenterBC Series Evaporative Water Cooling Pad for Poultry
Related Products
-
7090/5090 Refrigeration Cooling PadUS$ 70 - 80MOQ: 20 Cubic Meters -
Evaporative Cooling Pad for Poultry FarmUS$ 70 - 80MOQ: 20 Cubic Meters
-
Humidification Evaporative Cooling Pad for Poultry and Green HouseUS$ 70 - 80MOQ: 20 Cubic Meters
-
Evaporative Cooling Pad for Poultry FarmUS$ 70 - 80MOQ: 20 Cubic Meters
-
Evaporative Cooling Pad for Poultry and Green HouseUS$ 70 - 80MOQ: 20 Cubic Meters
Specifications
cooling pad1) high cooling efficiency
2) corrugated fiber paper
3) different colors and sizes provided, frames optional
Evaporative water cooling pad for poultry farm/house and greenhouse
Available Size 7090/5090
Note: Size could be made according to the customer.

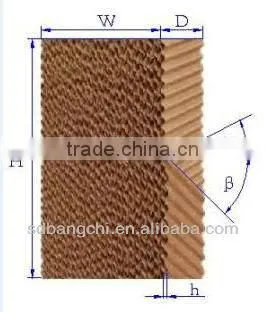

H: Height W: Width D: Depth h: corrugation height
α: corrugated sheet angle (1) β: corrugated sheet angle (2)
Pad 7090 |
Pad 5090 |
|
H (mm) |
1500, 1800, 2000 |
1500, 1800, 2000 |
W (mm) |
600, 300 |
600,300 |
D (mm) |
100, 150, 200,300 |
100,150,200,300 |
h (mm) |
7 |
5 |
α (*) |
45 |
45 |
β (*) |
45 |
45 |
Sizes of Evaporative Cooling Pad can be made by buyers request
Evaporative cooling pad Features:
1) Corrugated paper with the spatial crossing linking technology, high absorbability, high water resistant, anti-mildew and long service life.
2) Large evaporation area, cooling efficiency as high as 80%.
3) The product absorbs water naturally, with fast speed of pervasion and lasting efficency. One drop of water can spreaded within 4~5 seconds. The natural absorption speed is 60~70mm/5minutes, as 200mm/1.5 hours, which has reached international standard.
4) The product does not contain phenol which is irritant for skin. It is safe, energy saving, environment-friendly, economic and durable.
5) Galvanized sheet, aluminum and stainless steel frames optional.
Working Principle
The cooling pad has thin water film on its surface of corrugated fiber paper. When the hot air from outside pass through the paper, water on the thin film absorb heat in the air and will be evaporated into vapor, then the cool air enter into houses, so that the temperatur and humidity are controlled.
BC Series evaporative cooling pad with frame:

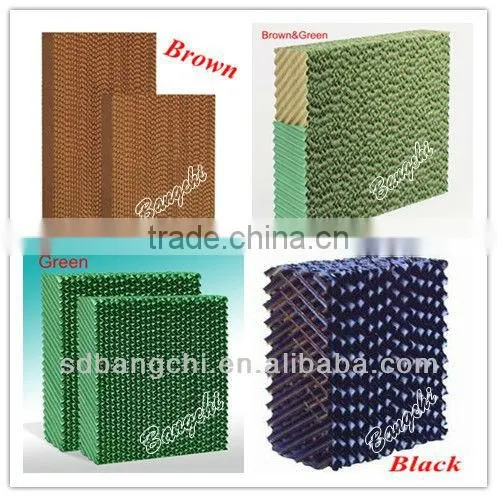

BC series cooling pad: Four colors can be chosen
BC Series evaporative cooling pad production line
