High Quality Poultry Farm Ventilation Equipment/Ventilation System
(BRAND:BANGCHI)

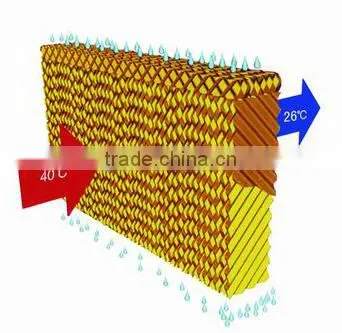

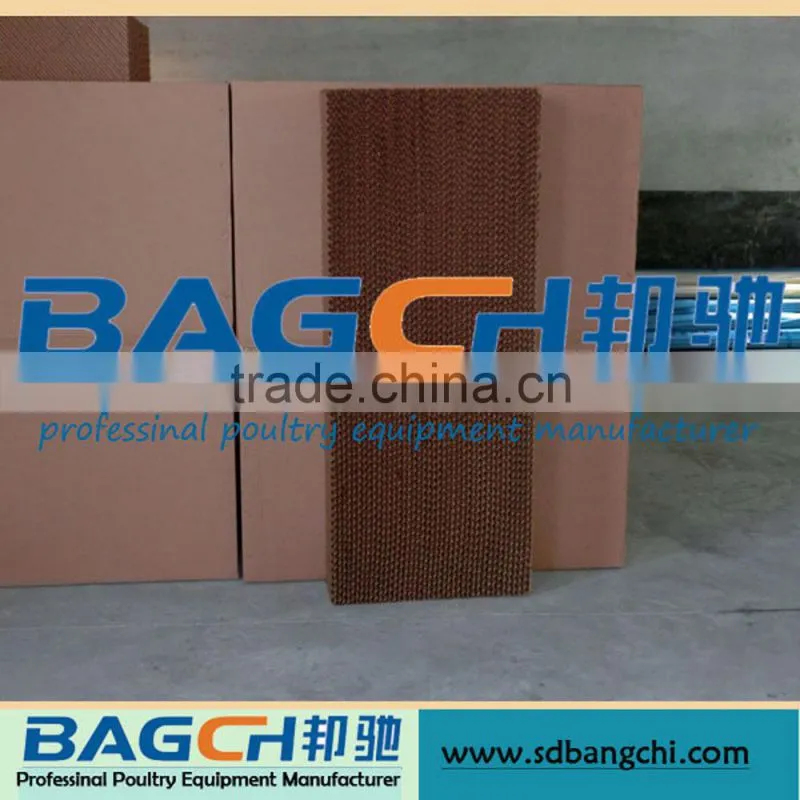

Poultry Farm Ventilation Equipment-Cooling Pad Work Principle
When the water cross the cooling pad, the water become water film on the surface of the pad.
The water film exchange heat with the passing air and evaporate into the air. As the principle of
evaporative cooling, controlling the temperature and humidity through modifying humidifying
volume and the ventilation size.
Available Size:
Note: Size could be made according to the customer.
H: Height W: Width D: Depth h: corrugation height
α: corrugated sheet angle (1) β: corrugated sheet angle (2)
|
Pad 7090 |
Pad 5090 |
H (mm) |
1500, 1800, 2000 |
1500, 1800, 2000 |
W (mm) |
600, 300 |
600,300 |
D (mm) |
100, 150, 200,300 |
100,150,200,300 |
h (mm) |
7 |
5 |
α (*) |
45 |
45 |
β (*) |
45 |
45 |

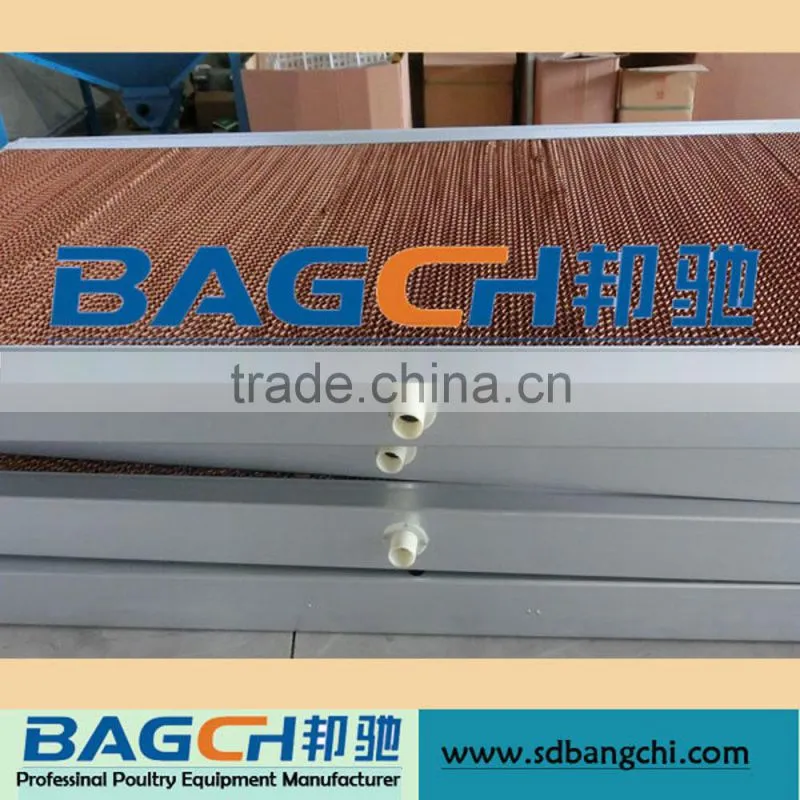

Aluminum frames cooling pads features:
1) Made of hydrophobicity kraft paper
2) No surfactant or harmful chemicals, like phenol
3) Absorbs water naturally
4) Water absorbing capacity is 60-70mm/5min or 200mm/1.5h
5) Cooling efficiency is by up to 80%
6) No harmful to health during installation and application
7) Belonging to green and environmental products
8) Approved RoHS certified
9) Different clours for customers' choice, brown, black edge, green
10) OEM service is available

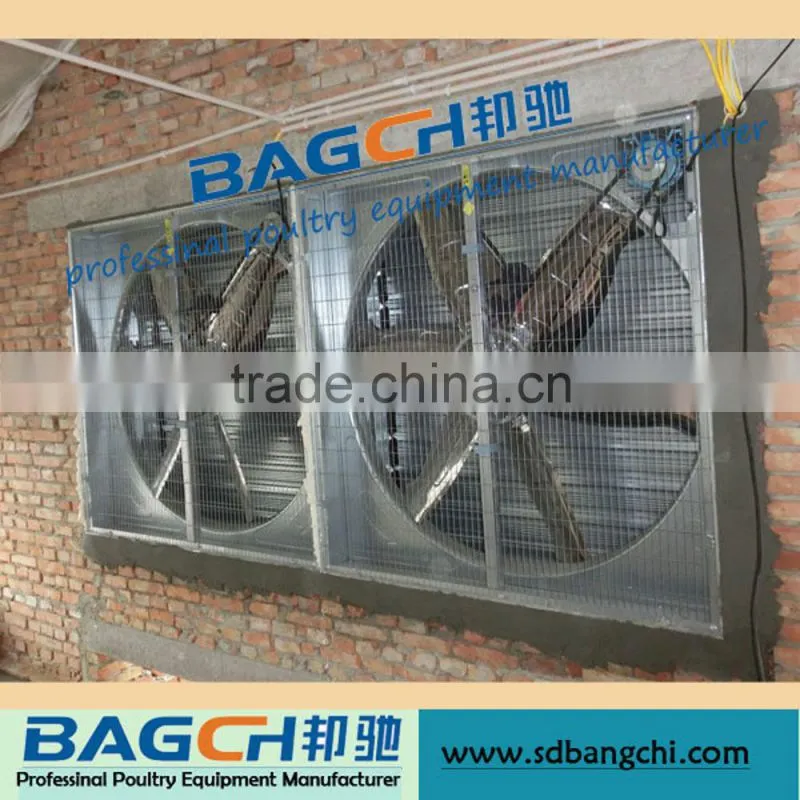

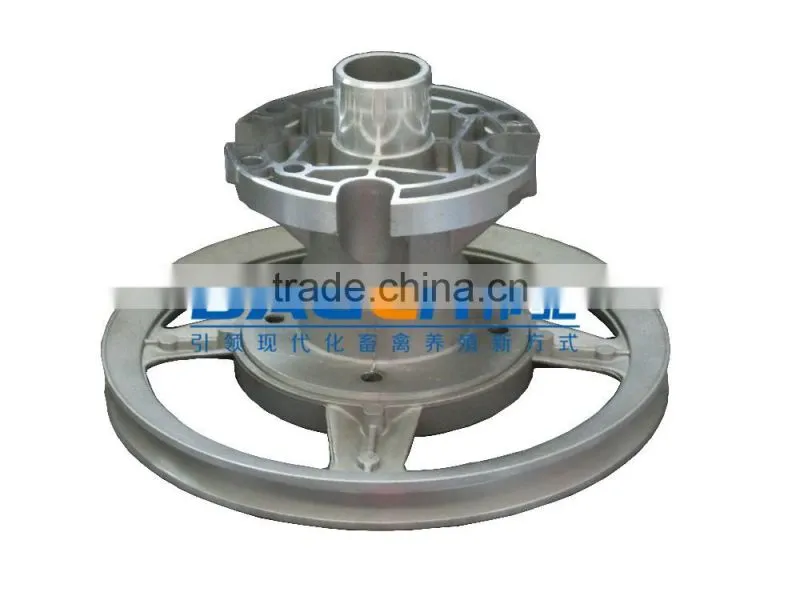

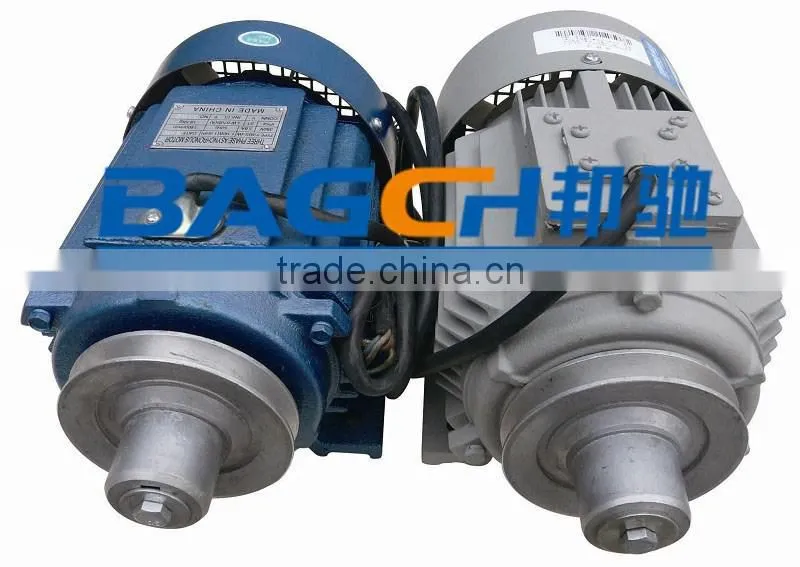

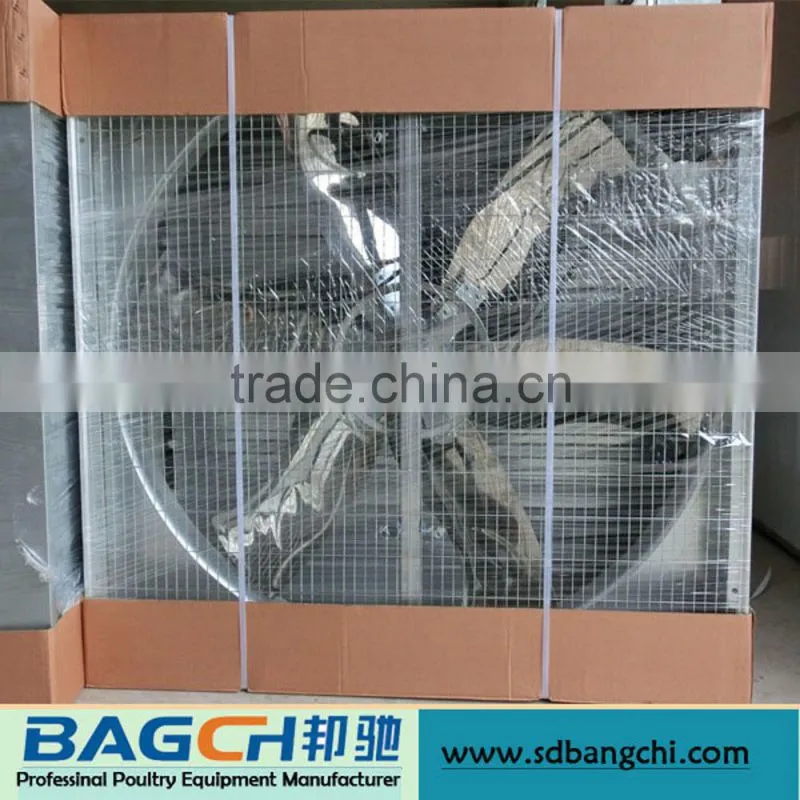

Poultry Farm Ventilation Equipment-Exhaust Fan
1.Frame use hot galvanized steel material,which can rejuct rust problem.

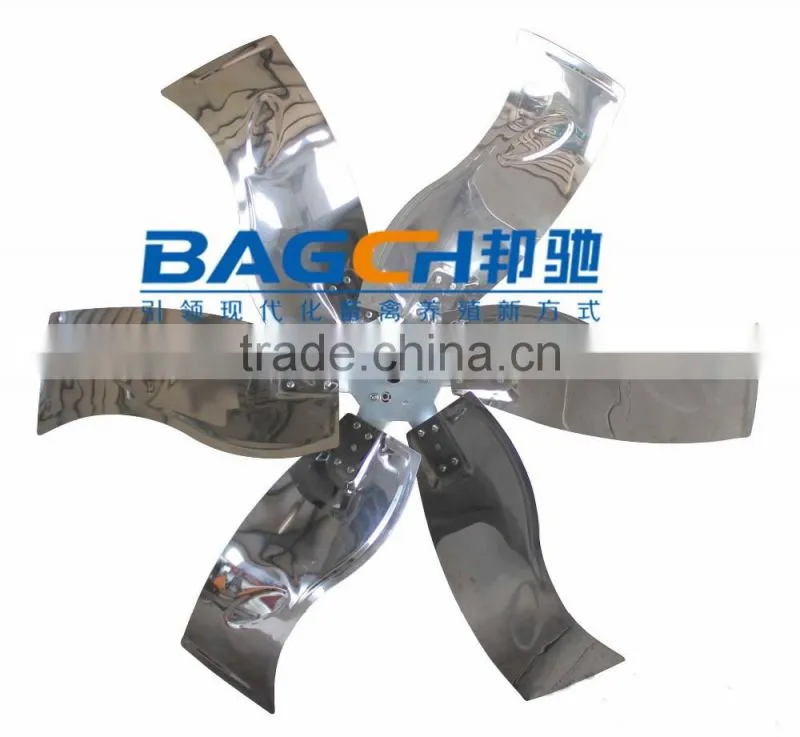

2.High strength stainless steel blade,6 pieces
3.We are manufacturer which not only ensure the quality,but competitive price.
4.Size:1380*1380*450mm and 1000*1000*450mm
5.Open way:use push-pull parts to open shutter
|
|
|
|
|
Detail Parameter:
Model |
Diamater Blades(mm) |
Air Volume |
Power |
Outer size(mm) |
Voltage Frenquency
|
BC-1000 |
1000 |
35000m^3/h |
0.75Kw |
1100*1100*450 |
380v 50hz
|
BC-1250 |
1250 |
42000m^3/h |
1.1Kw |
1380*1380*450 |
380v 50hz |
aluminum frames cooling pads packed in carton

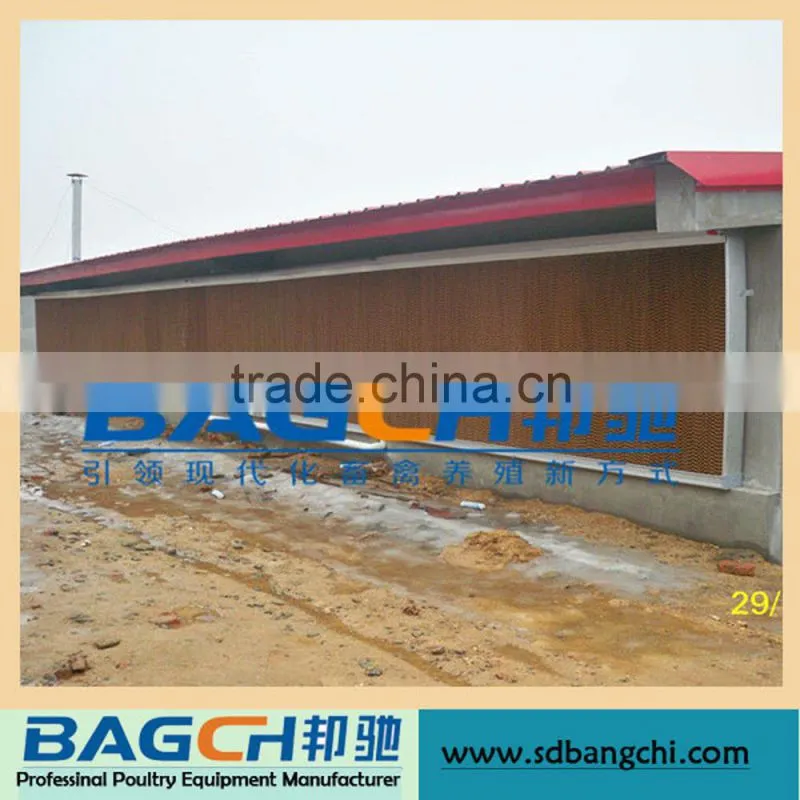

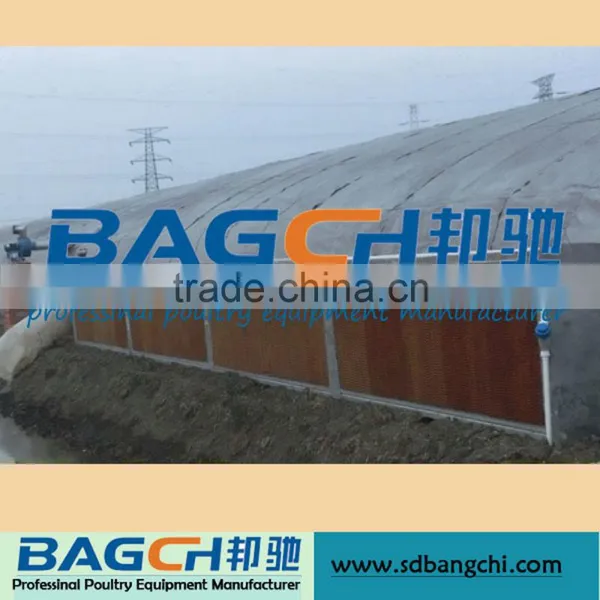

Installation Sample:
We can send engineer to guide install cooling pad
Our company has concentrate on poultry equipment for many years.We already gain
many reliable customer with high quality,competitive price and superior
service.We sure any of your inquiry will get us prompt reply and highly
attention.Welcome you contact us here.You can trust us!!
1.Q:what should we do if we want whole poultry equipment?
A:please tell us the poultry house size(length&width) and the chicken quantity you will raise
2.Q:What's the material of drinking pipe and support pipe?
A:drinking pipe material is pp,square and round type.
support pipe material is hot galvanized steel.
3.Q:How long is your guarantee time?
A:one year
