Home > Products > Lab Facility > High Volume Small Axial Fan China Made
High Volume Small Axial Fan China Made
- 500 Piece / Pieces per Month
- Qingdao
- T/T Credit Card PayPal
Product Details
Electric Current Type: | AC | Mounting: | Free Standing | Blade Material: | Stainless Steel |
Place of Origin: | Shandong, China | Brand Name: | Shuangyi,Fuyalide | Model Number: | BDZ,FZ40(35)--11,ST35--11 |
Voltage: | 380 V,50 HZ | Power: | 0.06~2.2 KW | Air Volume: | 2040~5300 |
Speed: | 960~1450 (r/min) | Certification: | CE, Other, CE, ISO9001/ISO14001 | After-sales Service Provided: | Overseas service center available |
Product Description
High Volume Small Axial Fan

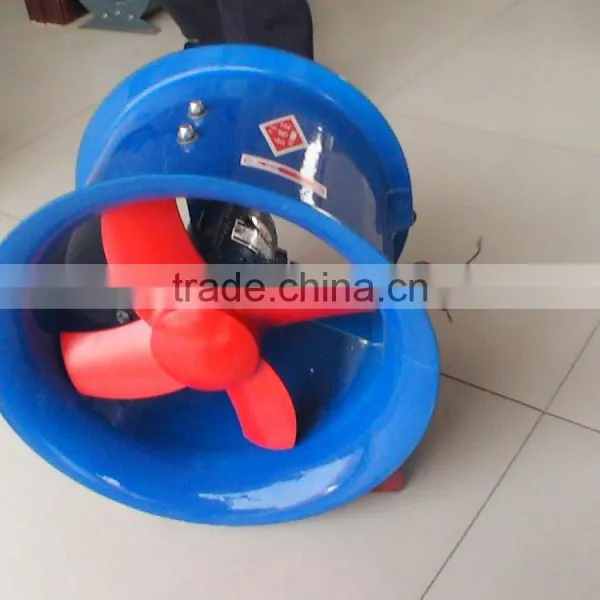

BDZ Axial Fan
- The BDZ glass fiber reinforced plastic axial flow ventilator is my factory independently designs the production the new air blower, this air blower up-to-date styling, the elegant appearance, the perform reliably, extremely easy to install. Is suitable in the Industrial and mining establishment, the store guesthouse, the hospital kitchen, the office, the laboratory as well as the living room and so on needs to carry on the indoor air conditioning and the elimination chemical etching gas and the mist and dust place.
- The BDZ air blower by the impeller, the cabinet (including support) and the electrical machinery is composed, the diameter is 400-600 millimeter three glass fiber reinforced plastic leaf blade inserting impeller direct attire on the electricity engine shaft, the connection is reliable, the movement is reliable. The cabinet assumes the garden tube, makes with the glass fiber reinforced plastic, with the support connects when together, installment and service prohibits the collision extruding, by against aberration. This air blower may the continuous running.
The Technical Parameter Table List.
Model(No) | Impeller Diameter | Rev | Wind Quantity | Electric Machinery | Noise(dB) | Full pressure(Pa) | |
Model | Power(KW) | ||||||
40 | 400 | 1400 | 2040 | AO2-7114 | 0.25 | 53 | 98 |
45 | 450 | 1450 | 4080 | Y801-4 | 0.55 | 56 | 98 |
50 | 500 | 1450 | 4700 | Y801-4 | 0.55 | 58 | 98 |
55 | 550 | 1450 | 5300 | Y801-4 | 0.55 | 59 | 98 |
55T | 550 | 960 | 3520 | Y90S-6 | 0.75 | 54 | 98 |
60 | 600 | 960 | 5240 | Y90S-6 | 0.75 | 56 | 98 |
The BDZ Parameter
machine Number | Rotational speed(r/min) | Flow(m3/h) | Press completely(Pa) | Power(kW) |
4 | 2900 | 5376-3584 | 302-508 | 1.1 |
4.5 | 2900 | 7655-5103 | 383-643 | 2.2 |
5 | 2900 | 10500-7000 | 473-794 | 3.0 |
5.6 | 2900 | 14752-9834 | 593-996 | 5.5 |
6.3 | 1450 | 10502-7001 | 188-315 | 1.5 |
7.1 | 1450 | 15032-10022 | 238-400 | 2.2 |
8 | 1450 | 21504-14336 | 303-508 | 4.0 |
960 | 14237-9491 | 133-223 | 1.5 | |
9 | 1450 | 30618-20412 | 383-643 | 7.5 |
960 | 20271-13514 | 168-282 | 2.2 | |
10 | 1450 | 42000-28000 | 473-794 | 15 |
960 | 27807-18538 | 207-348 | 5.5 | |
11.2 | 1450 | 59007-39338 | 593-996 | 22 |
960 | 39067-26044 | 260-437 | 7.5 | |
12.5 | 960 | 54310-36027 | 324-544 | 11 |
720 | 40733-27155 | 182-306 | 5.5 |
ZHT35 Parameter
All Kinds of Axial Fans We Manufacture
Certificate
Contact Us
- Jinan Shuangyi Environment Engineering Co., Ltd.
- Contact nameWendy Qi
- Phone0086-531-88221053
- AddressC3, 2/F, North Building, Block C, Int'l Commercial Centre, Environmental Protection Science And Technology Park, High-Tech Zone
